• 19A01 MAIN FRAME, STABILIZER ARM & SHIELD ASSEMBLY - 6500 - 650

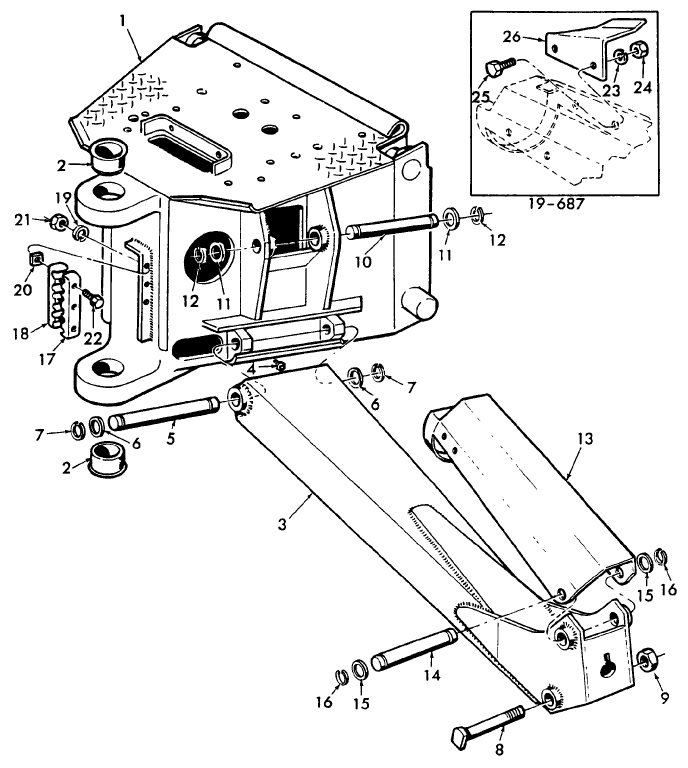

Double click on above image to view full picture

More Views

•

19A01 MAIN FRAME, STABILIZER ARM & SHIELD ASSEMBLY - 6500 - 650

Key	Product Name	Price	Qty
1	FRAME	$0.00	Out of stock.
2	BUSHING DRIVE	$320.00
3	ARM	$0.00	Out of stock.
4	NIPPLE LUBE (PKG of 10)	$12.50
5	PIN	$114.00
6	WASHER (PKG of 4)	$10.24	Out of stock.
7	RING, SNAP	$0.00	Out of stock.
8	PIN	$0.00	Out of stock.
9	NUT	$11.75
10	PIN	$93.10	Out of stock.
13	SHIELD	$0.00	Out of stock.
14	PIN	$146.00
17	NOT SERVICED	$0.00	Out of stock.
18	CLAMP	$8.90
19	WASHER LOCK (PKG of 10)	$1.90
20	NUT	$0.00	Out of stock.
21	NUT (PKG of 25)	$3.00
22	BOLT	$0.00	Out of stock.
	19A01 MAIN FRAME, STABILIZER ARM & SHIELD ASSEMBLY - 6500 - 650	$0.00	Out of stock.
	KIT	$0.00	Out of stock.
25	BOLT (PKG of 10)	$1.50
26	PLATE	$0.00	Out of stock.
26	PLATE	$0.00	Out of stock.
	BRACKET	$0.00	Out of stock.
	NUT (PKG of 20)	$7.40

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Frame Assy., Main, Includes Frame plus:

Product Description

Frame Assy., Main, Includes Frame plus:

Additional Information

Part Number	650-11747
Section	Backhoes
