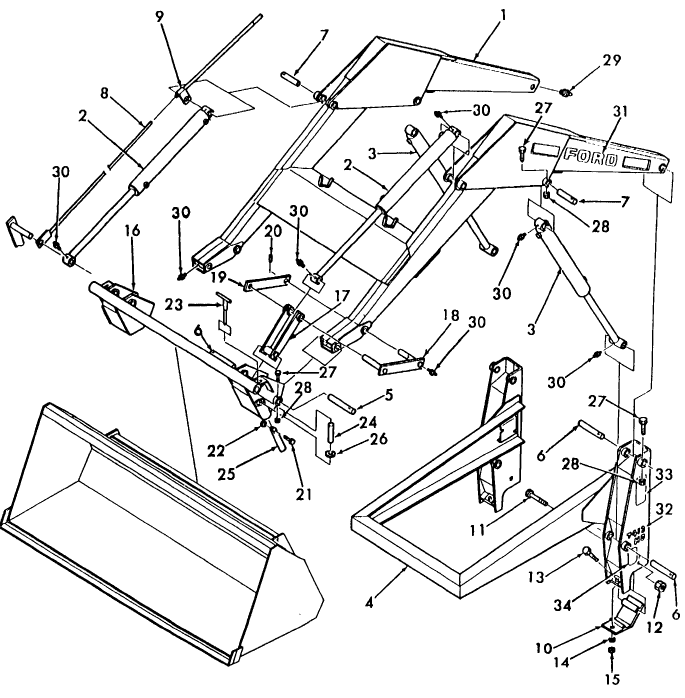

001 BOOM & SIDE FRAME ASSY.

Key	Product Name	Price	Qty
1	FRAME	$3,015.86	Out of stock.
1	BOOM	$0.00	Out of stock.
2	CYLINDER, BUCKET	$830.02	Out of stock.
3	CYLINDER	$760.00	Out of stock.
3	CYLINDER	$844.00	Out of stock.
3	CYLINDER	$939.26	Out of stock.
4	FRAME	$3,085.85	Out of stock.
4	FRAME	$0.00	Out of stock.
5	PIN	$43.80
6	PIN	$33.50
7	PIN	$63.00
8	ROD	$32.54	Out of stock.
9	TUBE, RIGID	$28.25
10	HINGE	$120.00
11	PROCURE LOCALLY	$0.00	Out of stock.
14	WASHER	$2.50
15	NUT (PKG of 5)	$19.50
16	BRACKET	$1,636.71	Out of stock.
17	LINK CONNECTING	$104.00	Out of stock.
18	LINK, CONNECTING	$134.00	Out of stock.
19	PLATE	$141.76
23	HANDLE	$330.00
24	SPRING (PKG of 2)	$143.50
25	PIN	$225.00
31	DECAL	$77.50
32	DECAL	$10.75
32	DECAL	$4.00
32	DECAL	$8.50
32	DECAL	$3.70
33	DECAL	$22.25
34	DECAL	$5.30
35	DECAL	$11.74	Out of stock.

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Boom Assy., Lift,, 7412 & 7412HD

Product Description

Boom Assy., Lift,, 7412 & 7412HD

Additional Information

Part Number	7413-SERIES-9158
