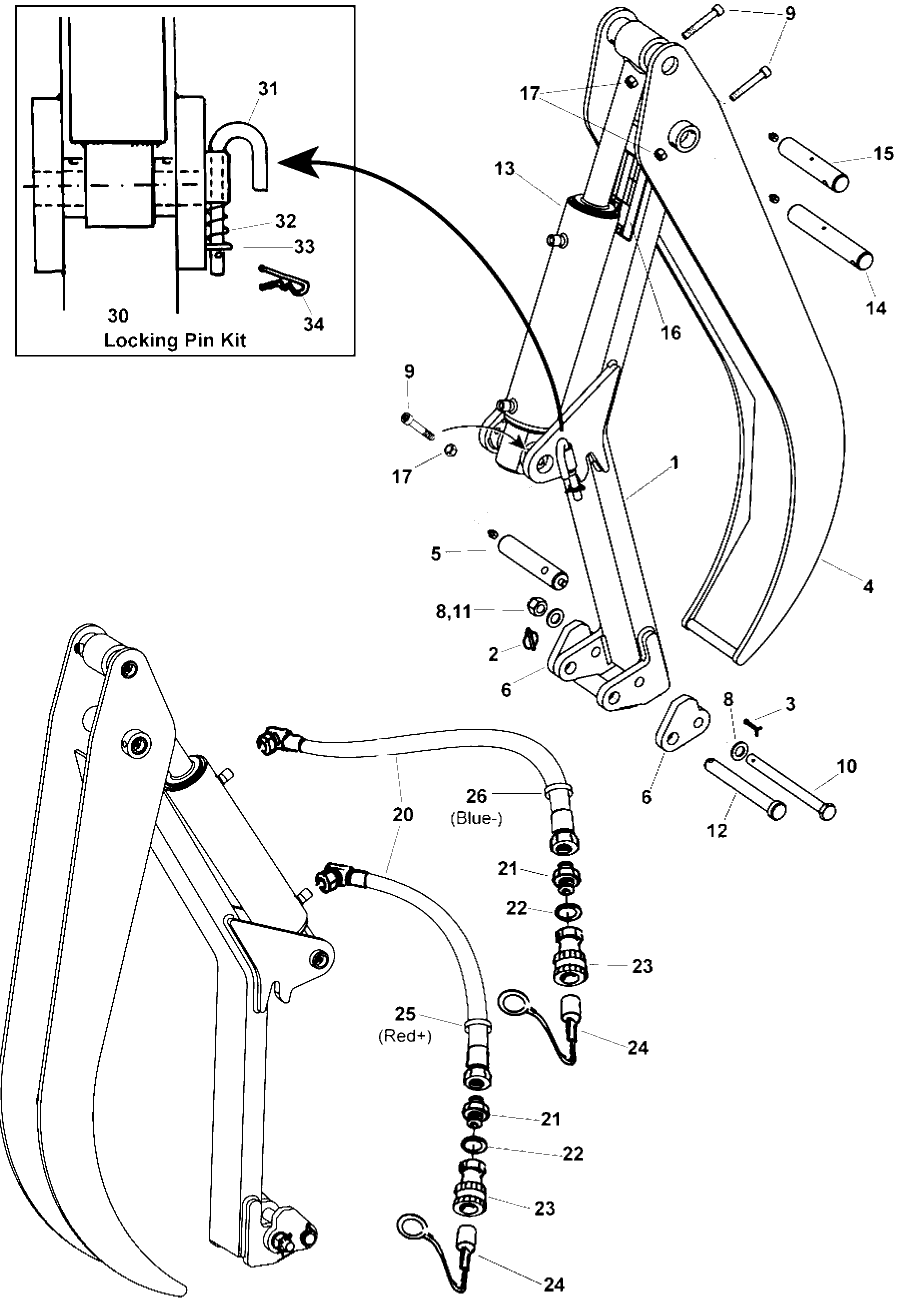

09-89 CATCH DEVICE - 717449006

Key	Product Name	Price	Qty
1	FRAME	$1,890.00
2	PIN LINCH	$1.89
3	PIN SPLIT (COTTER)	$1.63
4	ARM	$399.82
5	PIN	$77.54
6	PLATE	$0.00	Out of stock.
8	WASHER	$7.95
9	SCREW	$3.55
10	BOLT	$0.00	Out of stock.
11	NUT	$16.86
12	PIN	$0.00	Out of stock.
13	CYLINDER	$1,040.00
14	PIN	$75.41
15	PIN	$77.12
16	09-89 CATCH DEVICE - 717449006	$0.00	Out of stock.
17	NUT	$0.92
	KIT	$0.00	Out of stock.
20	HOSE	$155.00
21	HYD CONNECTOR	$12.00
22	WASHER	$4.90
23	COUPLING QUICK FEM	$70.65
24	COVER PROTECTIVE	$19.15
25	TIE CABLE	$2.95
26	TIE CABLE	$2.65
30	KIT REPAIR	$54.68
31	NOT SERVICED SEPARATELY	$0.00	Out of stock.

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Product Description

Additional Information

Part Number	820TL-564288
Section	Chassis/Attachments
