• 09 -05 DOUBLE FOLD LIFT SYSTEM AND PULL FRAME (38-1/2 (12 MAINFRAME) THROUGH 50-1/2 MODELS

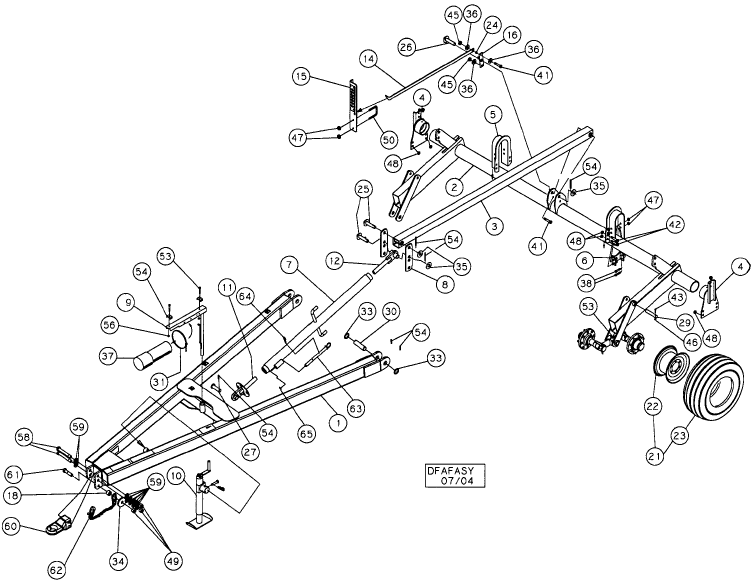

Double click on above image to view full picture

More Views

•

09 -05 DOUBLE FOLD LIFT SYSTEM AND PULL FRAME (38-1/2 (12 MAINFRAME) THROUGH 50-1/2 MODELS

Key	Product Name	Price	Qty
1	FRAME	$5,380.00	Out of stock.
1	FRAME HITCH	$4,990.00	Out of stock.
2	ROCKSHAFT	$11,823.50	Out of stock.
2	ROCKSHAFT	$15,585.30	Out of stock.
2	ROCKSHAFT	$4,800.00	Out of stock.
2	ROCKSHAFT	$17,665.70	Out of stock.
3	LINK CONNECTING	$2,136.00	Out of stock.
4	MOUNT	$537.60
5	CLAMP DRAWBAR	$487.20
6	BRACKET	$77.00
7	TURNBUCKLE	$4,015.20	Out of stock.
7	TURNBUCKLE	$4,216.80	Out of stock.
8	BAR ASSY.	$104.45
9	STAND	$382.65
12	SCREW ADJUSTMENT	$599.20
14	INDICATOR	$212.80
15	GAUGE	$320.00
16	BRACKET	$93.25
18	BUSHING	$41.65
21	WHEEL, LAND	$0.00	Out of stock.
21	WHEEL, LAND	$0.00	Out of stock.
21	WHEEL, LAND	$0.00	Out of stock.
21	WHEEL ASSY	$0.00	Out of stock.
22	WHEEL LAND	$401.67
22	WHEEL	$511.95
23	NOT SERVICED SEPARATELY	$0.00	Out of stock.
24	BUSHING	$20.25
25	PIN	$22.30
26	PIN	$24.50
27	PIN	$18.75
29A	PIN SPECIAL	$21.00
29B	PIN SPECIAL	$27.75
30	PIN SPECIAL	$53.50
31	CLAMP, HOSE (PKG of 5)	$15.40	Out of stock.
33	WASHER	$3.05
34	WASHER	$100.20
35	WASHER	$2.15
36	WASHER (PKG of 25)	$12.50	Out of stock.
37	TUBE	$24.40
38	BOLT (PKG of 5)	$6.55	Out of stock.
39	BOLT (PKG of 25)	$9.75
41	BOLT (PKG of 5)	$6.95	Out of stock.
42	BOLT (PKG of 10)	$20.20	Out of stock.
43	BOLT (PKG of 5)	$5.35	Out of stock.
44	NUT	$0.96
45	NUT LOCK (PKG of 10)	$4.00
46	NUT	$0.83	Out of stock.
47	NUT	$0.90
48	NUT, LOCK	$1.32	Out of stock.
49	NUT LOCK	$2.48
50	U-BOLT	$19.90
54	PIN (PKG of 5)	$42.00
55	CLAMP HOSE	$13.25
56	BOLT (PKG of 5)	$7.10	Out of stock.
57	NUT (PKG of 100)	$28.00	Out of stock.
58	BOLT	$38.00
59	WASHER	$0.00	Out of stock.
60	HITCH	$342.40
61	BOLT	$7.55
62	CHAIN	$341.60
63	PIN HITCH	$188.20
64	PIN, SPLIT (COTTER)	$0.00	Out of stock.
65	RING SNAP	$18.72

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

12 Mainframe

Product Description

12 Mainframe

Additional Information

Part Number	ST250-433979
Section	Chassis/Attachments
