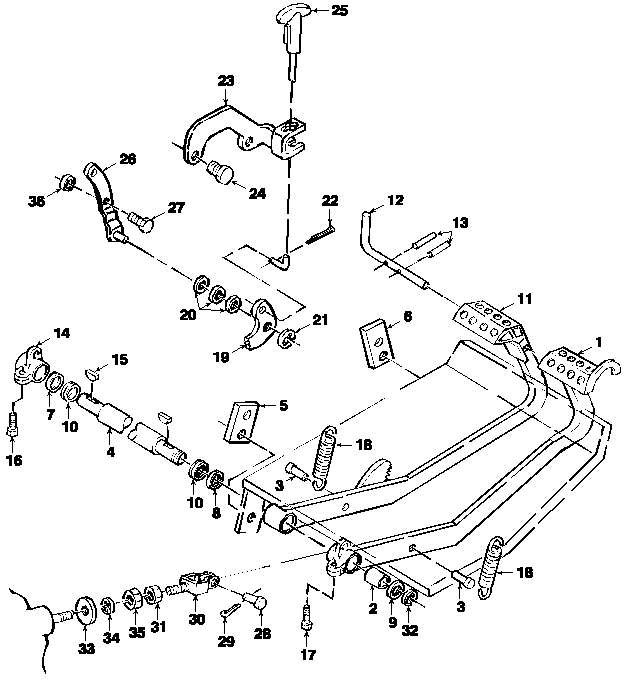

02B03 BRAKE CONTROLS, L/CAB

Key	Product Name	Price	Qty
1	PEDAL	$369.23	Out of stock.
2	BUSHING	$9.73	Out of stock.
3	PIN	$16.05
4	SHAFT	$129.38	Out of stock.
5	PROCURE LOCALLY	$0.00	Out of stock.
7	WASHER (PKG of 10)	$26.40
8	WASHER	$20.20	Out of stock.
9	WASHER (PKG of 10)	$84.50
10	SEAL (PKG of 2)	$11.60	Out of stock.
11	PEDAL	$0.00	Out of stock.
12	HANDLE	$0.00	Out of stock.
13	PIN LOCK (PKG of 20)	$89.00
14	LEVER	$19.63	Out of stock.
15	KEY WOODRUFF (PKG of 10)	$49.00
16	BOLT (PKG of 10)	$25.00
17	BOLT (PKG of 2)	$32.10
18	SPRING (PKG of 2)	$10.74	Out of stock.
19	PAWL	$24.68	Out of stock.
20	WASHER (PKG of 5)	$16.50
22	PIN SPLIT (COTTER) (PKG of 10)	$4.10
23	BRACKET	$118.00	Out of stock.
24	BOLT FLANGE (PKG of 2)	$65.70
25	BRAKE LEVER	$185.90
26	BRACKET	$0.00	Out of stock.
28	PIN CLEVIS	$8.40
29	PIN SPLIT (COTTER) (PKG of 20)	$2.20
30	CLEVIS	$55.10
31	NUT	$0.00	Out of stock.
32	RING SNAP (PKG of 10)	$39.00
33	WASHER (PKG of 5)	$42.25
34	WASHER (PKG of 5)	$15.50
35	NUT (PKG of 5)	$8.25
36	SPACER	$0.26
21	CIRCLIP (PKG of 20)	$16.80

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Pedal Assy., RH, Start Year: 07/01/1990

Product Description

Pedal Assy., RH, Start Year: 07/01/1990

Additional Information

Part Number	5030O-47231
