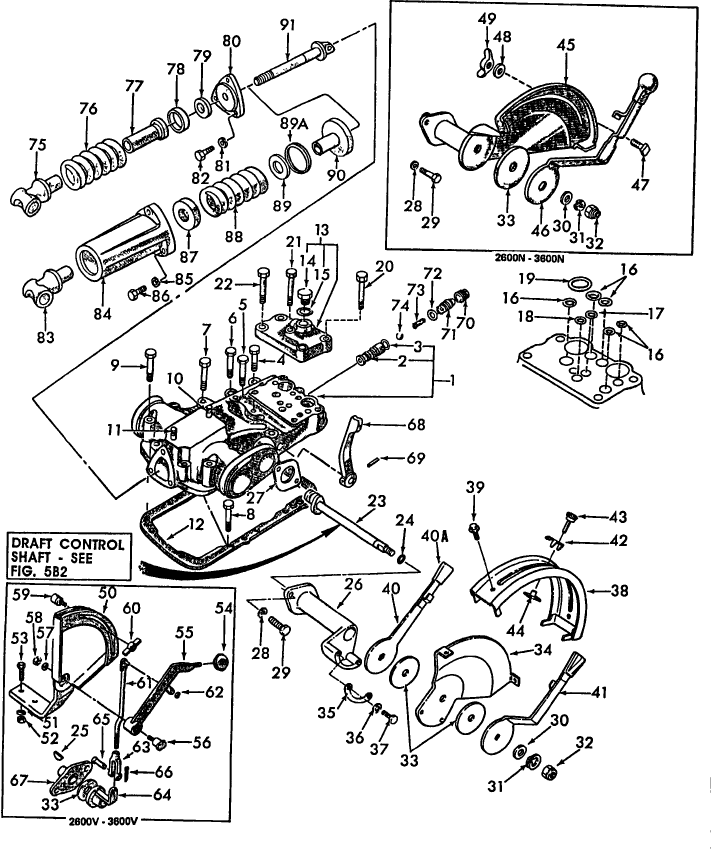

• 05A01 HYDRAULIC LIFT COVER & RELATED PARTS - 2600, 3600, 4600, 3900, 4100, 231, 531, 233, 333, 335, 515, 532, 420, 535

Double click on above image to view full picture

More Views

•

05A01 HYDRAULIC LIFT COVER & RELATED PARTS - 2600, 3600, 4600, 3900, 4100, 231, 531, 233, 333, 335, 515, 532, 420, 535

Key	Product Name	Price	Qty
1	COVER	$0.00	Out of stock.
1	COVER	$2,239.15
1	COVER	$0.00	Out of stock.
2	VALVE SEAT	$0.00	Out of stock.
2	SEAT	$3.83	Out of stock.
2	SEAT/SLOT	$0.00	Out of stock.
3	O-RING (PKG of 50)	$27.50
4	BOLT (PKG of 10)	$24.50
5	SCREW (PKG of 5)	$84.00
6	BOLT (PKG of 2)	$10.34
7	BOLT (PKG of 2)	$8.60
8	BOLT (PKG of 2)	$15.80
9	SCREW	$11.10
10	STUD	$69.75
11	PIN	$17.85	Out of stock.
12	GASKET	$3.10	Out of stock.
13	COVER	$233.01	Out of stock.
14	BOLT	$20.75
15	SEAL	$2.50
16	O-RING (PKG of 20)	$16.40
17	O-RING (PKG of 10)	$11.50
18	O-RING (PKG of 25)	$21.00
19	O-RING (PKG of 5)	$10.75
21	BOLT	$0.00	Out of stock.
22	BOLT	$0.00	Out of stock.
23	SHAFT	$78.76	Out of stock.
	SHAFT	$0.00	Out of stock.
	SHAFT	$141.00	Out of stock.
	SHAFT	$118.75	Out of stock.
24	O-RING (PKG of 2)	$8.60
25	KEY, WOODRUFF	$0.78	Out of stock.
26	SUPPORT	$108.02	Out of stock.
26	SUPPORT	$0.00	Out of stock.
27	GASKET	$0.00	Out of stock.
28	WASHER LOCK (PKG of 10)	$2.20
29	BOLT (PKG of 10)	$7.50
30	WASHER	$0.00	Out of stock.
30	WASHER (PKG of 10)	$1.70
31	SPRING COMPRESSION	$4.65
32	NUT	$0.00	Out of stock.
33	DISC (PKG of 5)	$55.00
33	DISC	$0.00	Out of stock.
33	WASHER	$22.83
34	PLATE	$20.81	Out of stock.
34	PLATE	$558.40	Out of stock.
35	SPACER (PKG of 5)	$228.75
36	WASHER LOCK (PKG of 10)	$1.90
37	BOLT (PKG of 10)	$5.50
38	SECTOR, TOOTHED	$0.00	Out of stock.
39	SCREW (PKG of 5)	$2.30
40	HANDLE	$163.00
40	HANDLE	$185.25
40A	KNOB	$13.74	Out of stock.
41	HANDLE	$195.53	Out of stock.
41	HANDLE	$89.06	Out of stock.
42	STOP	$26.90
43	KNOB	$14.60
44	NUT (PKG of 5)	$13.50
45	CONTROL	$0.00	Out of stock.
46	LEVER	$451.43
47	STOP (PKG of 2)	$19.22	Out of stock.
	RETAINER	$0.00	Out of stock.
48	WASHER (PKG of 25)	$1.50
49	NUT, WING (PKG of 10)	$18.10	Out of stock.
50	SECTOR, TOOTHED	$0.00	Out of stock.
52	NUT (PKG of 25)	$3.00
54	BALL (PKG of 2)	$49.50
55	LEVER	$0.00	Out of stock.
56	PIN	$0.00	Out of stock.
59	STOP	$21.80	Out of stock.
61	ROD	$0.00	Out of stock.
62	RING, SNAP	$0.00	Out of stock.
63	CLEVIS	$0.00	Out of stock.
64	ARM	$0.00	Out of stock.
65	PIN (PKG of 5)	$77.25
66	PIN SPLIT (COTTER) (PKG of 10)	$30.00
67	FLANGE	$0.00	Out of stock.
68	LEVER	$0.00	Out of stock.
69	PIN LOCK (PKG of 20)	$8.20
70	PLUG	$36.03	Out of stock.
71	HOUSING	$0.00	Out of stock.
72	O-RING	$0.00	Out of stock.
73	SPRING (PKG of 5)	$2.90	Out of stock.
74	BALL (PKG of 5)	$34.50
75	YOKE	$115.20	Out of stock.
76	SPRING	$0.00	Out of stock.
77	VALVE SEAT	$126.00
78	SEAL	$291.20
79	SEAL FELT (PKG of 5)	$33.00
80	PLATE	$151.06	Out of stock.
82	BOLT FLANGE (PKG of 2)	$64.40
83	YOKE	$221.95
84	HOUSING	$560.00
86	BOLT (PKG of 10)	$10.10	Out of stock.
86	BOLT	$35.25
87	SEAT	$22.50
88	SPRING	$0.00	Out of stock.
88	SPRING	$182.00
89	SHIM (PKG of 5)	$7.50
89	SHIM (PKG of 5)	$10.00
89	SHIM	$3.95
89A	SPACER	$25.00
90	SEAT, DRIVER	$73.97	Out of stock.
91	ROD	$0.00	Out of stock.

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Cover Assy., Hydraulic Lift, Includes: Cover & Ref. 2 & 3, Start Year: 01/01/1975

Product Description

Cover Assy., Hydraulic Lift, Includes: Cover & Ref. 2 & 3, Start Year: 01/01/1975

Additional Information

Part Number	3600NO-11196
Section	Hydraulic System
