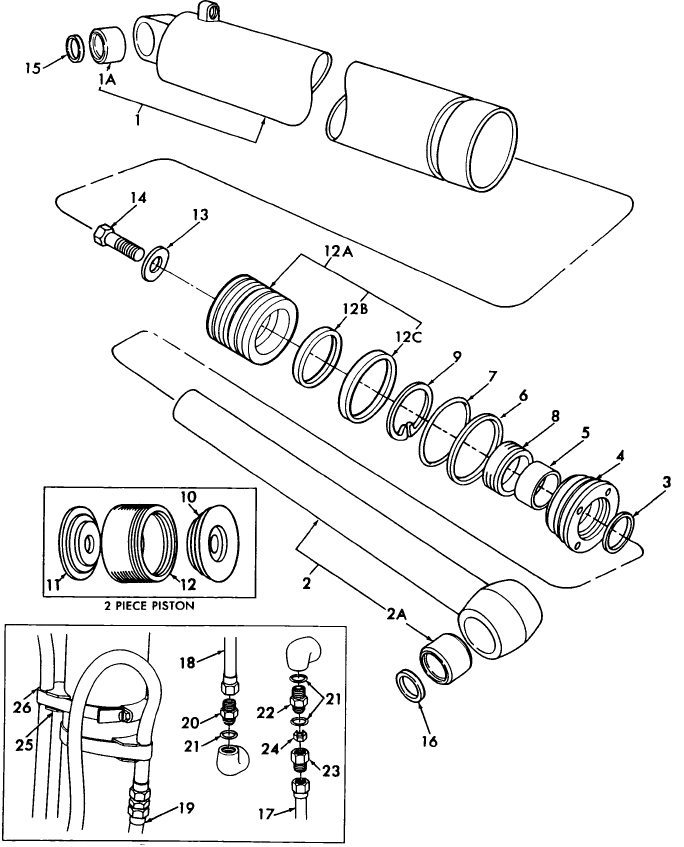

20H01 LIFT CYLINDER ASSEMBLY

Key	Product Name	Price	Qty
	CYLINDER	$0.00	Out of stock.
	CYLINDER	$0.00	Out of stock.
1	TUBE	$0.00	Out of stock.
1	TUBE	$0.00	Out of stock.
1A	BUSHING	$19.64	Out of stock.
2	ROD	$0.00	Out of stock.
2	ROD	$958.52	Out of stock.
2A	BUSHING	$0.00	Out of stock.
3	SEAL WIPER	$50.65
3	SEAL	$0.00	Out of stock.
4	GLAND	$137.82
4	GUARD	$0.00	Out of stock.
5	BEARING ASSY	$29.48
5	BEARING LINER	$97.20
6	WASHER	$22.00
6	WASHER	$8.25
7	O-RING	$0.00	Out of stock.
7	O-RING	$6.35
8	KIT SEALS	$235.65
8	GASKET	$46.55
9	RING	$0.00	Out of stock.
9	RING	$0.00	Out of stock.
10	NOT SERVICED SEPARATELY	$0.00	Out of stock.
12A	PISTON ASSY	$52.41	Out of stock.
12A	PISTON ASSY	$137.00
12B	SEAL	$0.00	Out of stock.
12B	SEAL RING	$28.85
12C	EXPANDER	$0.00	Out of stock.
12C	EXPANDER	$0.00	Out of stock.
13	WASHER	$14.52	Out of stock.
14	BOLT	$102.00
15	SEAL	$0.00	Out of stock.
16	SEAL	$11.26	Out of stock.
17	TUBE, RIGID	$0.00	Out of stock.
17	TUBE	$44.62	Out of stock.
18	TUBE	$0.00	Out of stock.
18	TUBE	$0.00	Out of stock.
19	HOSE	$200.86
20	CONNECTOR, HYD.	$0.00	Out of stock.
20	HYD CONNECTOR	$14.82
21	O-RING (PKG of 10)	$12.00
21	O-RING (PKG of 50)	$28.00
22	CONNECTOR, HYD.	$47.54
23	VALVE, HYDRAULIC	$14.33
24	PLATE	$24.01	Out of stock.
25	BLOCK	$0.00	Out of stock.
26	CLAMP	$2.30
26	CLAMP	$11.35
	KIT, REPAIR	$165.04
	KIT REPAIR	$178.00
	PINION BEVEL	$90.13
	KIT	$400.00
	SEAL	$0.00	Out of stock.

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Cylinder Assy., 12 Ft. (3.7m), Includes: Ref. 1 thru 12

Product Description

Cylinder Assy., 12 Ft. (3.7m), Includes: Ref. 1 thru 12

Additional Information

Part Number	545A-4325
Section	Backhoes
