• 1.65.3 BRAKE MECHANISM AND INTERNAL LINKAGE

Double click on above image to view full picture

More Views

•

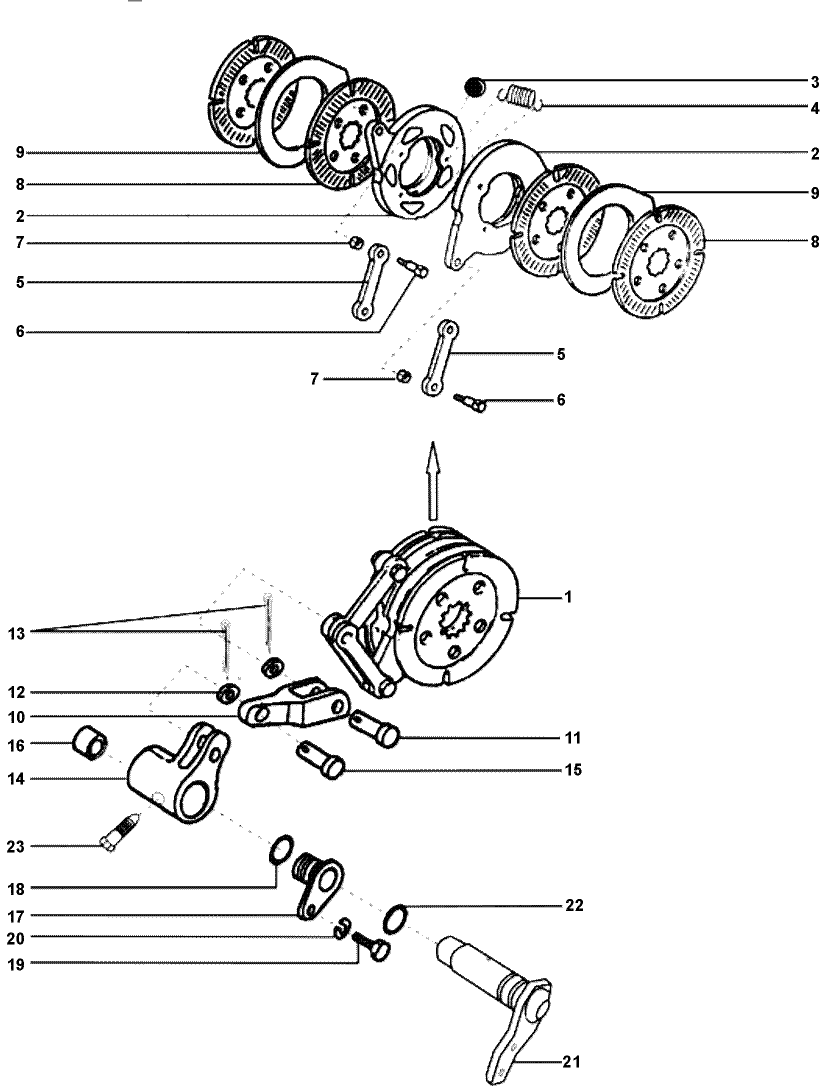

1.65.3 BRAKE MECHANISM AND INTERNAL LINKAGE

Key	Product Name	Price	Qty
1	BRAKE ASSY.	$267.00	Out of stock.
2	BRAKE DISC	$77.24	Out of stock.
3	BALL (PKG of 2)	$24.00
4	SPRING (PKG of 2)	$31.20
5	LEVER	$22.95
6	PIN (PKG of 5)	$28.00
7	NUT (PKG of 5)	$19.50
8	BRAKE DISC	$112.00
9	BRAKE DISC	$51.55
10	LINK	$61.25
11	PIN	$9.20
12	WASHER	$2.10
13	PIN SPLIT (COTTER) (PKG of 10)	$1.60
14	LEVER	$9.85
15	PIN	$19.75
16	BUSHING	$0.00	Out of stock.
17	SUPPORT	$163.75
18	O-RING (PKG of 10)	$42.50
19	BOLT	$1.27
20	WASHER, LOCK	$0.61	Out of stock.
21	PIN	$29.00
22	O-RING	$0.00	Out of stock.
23	BOLT (PKG of 5)	$61.50

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Brake Assy. (Consists of Items 2-7)

Product Description

Brake Assy. (Consists of Items 2-7)

Additional Information

Part Number	TT60A-552855
Section	Hydraulic System
