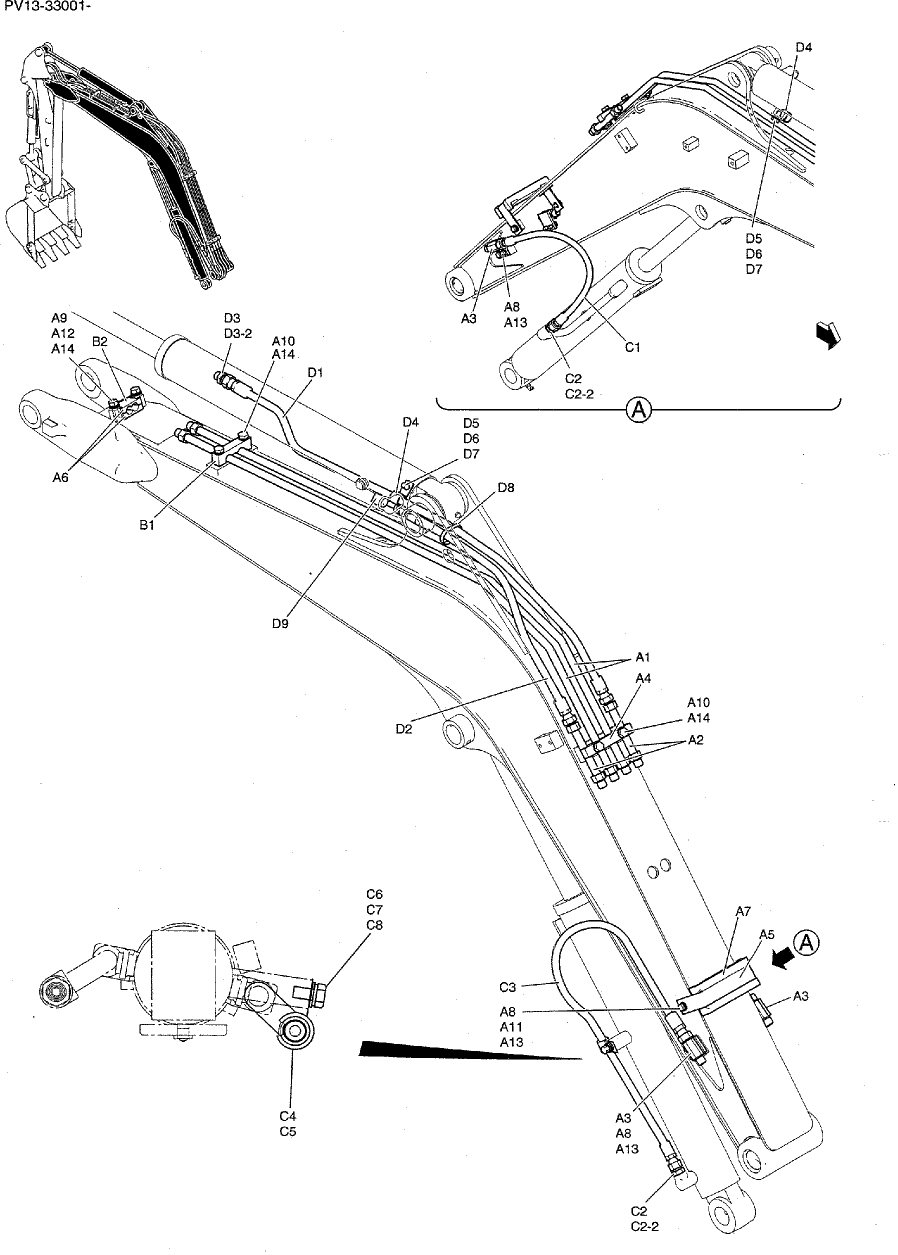

03-002(01) HYD LINES, BOOM 2.15M

Key	Product Name	Price	Qty
	03-002 HYD LINES, BOOM 2.15M	$0.00	Out of stock.
A1	TUBE	$0.00	Out of stock.
A2	TUBE	$0.00	Out of stock.
A4	CLAMP	$201.75
A5	03-002 HYD LINES, BOOM 2.15M	$0.00	Out of stock.
A6	RUBBER	$5.00
A7	RUBBER	$24.00
A8	SCREW (PKG of 2)	$1.68
A9	SCREW (PKG of 5)	$8.50
A10	SCREW (PKG of 2)	$3.50
A11	WASHER (PKG of 2)	$0.44
A12	WASHER (PKG of 2)	$1.34
A13	WASHER LOCK (PKG of 5)	$0.15
A14	WASHER LOCK (PKG of 2)	$0.96
	03-002 HYD LINES, BOOM 2.15M	$0.00	Out of stock.
B1	CLAMP	$40.70
B2	PLATE	$23.05
	03-002 HYD LINES, BOOM 2.15M	$0.00	Out of stock.
C1	HOSE	$82.00
C2	HYD CONNECTOR	$18.50
C2-2	O-RING (PKG of 2)	$8.00
C3	HOSE	$93.40
G4	CLAMP	$7.65
C5	BUSHING	$9.05
C7	SCREW (PKG of 2)	$3.50
	03-002 HYD LINES, BOOM 2.15M	$0.00	Out of stock.
D1	HOSE	$141.00
D2	HOSE HYDRAULIC	$78.00
D8	TIE CABLE	$4.75
D9	ELBOW 90	$32.00

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

HYD LINES, BOOM 2.15M

Product Description

HYD LINES, BOOM 2.15M

Additional Information

Part Number	E27BSR-827084
Section	Attachments
