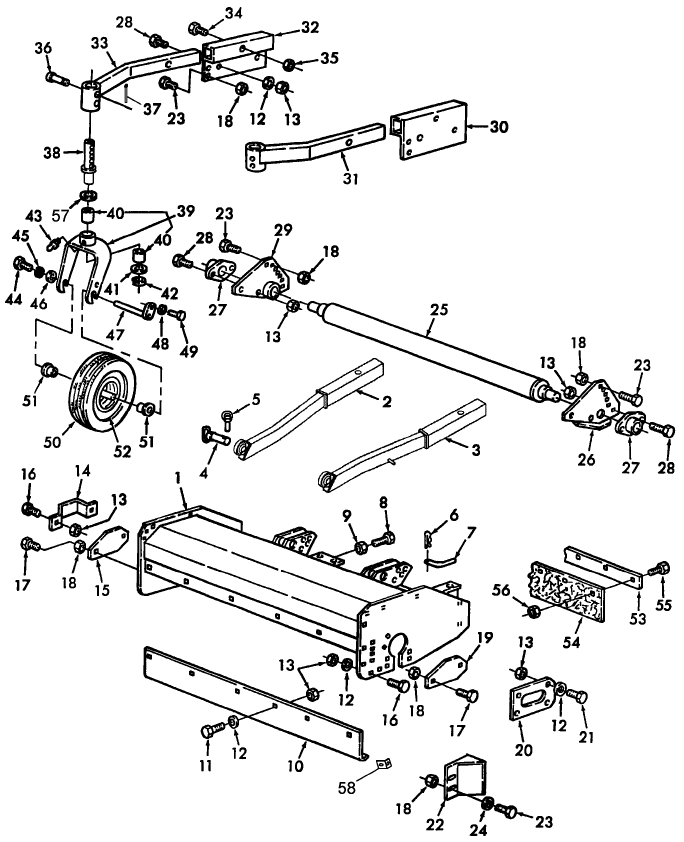

001 FRAME & RELATED PARTS

Be the first to review this product

Key	Product Name	Price	Qty
1	FRAME	$1,310.37	Out of stock.
2	ARM, LIFT	$157.03
2	ARM, LIFT	$194.03
3	ARM, LIFT	$253.15
3	ARM, LIFT	$126.31
4	PIN	$39.53
5	PIN	$5.01
6	PIN SPLIT (COTTER)	$2.20
7	PIN	$28.26
8	BOLT (PKG of 5)	$32.50
9	NUT (PKG of 5)	$12.00
10	GUARD	$180.00
11	BOLT (PKG of 10)	$13.30	Out of stock.
12	WASHER (PKG of 5)	$11.00
13	NUT LOCK (PKG of 25)	$20.50
14	SHIELD	$72.00
15	GUARD	$42.00
17	SCREW (PKG of 2)	$1.96
18	NUT (PKG of 5)	$6.25
19	GUARD	$23.17
20	SHIELD	$60.74
21	SCREW (PKG of 10)	$2.70
22	GUARD	$26.72
23	BOLT (PKG of 10)	$16.50
24	WASHER (PKG of 10)	$1.30
25	ROLLER	$455.00
26	ROLLER	$83.65
27	SUPPORT	$145.00
28	BOLT (PKG of 10)	$7.30
29	ROLLER	$83.65
30	SUPPORT	$118.76
31	ARM	$180.32
32	SUPPORT	$110.67
33	ARM	$160.23
34	BOLT	$1.75
35	NUT (PKG of 5)	$13.75
36	PIN	$25.00
37	RING (PKG of 10)	$3.50
38	SHAFT	$188.00
39	FORK	$342.00
40	BUSHING	$35.50
41	WASHER (PKG of 5)	$29.75
42	RING SNAP (PKG of 2)	$5.80
43	PROCURE LOCALLY	$0.00	Out of stock.
47	PIN	$45.00
49	BOLT (PKG of 10)	$4.80
50	WHEEL ASSY	$126.00
51	SPACER	$22.00
52	WHEEL	$74.00
53	STRAP SECURING	$95.25
54	SHIELD	$223.00
55	BOLT (PKG of 10)	$5.00
56	NUT (PKG of 50)	$15.50
58	PLATE	$18.09

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Frame

Product Description

Frame, 715670001

Additional Information

Part Number	715670001-14321
Section	Section
