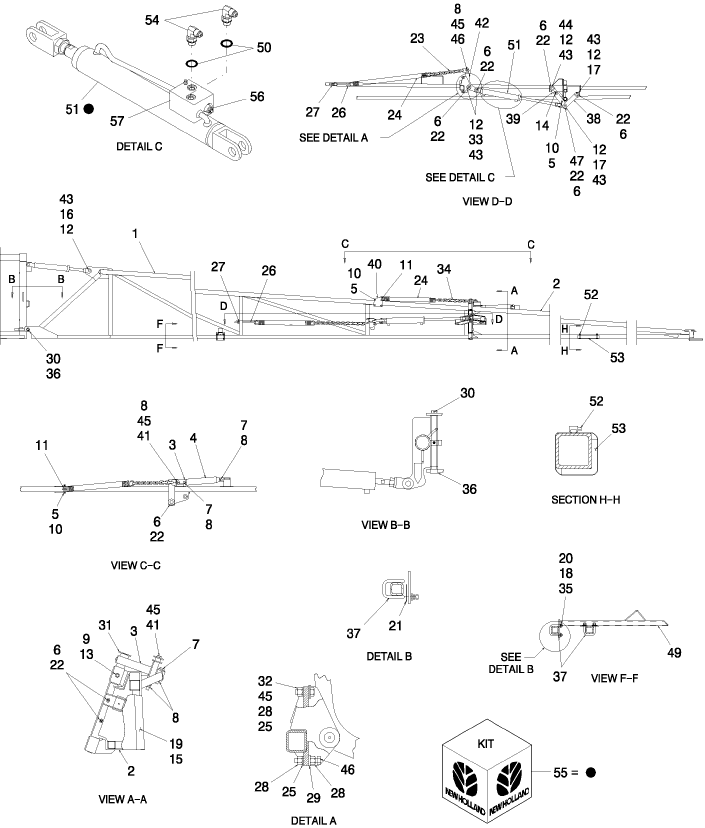

09.05 BOOM ASSEMBLY, 90 FT, LH AND RH

Key	Product Name	Price	Qty
1	BOOM	$3,131.48
1	BOOM	$3,140.09
2	BOOM	$1,776.74
2	BOOM	$1,773.56
3	BRACKET	$151.52
4	SHOCK ABSORBER	$222.43
5	BOLT (PKG of 10)	$11.00
6	NIPPLE LUBE (PKG of 10)	$12.00
7	BOLT (PKG of 5)	$4.75
8	NUT (PKG of 10)	$16.60
9	NUT	$0.16
10	NUT LOCK (PKG of 10)	$17.50
11	TUBE, RIGID	$14.65
12	PIN, SPLIT (COTTER)	$0.77
13	SCREW	$0.18
14	TUBE, RIGID	$17.56
15	PROCURE LOCALLY	$0.00	Out of stock.
16	PIN	$17.55
17	PIN	$11.40
18	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
19	MAT	$12.85
20	WASHER (PKG of 10)	$1.20
21	PLATE	$13.20
23	CHAIN	$43.26
24	SPRING	$53.83
25	WASHER LOCK (PKG of 25)	$4.75
26	EYEBOLT	$27.45
27	NUT (PKG of 20)	$7.40
28	NUT (PKG of 5)	$1.40
29	WASHER (PKG of 10)	$6.90
30	PIN	$8.20
31	PIN	$72.69
32	BOLT (PKG of 10)	$8.10
33	PIN	$19.39
34	CHAIN	$40.42
35	NUT (PKG of 20)	$5.40
36	PIN	$49.59
37	U-BOLT	$2.83
38	BAR	$57.63
39	BAR	$25.87
40	PLATE	$48.24
41	BOLT (PKG of 5)	$20.00
42	PLATE	$188.67
42	PLATE	$188.67
43	WASHER (PKG of 10)	$22.50
44	PIN	$23.97
45	WASHER (PKG of 10)	$4.20
46	BOLT (PKG of 5)	$11.25
47	TUBE, RIGID	$35.64
48	SCREW	$1.63
49	SUPPORT	$149.45
50	O-RING (PKG of 50)	$92.50
51	HYDRAULIC CYLINDER	$973.51
52	CLAMP HOSE (PKG of 5)	$15.50
53	ANGLE	$11.63
54	ELBOW 90	$15.50
55	KIT, SEALS	$49.17
56	VALVE, CONTROL	$0.00	Out of stock.
57	VALVE, CONTROL	$132.67

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Inner, RH, 90FT

Product Description

Inner, RH, 90FT

Additional Information

Part Number	SF550-278167
Section	Boom Assemblies
