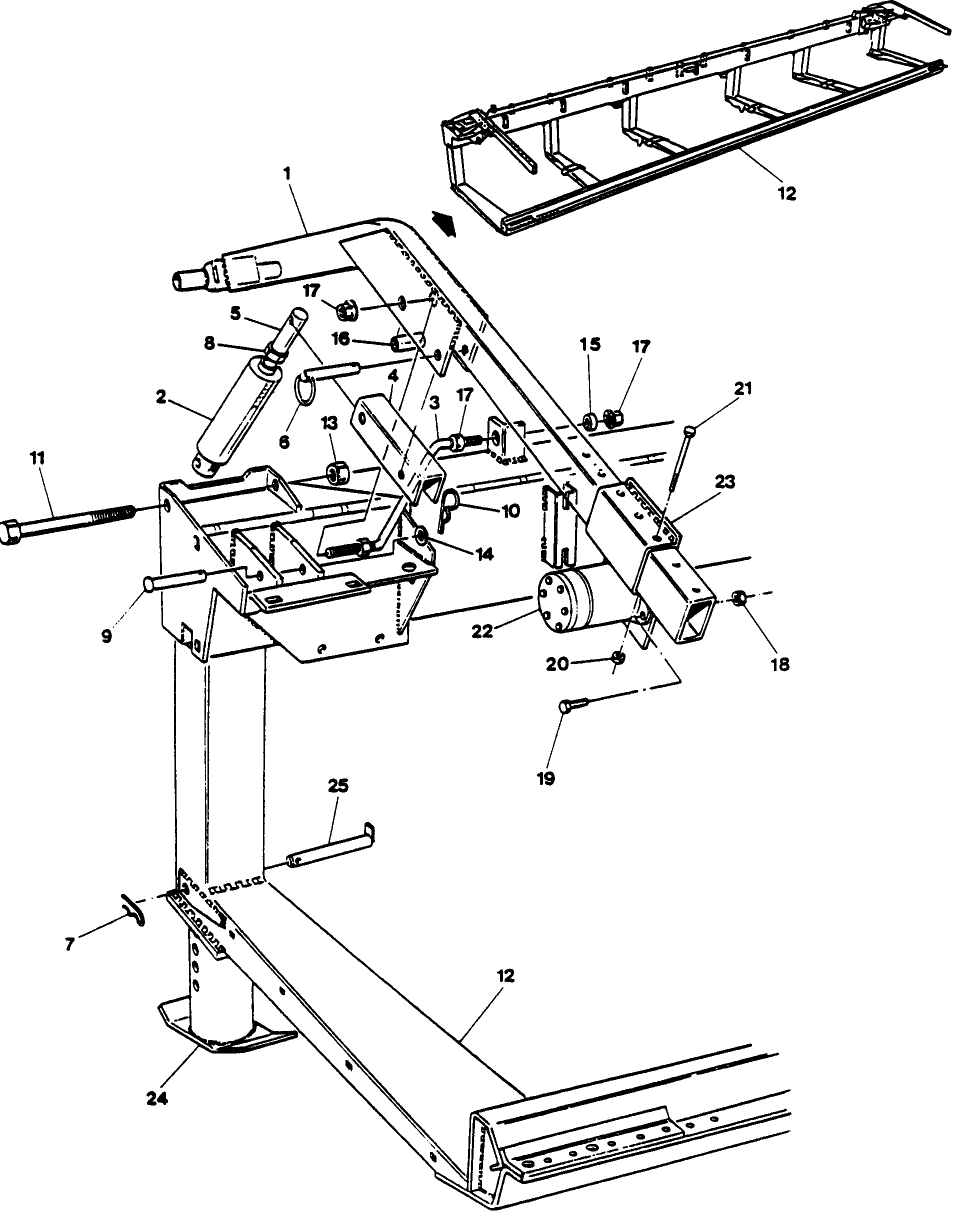

001 REEL ARMS & TABLE FRAME

Key	Product Name	Price	Qty
1	ARM	$0.00	Out of stock.
2	NOT SERVICED SEPARATELY	$0.00	Out of stock.
3	SUPPORT	$173.00
4	CHANNEL	$0.00	Out of stock.
5	CAP	$0.00	Out of stock.
6	PIN	$6.51
7	PIN, SPLIT (COTTER)	$52.40
8	NUT	$0.00	Out of stock.
9	PIN, CLEVIS	$0.00	Out of stock.
10	PIN, SPLIT (COTTER)	$0.00	Out of stock.
11	BOLT	$27.00
12	TABLE	$0.00	Out of stock.
	TABLE	$0.00	Out of stock.
	TABLE	$0.00	Out of stock.
	TABLE	$0.00	Out of stock.
13	NUT	$12.00
14	WASHER (PKG of 2)	$5.60
15	TUBE	$0.00	Out of stock.
16	SPACER	$15.00	Out of stock.
17	NUT	$0.00	Out of stock.
18	NUT FLANGE (PKG of 5)	$2.55
19	SCREW	$0.00	Out of stock.
20	NUT (PKG of 10)	$13.86
21	BOLT (PKG of 5)	$19.75
23	MOTOR, HYDRAULIC	$0.00	Out of stock.
24	JACK	$0.00	Out of stock.
25	PIN	$0.00	Out of stock.

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Arm, Real

Product Description

Arm, Real, 4000-SERIES

Additional Information

Part Number	4000-SERIES-28703
