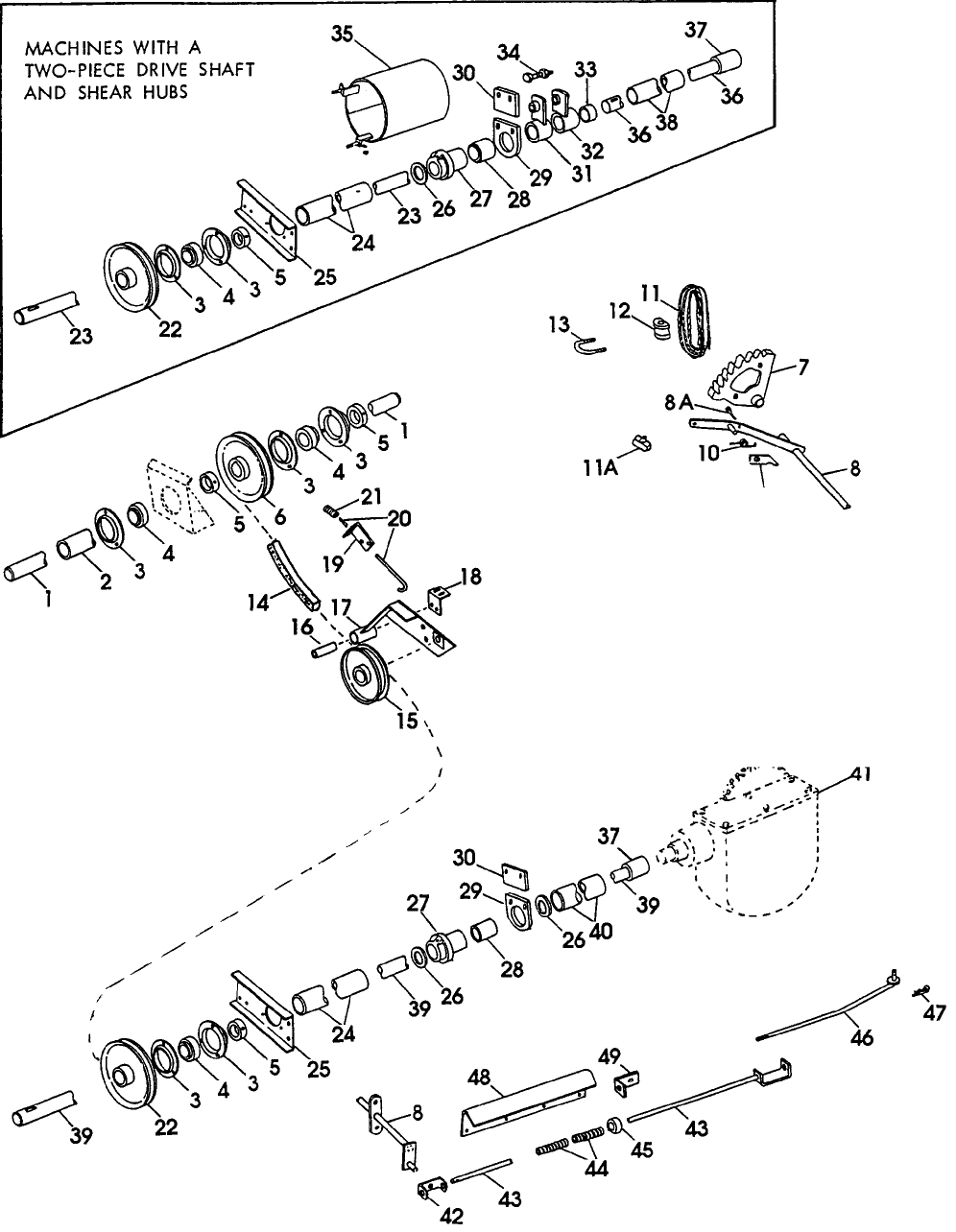

004 MAIN DRIVE & CONTROL

Key	Product Name	Price	Qty
1	SHAFT	$250.00	Out of stock.
2	SHIELD	$155.00
3	FLANGE	$6.00
	BOLT CARRIAGE (PKG of 10)	$8.40
	BOLT CARRIAGE (PKG of 10)	$10.00
	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
	NUT (PKG of 20)	$5.40
4	BEARING BALL	$17.50	Out of stock.
5	COLLAR	$2.23	Out of stock.
6	SHEAVE	$113.32	Out of stock.
	KEY WOODRUFF (PKG of 5)	$19.50
	NUT JAM (PKG of 10)	$7.70
	SET SCREW (PKG of 10)	$30.00
7	QUADRANT	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$4.60
8	LEVER	$0.00	Out of stock.
	BOLT (PKG of 10)	$1.50
	WASHER LOCK (PKG of 10)	$1.90
	NUT (PKG of 25)	$3.00
8A	BOLT (PKG of 10)	$5.50
	NUT (PKG of 20)	$2.20
9	PAWL	$80.10
	WASHER (PKG of 10)	$6.60
	PIN SPLIT (COTTER) (PKG of 20)	$2.20
10	SPRING	$8.36	Out of stock.
11	ROPE	$18.20
11A	HANDLE GRIP	$1.98	Out of stock.
12	GUIDE (PKG of 3)	$21.75	Out of stock.
13	U-BOLT (PKG of 5)	$17.00
	WASHER LOCK (PKG of 10)	$2.00
	NUT (PKG of 25)	$20.75
14	BELT	$41.80
15	IDLER	$95.53
	BOLT (PKG of 2)	$7.92	Out of stock.
	WASHER (PKG of 10)	$5.20
	NUT LOCK (PKG of 10)	$8.90
16	SPACER	$0.00	Out of stock.
17	ARM	$0.00	Out of stock.
	WASHER (PKG of 10)	$7.80
	WASHER (PKG of 50)	$10.00
18	BRACKET	$9.23
	BOLT CARRIAGE (PKG of 10)	$6.50
19	BRACKET	$6.21
	BOLT (PKG of 10)	$8.00
20	BOLT	$89.60
	BOLT (PKG of 10)	$9.30
21	SPRING	$40.25
22	SHEAVE	$319.20
	NUT LOCK (PKG of 60)	$13.20
23	SHAFT, DRIVEN	$0.00	Out of stock.
25	SUPPORT	$0.00	Out of stock.
26	WASHER (PKG of 10)	$33.50
27	BEARING ASSY	$65.75
	NIPPLE LUBE (PKG of 10)	$12.00
28	BUSHING	$56.85
29	SUPPORT	$7.67
30	CLAMP	$8.80
	WASHER (PKG of 10)	$1.20
31	HUB	$0.00	Out of stock.
	KEY WOODRUFF (PKG of 10)	$23.40	Out of stock.
32	HUB	$0.00	Out of stock.
33	BUSHING (PKG of 5)	$109.70
34	BOLT SHEAR (PKG of 10)	$25.00
35	SHIELD	$0.00	Out of stock.
	NUT WING (PKG of 10)	$24.50
36	SHAFT	$0.00	Out of stock.
36	SHAFT	$0.00	Out of stock.
	KEY WOODRUFF (PKG of 5)	$38.75
37	COUPLING	$101.10
	SET SCREW (PKG of 5)	$30.00
38	SHIELD	$0.00	Out of stock.
39	PTO	$0.00	Out of stock.
39	PTO	$0.00	Out of stock.
41	GEARBOX	$0.00	Out of stock.
	BOLT (PKG of 10)	$6.70
	BOLT (PKG of 10)	$6.60
	WASHER (PKG of 10)	$51.00
	WASHER (PKG of 10)	$4.20
	WASHER LOCK (PKG of 25)	$4.75
42	CLIP	$0.00	Out of stock.
	WASHER (PKG of 10)	$5.30
	PIN SPLIT (COTTER) (PKG of 50)	$5.00
43	ROD	$0.00	Out of stock.
43	ROD	$0.00	Out of stock.
	PIN SPLIT (COTTER) (PKG of 10)	$3.70
	WASHER (PKG of 10)	$1.70
44	SPRING	$27.00	Out of stock.
45	COLLAR	$40.16
	SET SCREW (PKG of 10)	$37.50
46	ROD	$0.00	Out of stock.
47	PIN SPLIT (COTTER) (PKG of 10)	$12.00
48	GUARD	$0.00	Out of stock.
49	GUIDE	$0.00	Out of stock.
	PIN SPLIT (COTTER) (PKG of 10)	$4.00

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Shaft & Collar Assy.

Product Description

Shaft & Collar Assy.

Additional Information

Part Number	518-22571
