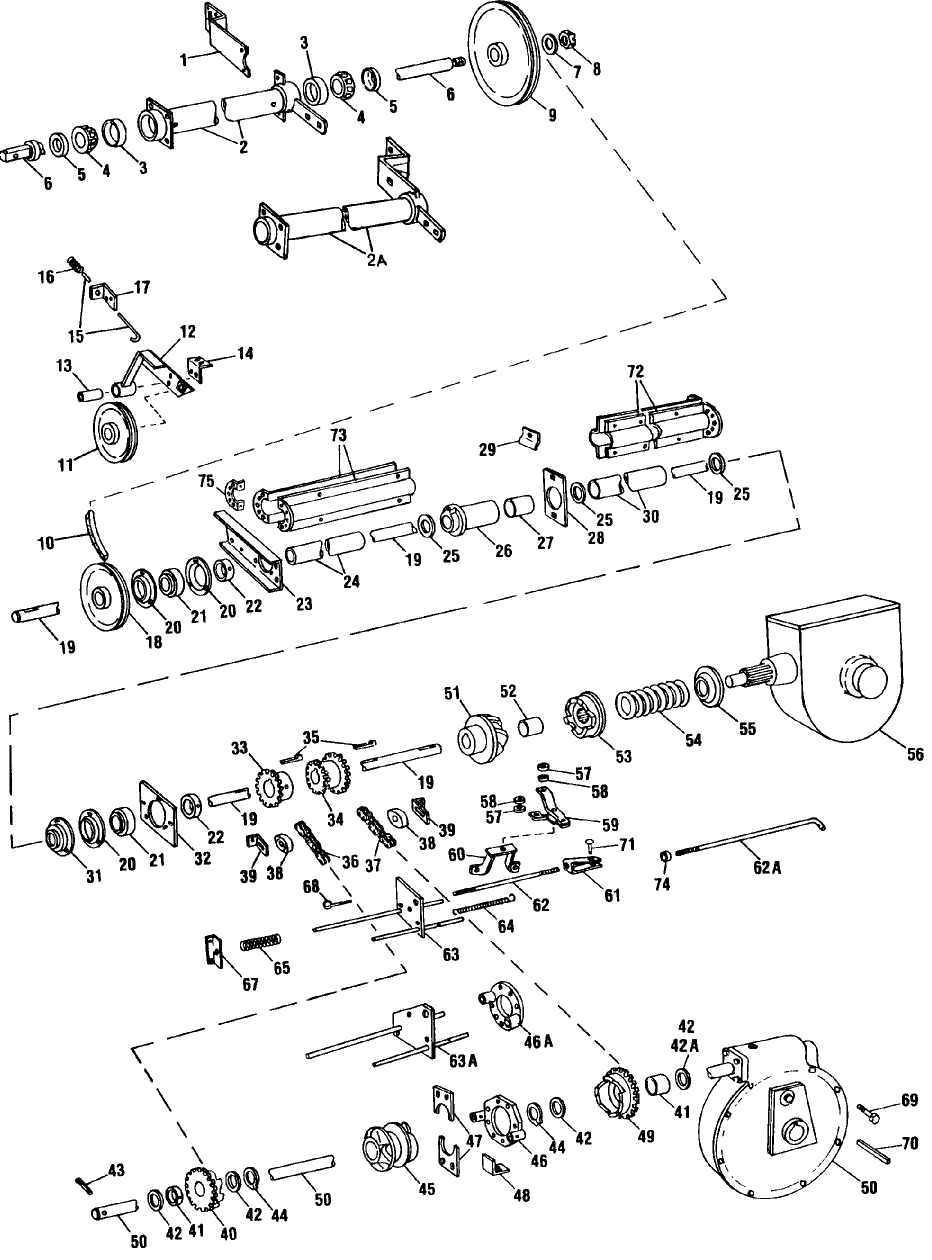

008 APRON & BEATER DRIVE

Key	Product Name	Price	Qty
1	BRACKET	$0.00	Out of stock.
	BOLT (PKG of 10)	$1.50
	WASHER LOCK (PKG of 10)	$1.90
	NUT (PKG of 25)	$3.00
2	SUPPORT	$0.00	Out of stock.
2A	SUPPORT	$0.00	Out of stock.
	NIPPLE LUBE (PKG of 10)	$12.00
	NIPPLE LUBE (PKG of 10)	$21.00
3	BEARING CUP	$6.10
4	BEARING CONE	$10.45
5	COVER BEARING	$1.48
6	SHAFT	$162.40
7	WASHER (PKG of 2)	$5.80
8	NUT SLOTTED (PKG of 5)	$43.00
	PIN SPLIT (COTTER) (PKG of 20)	$13.80
9	SHEAVE	$113.32	Out of stock.
	KEY WOODRUFF (PKG of 5)	$19.50
	SET SCREW (PKG of 10)	$30.00
10	V-BELT	$68.50
11	IDLER	$95.53
	014 COOLING SYSTEM	$0.00	Out of stock.
	WASHER (PKG of 10)	$7.80
	NUT LOCK (PKG of 10)	$8.90
12	ARM	$0.00	Out of stock.
	BOLT (PKG of 10)	$9.30
	WASHER (PKG of 10)	$1.40
13	SPACER	$0.00	Out of stock.
14	BRACKET	$9.23
	BOLT CARRIAGE (PKG of 10)	$6.50
15	BOLT	$89.60
	NUT LOCK (PKG of 60)	$13.20
16	SPRING	$40.25
17	BRACKET	$6.21
18	SHEAVE	$319.20
	NUT JAM (PKG of 10)	$7.70
19	SHAFT MAIN	$588.00
19	SHAFT	$684.00
20	BEARING FLANGED	$16.25	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$4.60
	BOLT CARRIAGE (PKG of 10)	$8.40
	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
	NUT (PKG of 20)	$5.40
21	BEARING BALL	$17.50	Out of stock.
22	COLLAR	$2.23	Out of stock.
23	PLATE	$133.30
24	SHIELD	$155.00
26	BEARING ASSY	$202.40
25	WASHER (PKG of 10)	$33.50
27	BUSHING	$56.85
	BOLT CARRIAGE (PKG of 10)	$11.00
28	HOLDER	$57.30
	WASHER (PKG of 50)	$10.00
29	CLIP	$43.15
30	SHIELD	$0.00	Out of stock.
31	COVER BEARING	$43.90
32	FLANGE	$62.20
	BOLT CARRIAGE (PKG of 10)	$5.40
	WASHER (PKG of 10)	$1.20
33	SPROCKET, DRIVING	$0.00	Out of stock.
34	SPROCKET, DRIVING	$0.00	Out of stock.
35	KEY	$12.25
36	CHAIN	$0.00	Out of stock.
	LINK (PKG of 10)	$14.50	Out of stock.
	LINK (PKG of 5)	$8.25
	LINK, CONNECTING (PKG of 5)	$9.85	Out of stock.
37	CHAIN	$13.62
38	TIGHTENER	$127.00	Out of stock.
	BOLT CARRIAGE (PKG of 5)	$18.25
39	BRACKET	$36.50
40	SPROCKET DRIVING	$248.65
41	BUSHING DRIVE	$43.00
43	PIN SPLIT (COTTER) (PKG of 20)	$11.20
42	WASHER (PKG of 5)	$27.50
42A	WASHER (PKG of 5)	$4.65
44	RING SNAP (PKG of 5)	$18.00
45	CLUTCH	$133.90	Out of stock.
46	CYLINDER	$0.00	Out of stock.
46A	SHIFTING UNIT	$183.70
47	BUSHING	$53.35
48	STOP	$0.00	Out of stock.
	BOLT (PKG of 10)	$5.50
49	SPROCKET DRIVING	$786.25
50	GEARBOX	$0.00	Out of stock.
	BOLT (PKG of 10)	$13.50
	WASHER LOCK (PKG of 25)	$4.75
	NUT (PKG of 20)	$7.40
51	CLUTCH	$172.50
	PIN GROOVED (PKG of 5)	$35.00
52	BUSHING	$18.50
53	CLUTCH	$208.65
54	SPRING (PKG of 2)	$81.50
55	WASHER	$12.75
56	GEAR	$2,045.15
	BOLT (PKG of 10)	$8.10
57	ROLLER	$13.80
	SCREW (PKG of 10)	$17.00
	WASHER LOCK (PKG of 10)	$1.00
	NUT (PKG of 20)	$2.20
58	SPACER (PKG of 5)	$144.25
59	YOKE	$19.75	Out of stock.
	BUSHING	$14.25
60	BRACKET	$33.35
	BOLT CARRIAGE (PKG of 10)	$11.50
61	CLEVIS	$0.00	Out of stock.
62	ROD	$69.75
62A	ROD	$33.90
	WASHER (PKG of 10)	$6.60
	SPACER (PKG of 2)	$6.28
	PIN SPLIT (COTTER) (PKG of 10)	$3.70
63	008 APRON & BEATER DRIVE	$0.00	Out of stock.
63A	SHIFTING UNIT	$0.00	Out of stock.
	PIN SPLIT (COTTER) (PKG of 20)	$10.20
	PIN LOCK (PKG of 20)	$8.20
64	SPRING	$45.10
65	SPRING	$37.80
67	BRACKET	$18.00
68	EYEBOLT (PKG of 2)	$36.40
69	BOLT SHEAR (PKG of 10)	$49.00
70	BAR	$15.25
71	BOLT (PKG of 10)	$5.40
72	SHIELD	$35.13	Out of stock.
72	SHIELD	$0.00	Out of stock.
	BOLT (PKG of 10)	$2.50
	BOLT CARRIAGE (PKG of 10)	$7.60
73	SHIELD	$14.35	Out of stock.
75	BRACKET	$11.75
	BOLT (PKG of 10)	$2.80
	NUT SERRATED (PKG of 25)	$4.50
	BOLT (PKG of 10)	$5.30

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Bracket, ASN C

Product Description

Bracket, ASN C

Additional Information

Part Number	513-16395
