• 002 GEARBOX DRIVE & PROPELLER TUBE GROUP, MODEL 470 & 475

Double click on above image to view full picture

More Views

•

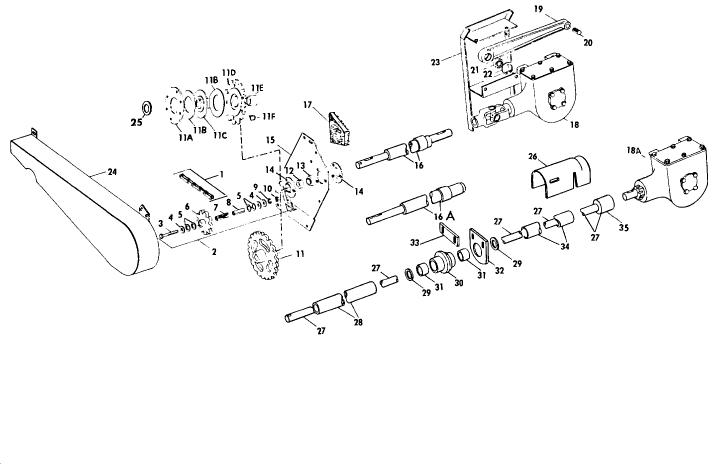

002 GEARBOX DRIVE & PROPELLER TUBE GROUP, MODEL 470 & 475

Key	Product Name	Price	Qty
1	CHAIN	$0.00	Out of stock.
	LINK, CHAIN (PKG of 10)	$40.40	Out of stock.
	LINK, CONNECTING (PKG of 10)	$17.20	Out of stock.
	LINK, OFFSET (PKG of 10)	$37.50	Out of stock.
	CHAIN	$0.00	Out of stock.
2	WHEEL, IDLER	$150.00
3	BOLT (PKG of 5)	$8.75
4	WASHER (PKG of 5)	$10.25
5	WASHER (PKG of 5)	$20.50
6	SPROCKET, DRIVING	$103.47	Out of stock.
7	BUSHING	$9.95
8	BUSHING (PKG of 5)	$197.50
9	WASHER LOCK (PKG of 10)	$2.20
10	NUT (PKG of 5)	$8.00
11	SPROCKET, DRIVING	$0.00	Out of stock.
	KEY WOODRUFF (PKG of 10)	$23.40	Out of stock.
	NUT JAM (PKG of 10)	$7.70
11A	PLATE	$0.00	Out of stock.
11B	FILTER, ELEMENT	$0.00	Out of stock.
11C	FLANGE	$0.00	Out of stock.
11D	SPROCKET, DRIVING	$201.00	Out of stock.
11E	BUSHING	$64.90
11F	SPRING	$61.75
	BOLT (PKG of 10)	$122.50
	WASHER (PKG of 10)	$1.40
12	COLLAR	$2.23	Out of stock.
	SET SCREW (PKG of 10)	$24.50
13	BEARING BALL	$17.50	Out of stock.
14	FLANGE	$6.00
	BOLT CARRIAGE (PKG of 10)	$10.00
	SET SCREW (PKG of 10)	$18.50
	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
	NUT (PKG of 20)	$5.40
15	SUPPORT	$0.00	Out of stock.
	BOLT (PKG of 10)	$8.00
	BOLT (PKG of 10)	$1.50
	WASHER LOCK (PKG of 10)	$1.90
	NUT (PKG of 25)	$3.00
16	TUBE, RIGID	$0.00	Out of stock.
16A	TUBE, RIGID	$0.00	Out of stock.
	KEY WOODRUFF (PKG of 5)	$38.75
17	BRACKET	$0.00	Out of stock.
	BOLT (PKG of 10)	$9.00
	WASHER (PKG of 10)	$0.55
18	GEARBOX	$0.00	Out of stock.
	BOLT (PKG of 10)	$8.10
	WASHER LOCK (PKG of 25)	$4.75
	NUT (PKG of 20)	$7.40
18A	GEARBOX	$0.00	Out of stock.
	BOLT (PKG of 10)	$6.60
	WASHER (PKG of 10)	$6.60
19	ROD	$0.00	Out of stock.
20	BUSHING (PKG of 2)	$29.00
21	BEARING BALL	$7.92
22	RING SNAP (PKG of 5)	$24.00
	WASHER (PKG of 10)	$4.20
	NUT SLOTTED (PKG of 5)	$13.25
	PIN SPLIT (COTTER) (PKG of 20)	$13.80
23	002 GEARBOX DRIVE & PROPELLER TUBE GROUP, MODEL 470 & 475	$0.00	Out of stock.
	GEARBOX	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$11.00
	BOLT CARRIAGE (PKG of 10)	$9.00
	NUT (PKG of 10)	$2.00
24	BOLT	$0.00	Out of stock.
	BOLT (PKG of 10)	$2.80
	BOLT CARRIAGE (PKG of 10)	$8.40
25	WASHER (PKG of 10)	$32.00
26	SHIELD	$9.91
	BOLT (PKG of 10)	$6.50
	WASHER LOCK (PKG of 10)	$1.00
	NUT (PKG of 20)	$2.20
27	SHAFT	$0.00	Out of stock.
28	SHIELD	$0.00	Out of stock.
29	WASHER (PKG of 10)	$33.50
30	HUB	$0.00	Out of stock.
31	BUSHING, DRIVE	$0.00	Out of stock.
32	SUPPORT	$7.67
33	CLAMP	$8.80
	WASHER (PKG of 10)	$1.20
34	002 GEARBOX DRIVE & PROPELLER TUBE GROUP, MODEL 470 & 475	$0.00	Out of stock.
35	COUPLING	$101.10
	NIPPLE LUBE (PKG of 5)	$12.00

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Chain, Gearbox Driven, Model 475

Product Description

Chain, Gearbox Driven, Model 475

Additional Information

Part Number	475-22036
