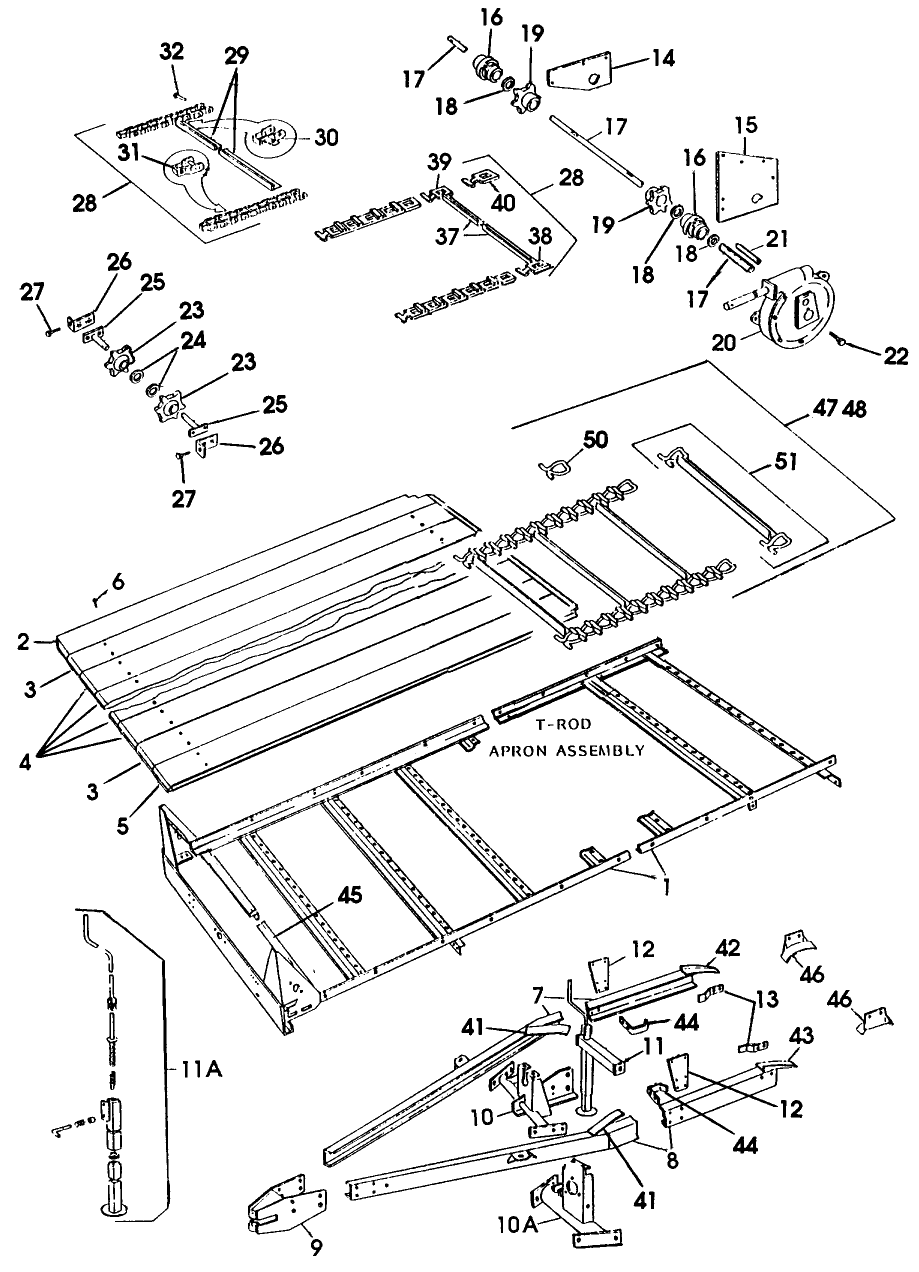

001 FRAME AND APRON

Key	Product Name	Price	Qty
1	FRAME	$0.00	Out of stock.
	SCREW SELF-TAP (PKG of 10)	$36.50
	BOLT CARRIAGE (PKG of 5)	$9.50
	BOLT (PKG of 2)	$5.30
	BOLT	$9.70
	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
	WASHER (PKG of 6)	$18.30
	NUT (PKG of 5)	$35.75
	WASHER LOCK (PKG of 10)	$2.50
	NUT (PKG of 25)	$3.00
	NUT (PKG of 20)	$5.40
	NUT (PKG of 10)	$16.00
2	FOOT BOARD	$0.00	Out of stock.
3	FOOT BOARD	$113.31
4	FOOT BOARD	$266.15	Out of stock.
5	FOOT BOARD	$0.00	Out of stock.
6	SCREW SELF-TAP (PKG of 25)	$32.50
7	CHANNEL	$0.00	Out of stock.
8	CHANNEL	$0.00	Out of stock.
9	HITCH	$0.00	Out of stock.
	BOLT (PKG of 10)	$6.60
	WASHER (PKG of 10)	$6.90
	NUT (PKG of 20)	$7.40
10	SUPPORT	$0.00	Out of stock.
	BOLT (PKG of 5)	$16.00
	WASHER LOCK (PKG of 25)	$4.75
	NUT (PKG of 10)	$11.00
10A	SUPPORT	$0.00	Out of stock.
11	JACK	$0.00	Out of stock.
	SPACER (PKG of 10)	$172.50
	BOLT (PKG of 5)	$4.20
	WASHER (PKG of 10)	$1.70
	WASHER LOCK (PKG of 10)	$2.20
	NUT (PKG of 10)	$2.00
11A	JACK	$476.00
	BOLT (PKG of 5)	$37.50
12	PLATE	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$9.00
13	GUIDE	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$25.00
14	HANGER	$67.80
	BOLT (PKG of 10)	$6.70
	BOLT (PKG of 10)	$7.50
15	HANGER	$94.40
	BOLT CARRIAGE (PKG of 10)	$11.50
	BOLT (PKG of 10)	$13.50
	WASHER LOCK (PKG of 10)	$1.90
16	BEARING ASSY	$85.15
	NIPPLE LUBE (PKG of 10)	$12.50
	NIPPLE LUBE (PKG of 10)	$35.50
17	SHAFT	$470.40
	NUT SLOTTED (PKG of 10)	$67.32
18	WASHER (PKG of 5)	$18.50
19	SPROCKET	$147.85
	KEY WOODRUFF (PKG of 5)	$30.25
	SET SCREW (PKG of 5)	$23.00
	NUT JAM (PKG of 10)	$7.70
20	GEARBOX	$0.00	Out of stock.
21	BAR	$15.25
22	BOLT SHEAR (PKG of 10)	$49.00
23	SPROCKET DRIVING	$12.21
24	WASHER (PKG of 2)	$5.80
25	SHAFT	$89.95
	BOLT CARRIAGE (PKG of 10)	$7.50
26	ADJUSTER	$49.60
27	BOLT (PKG of 5)	$42.75
28	CHAIN	$2,166.35	Out of stock.
28	CHAIN	$0.00	Out of stock.
28	CHAIN	$0.00	Out of stock.
29	SLAT	$43.00
	RIVET (PKG of 10)	$40.50
30	LINK	$15.75
	LINK	$21.25
31	LINK CONNECTING	$8.25
	LINK CONNECTING	$31.00
32	PIN	$8.90
	PIN	$9.20
37	SLAT	$64.00
38	LINK CONNECTING (PKG of 2)	$18.20
39	LINK CONNECTING (PKG of 2)	$15.40
40	LINK CHAIN (PKG of 25)	$78.75
41	GUIDE	$0.00	Out of stock.
42	GUIDE	$71.86	Out of stock.
43	GUIDE	$14.06
44	GUIDE	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$6.50
	WASHER (PKG of 50)	$10.00
45	SUPPORT	$290.40
46	GUIDE	$35.17	Out of stock.
47	SPARE PART	$1,995.00	Out of stock.
48	004 APRON	$0.00	Out of stock.
50	LINK CHAIN (PKG of 25)	$65.00
51	SLAT	$50.00
	PIN SPLIT (COTTER) (PKG of 10)	$4.00

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Main Frame Weld Assy., Replaces 268619

Product Description

Main Frame Weld Assy., Replaces 268619

Additional Information

Part Number	679-31706
