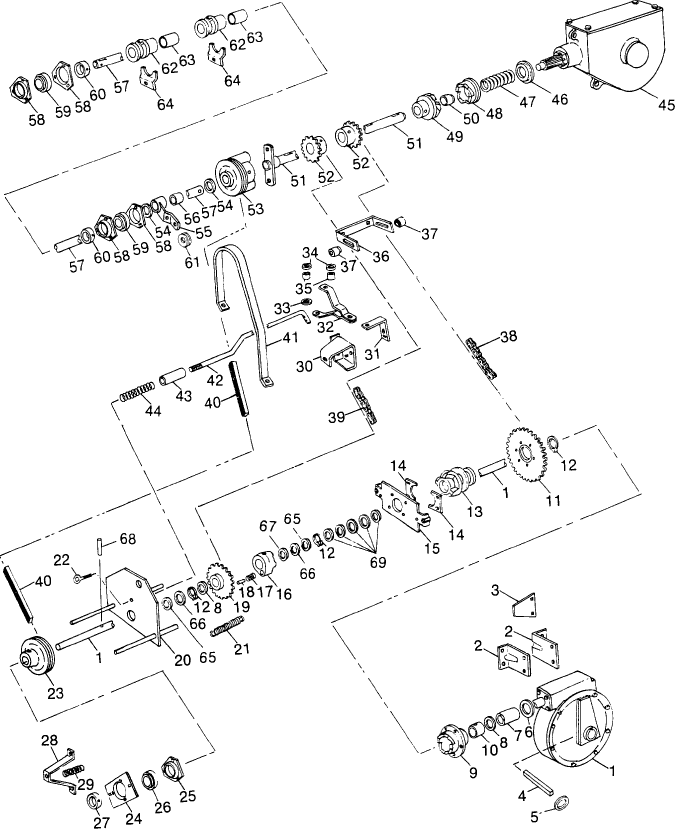

009 APRON & BEATER DRIVE

Key	Product Name	Price	Qty
1	GEARBOX	$0.00	Out of stock.
	BOLT (PKG of 10)	$6.60
2	BRACKET	$84.00
	BOLT (PKG of 5)	$37.55
	BOLT CARRIAGE (PKG of 10)	$25.00
3	PLATE	$185.26
4	BAR	$15.25
5	WASHER (PKG of 5)	$22.45
	PIN SPLIT (COTTER) (PKG of 10)	$19.00
6	WASHER (PKG of 5)	$30.00
7	SPACER	$9.15
8	WASHER (PKG of 10)	$32.00
9	CLUTCH	$366.55
	NIPPLE LUBE (PKG of 10)	$12.00
10	BUSHING DRIVE	$43.00
11	SPROCKET DRIVING	$98.00
	BOLT (PKG of 10)	$4.10
	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
	NUT LOCK (PKG of 10)	$1.30
	SPROCKET	$172.00
12	RING SNAP (PKG of 5)	$18.00
	RING SNAP (PKG of 5)	$37.50
13	CLUTCH	$133.90	Out of stock.
14	BUSHING	$53.35
	WASHER (PKG of 10)	$0.55
15	009 APRON & BEATER DRIVE	$0.00	Out of stock.
	PIN LOCK (PKG of 20)	$8.20
16	CLUTCH	$264.35
17	SPRING (PKG of 10)	$72.50
18	PIN (PKG of 10)	$69.50
19	SPROCKET	$194.90
20	009 APRON & BEATER DRIVE	$0.00	Out of stock.
21	SPRING	$45.10
22	EYEBOLT (PKG of 5)	$61.75
	NUT (PKG of 25)	$3.00
23	PULLEY	$0.00	Out of stock.
	SET SCREW (PKG of 10)	$135.00
24	FLANGE	$62.20
	BOLT CARRIAGE (PKG of 10)	$4.60
25	BEARING FLANGED	$16.25	Out of stock.
26	BEARING BALL	$17.50	Out of stock.
27	COLLAR	$2.23	Out of stock.
28	BRACKET	$45.58
	BOLT (PKG of 10)	$1.50
	WASHER LOCK (PKG of 10)	$1.90
29	SPRING	$37.80
30	SUPPORT	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$6.50
	WASHER (PKG of 10)	$1.40
31	ANGLE	$5.94	Out of stock.
32	YOKE	$0.00	Out of stock.
33	BUSHING (PKG of 5)	$61.75
	BOLT (PKG of 10)	$5.50
34	ROLLER	$13.80
35	SPACER (PKG of 5)	$144.25
	SCREW (PKG of 10)	$17.00
	WASHER LOCK (PKG of 10)	$1.00
	NUT (PKG of 20)	$2.20
36	BRACKET	$0.00	Out of stock.
37	TIGHTENER	$127.00	Out of stock.
	GUIDE	$20.50
	BOLT CARRIAGE (PKG of 5)	$18.25
	BOLT, CARRIAGE	$0.00	Out of stock.
	WASHER (PKG of 50)	$10.00
38	CHAIN	$0.00	Out of stock.
	LINK (PKG of 10)	$14.50	Out of stock.
	LINK (PKG of 5)	$8.25
	LINK, CONNECTING (PKG of 5)	$9.85	Out of stock.
	CHAIN	$7.06
39	CHAIN	$13.62
40	V-BELT	$9.47	Out of stock.
41	GUARD	$13.46
	BOLT CARRIAGE (PKG of 10)	$11.00
42	ROD	$110.55
	WASHER (PKG of 10)	$6.60
	PIN SPLIT (COTTER) (PKG of 20)	$2.20
43	SPACER	$0.00	Out of stock.
44	SPRING	$49.85
45	GEARBOX	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$29.50
46	WASHER	$12.75
47	SPRING (PKG of 2)	$81.50
48	CLUTCH	$208.65
49	CLUTCH	$229.60
	PIN GROOVED (PKG of 5)	$35.00
	KEY WOODRUFF (PKG of 5)	$41.00
50	BUSHING DRIVE	$29.00
51	SHAFT	$0.00	Out of stock.
52	SPROCKET DRIVING	$91.80
	SET SCREW (PKG of 10)	$56.00
53	PULLEY	$0.00	Out of stock.
54	WASHER (PKG of 10)	$10.80	Out of stock.
55	ARM	$0.00	Out of stock.
56	BUSHING DRIVE (PKG of 2)	$128.80
57	SHAFT, PROPELLOR	$0.00	Out of stock.
58	BEARING FLANGED	$1.44	Out of stock.
	NUT SERRATED (PKG of 50)	$21.50
59	BEARING BALL	$16.95
60	COLLAR	$6.04
61	WHEEL, IDLER	$0.00	Out of stock.
	BOLT (PKG of 5)	$14.50
62	BUSHING	$218.10
63	BUSHING	$75.06
64	CLAMP	$50.70
65	WASHER	$8.75
66	WASHER (PKG of 2)	$35.10
67	WASHER (PKG of 2)	$4.50
68	PIN GROOVED (PKG of 5)	$41.00
	PIN GROOVED (PKG of 10)	$86.50
69	WASHER (PKG of 5)	$8.75
	BOLT (PKG of 10)	$5.30
	NUT JAM (PKG of 10)	$7.70
	BOLT (PKG of 10)	$8.00
	NUT (PKG of 20)	$7.40
	WASHER LOCK (PKG of 25)	$4.75

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Gearbox, Apron Drive, Refer to Fig. 12

Product Description

Gearbox, Apron Drive, Refer to Fig. 12

Additional Information

Part Number	795-22243
