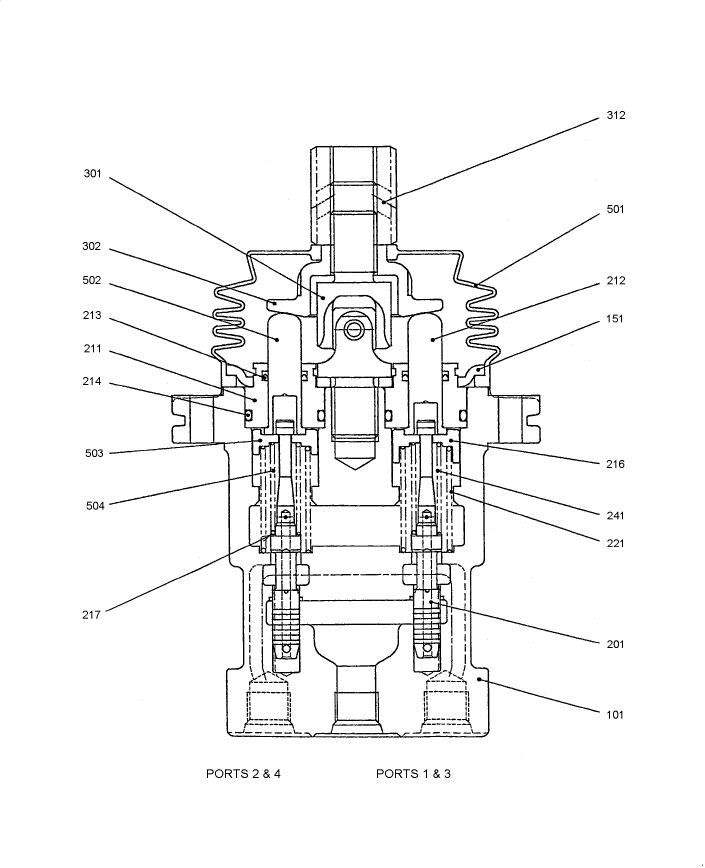

• HC800-01(1) PILOT VALVE - COMPONENTS

Double click on above image to view full picture

More Views

•

HC800-01(1) PILOT VALVE - COMPONENTS

Key	Product Name	Price	Qty
	VALVE	$770.00
101	NOT SERVICED SEPARATELY	$0.00	Out of stock.
151	PLATE	$129.00
211	PLUG	$109.00
212	ROD	$143.35
213	SEAL	$64.50
214	O-RING (PKG of 2)	$6.50
216	SEAT	$42.00
217	WASHER	$11.35
221	SPRING	$12.00
241	SPRING	$29.85
301	JOINT FLEXIBLE	$345.55
302	PLATE	$112.80
312	NUT	$62.98	Out of stock.
501	BOOT	$45.05
502	ROD	$128.45
503	SEAT DRIVER	$42.00
504	SPRING	$89.15

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Pilot; Incl. 101 - 504

Product Description

Pilot; Incl. 101 - 504

Additional Information

Part Number	EH30.B-475543
