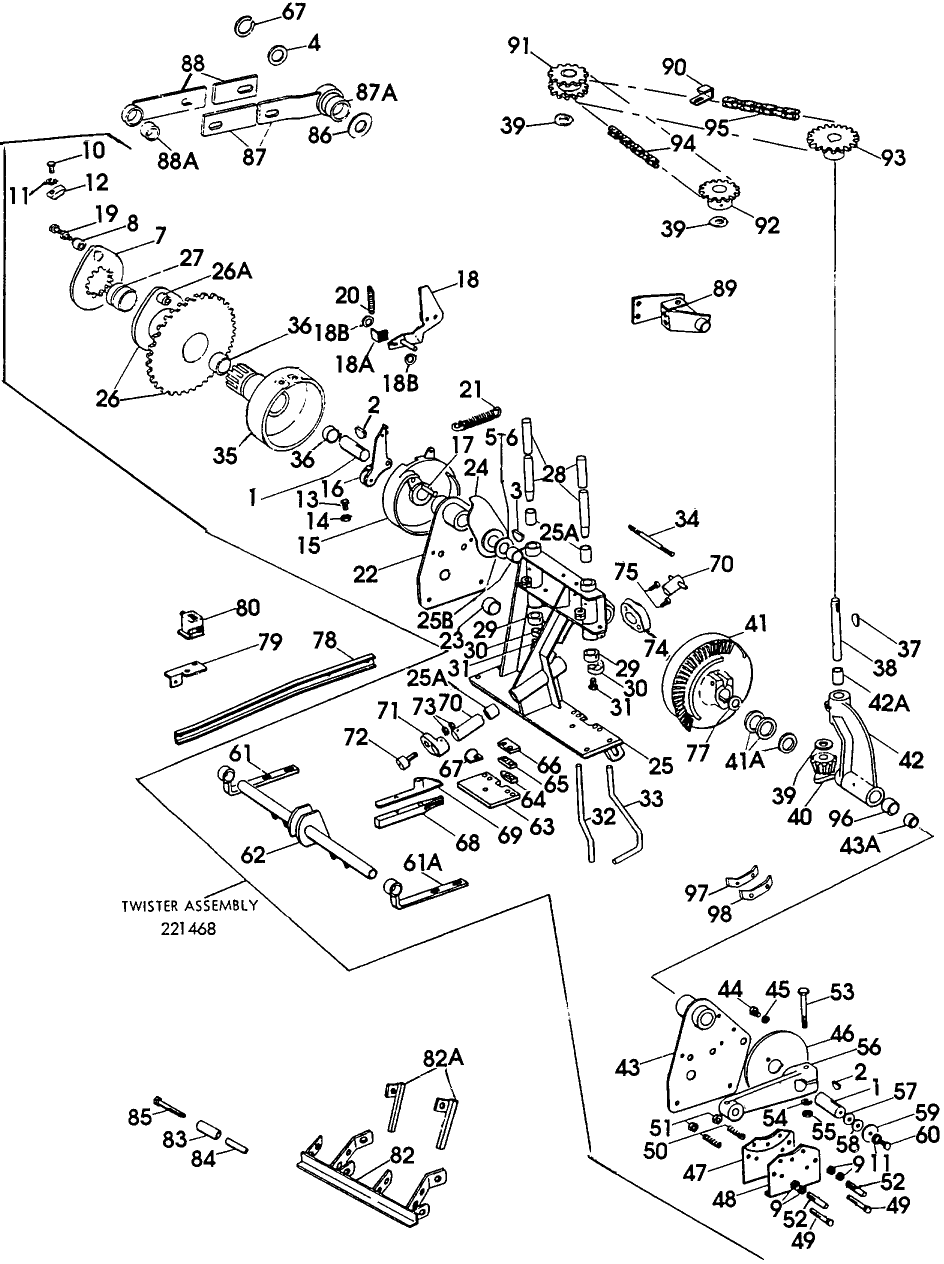

009 WIRE TWISTER

Key	Product Name	Price	Qty
	KNOTTER	$0.00	Out of stock.
1	SHAFT	$0.00	Out of stock.
	NIPPLE LUBE (PKG of 10)	$12.50
2	KEY WOODRUFF (PKG of 5)	$27.25
3	KEY WOODRUFF (PKG of 10)	$25.50
4	WASHER	$7.40
5	WASHER (PKG of 10)	$17.50
6	WASHER (PKG of 10)	$55.00
7	HUB	$267.00	Out of stock.
8	BUSHING SHEAR BOLT	$26.50
9	NUT JAM (PKG of 10)	$7.70
10	BOLT (PKG of 10)	$77.50
11	WASHER LOCK (PKG of 10)	$1.90
12	LATCH	$35.25
13	BOLT SQUARE (PKG of 10)	$29.00
14	NUT (PKG of 25)	$3.00
15	DISC	$929.60
	BOLT (PKG of 2)	$2.10
	WASHER LOCK (PKG of 25)	$4.75
	NUT (PKG of 20)	$7.40
16	PAWL	$837.00
	ROLLER	$58.50
	PIN	$7.35
17	PIN (PKG of 10)	$137.50
18	ARM	$0.00	Out of stock.
	PIN SPLIT (COTTER) (PKG of 20)	$2.20
18A	STOP	$0.00	Out of stock.
	BOLT (PKG of 10)	$5.30
	NUT LOCK (PKG of 10)	$1.30
18B	WASHER (PKG of 2)	$1.80
19	BOLT SHEAR (PKG of 10)	$25.00
20	SPRING (PKG of 10)	$12.50
21	SPRING	$12.66
22	SUPPORT	$0.00	Out of stock.
	NIPPLE LUBE (PKG of 10)	$12.00
	SCREW SELF-TAP (PKG of 25)	$25.00
	NUT LOCK (PKG of 10)	$4.10
	NUT JAM (PKG of 10)	$9.80
23	BUSHING (PKG of 2)	$92.00
24	CAM	$448.10
25	FRAME	$0.00	Out of stock.
25A	BUSHING (PKG of 5)	$43.25
26	GEAR	$0.00	Out of stock.
26A	SLEEVE	$4.84	Out of stock.
27	BUSHING	$46.75
28	SHAFT	$0.00	Out of stock.
29	COLLAR	$21.50
	SET SCREW (PKG of 10)	$11.00
30	HOOK	$188.90
31	SCREW HEX SOC (PKG of 5)	$29.50
32	ROD	$94.00
33	GUIDE	$16.75	Out of stock.
34	STUD	$24.04
35	HUB	$0.00	Out of stock.
36	BEARING NEEDLE	$17.26
37	KEY WOODRUFF (PKG of 10)	$34.00
38	SHAFT	$0.00	Out of stock.
38	SHAFT	$0.00	Out of stock.
39	WASHER (PKG of 10)	$16.50
39	WASHER (PKG of 10)	$48.00
40	PINION, BEVEL	$112.00	Out of stock.
	PIN LOCK (PKG of 10)	$16.50
40	PINION BEVEL	$219.35
41	GEAR	$0.00	Out of stock.
	BOLT (PKG of 10)	$122.50
	NUT (PKG of 20)	$18.80
42	BRACKET	$149.57	Out of stock.
42	BRACKET	$333.02
	NIPPLE LUBE (PKG of 5)	$14.00
43	SUPPORT	$0.00	Out of stock.
	BOLT (PKG of 10)	$6.70
44	BOLT (PKG of 10)	$2.50
45	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
46	BRAKE DISC	$24.90
47	BRAKE SHOE	$78.10
48	BRAKE SHOE	$68.20
49	BOLT (PKG of 10)	$6.50
50	SPRING (PKG of 5)	$103.75
51	NUT (PKG of 10)	$1.40
52	PIN	$44.00
53	BOLT (PKG of 5)	$12.75
56	LINK CONROD	$0.00	Out of stock.
57	WASHER (PKG of 50)	$10.00
58	WASHER (PKG of 10)	$33.50
59	WASHER (PKG of 2)	$11.80
60	BOLT (PKG of 5)	$7.00
61	BRACKET	$0.00	Out of stock.
61A	BRACKET	$0.00	Out of stock.
	BOLT (PKG of 10)	$4.10
	WASHER (PKG of 10)	$5.30
	NUT (PKG of 20)	$5.40
62	CONTROL	$0.00	Out of stock.
	SET SCREW (PKG of 10)	$34.00
63	PLATE	$11.12
64	SPACER (PKG of 4)	$30.20
65	PLATE	$67.95
66	SPACER (PKG of 5)	$37.75
	BOLT (PKG of 25)	$13.50
67	RING, SNAP (PKG of 2)	$9.58	Out of stock.
68	KNIFE	$72.10
69	CLAMP	$119.65
	BOLT (PKG of 5)	$34.50
	NUT JAM (PKG of 10)	$12.50
	BOLT (PKG of 10)	$2.80
70	SHAFT	$59.12
71	SUPPORT	$26.44	Out of stock.
72	BEARING CAMSHAFT	$18.00
73	NUT BHD LOCK (PKG of 10)	$21.50
74	KIT	$18.73	Out of stock.
	SET SCREW (PKG of 10)	$24.50
75	BEARING CAMSHAFT	$33.60
77	WASHER (PKG of 5)	$62.25
78	SUPPORT	$0.00	Out of stock.
	BOLT (PKG of 10)	$8.00
79	FITTING, PIPE	$4.20	Out of stock.
	BOLT (PKG of 10)	$3.80
	NUT (PKG of 20)	$2.20
80	COUNTER BALE	$91.99
	LEVER (PKG of 2)	$27.50
	KNOB	$24.76
82	017 WIRE FEEDING	$0.00	Out of stock.
	BOLT (PKG of 10)	$5.40
	BOLT CARRIAGE (PKG of 10)	$11.50
	NUT LOCK (PKG of 60)	$13.20
82A	GUIDE	$0.00	Out of stock.
	BOLT (PKG of 10)	$1.50
83	ROLLER (PKG of 4)	$110.80
84	SPACER (PKG of 4)	$652.00
85	BOLT (PKG of 5)	$8.75
86	WASHER (PKG of 5)	$71.50
87	HUB	$0.00	Out of stock.
87A	BUSHING, DRIVE	$0.00	Out of stock.
88	HUB	$0.00	Out of stock.
	BOLT, CARRIAGE (PKG of 10)	$2.60	Out of stock.
	WASHER	$0.00	Out of stock.
88A	BUSHING	$84.60
89	BEARING ASSY	$0.00	Out of stock.
90	GUIDE	$0.00	Out of stock.
	BOLT (PKG of 10)	$8.50
	WASHER (PKG of 10)	$6.60
91	SPROCKET	$0.00	Out of stock.
	SET SCREW (PKG of 10)	$36.00
92	SPROCKET, DRIVEN	$0.00	Out of stock.
93	SPROCKET DRIVING	$54.39
94	CHAIN	$0.00	Out of stock.
	LINK (PKG of 10)	$14.50	Out of stock.
	LINK, CONNECTING (PKG of 5)	$9.85	Out of stock.
	LINK (PKG of 5)	$8.25
95	CHAIN (PKG of 10)	$76.00
96	SPACER	$33.50
97	PLATE WEAR	$14.25
	SCREW (PKG of 10)	$16.50
98	SHIM	$9.05

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Twister

Product Description

Twister

Additional Information

Part Number	282-13976
