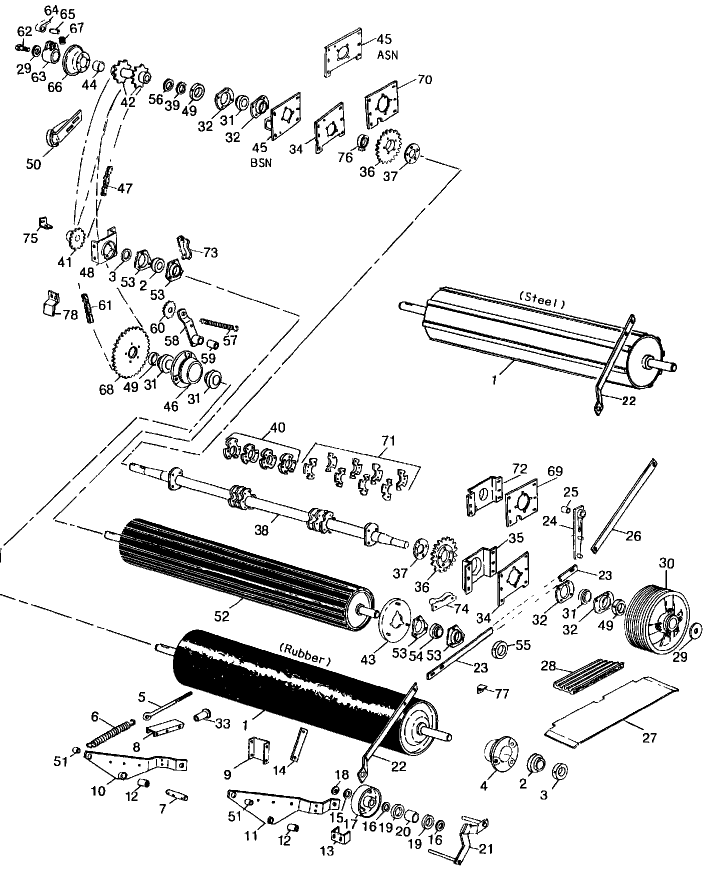

007 MAIN FRAME ROLLS & DRIVE

Key	Product Name	Price	Qty
1	007 MAIN FRAME ROLLS & DRIVE	$0.00	Out of stock.
1	KIT	$0.00	Out of stock.
1	007 MAIN FRAME ROLLS & DRIVE	$0.00	Out of stock.
1	007 MAIN FRAME ROLLS & DRIVE	$0.00	Out of stock.
2	BEARING BALL	$38.85
3	COLLAR RETAINER	$8.31	Out of stock.
4	BEARING ASSY	$358.97
	BOLT (PKG of 10)	$5.50
	WASHER (PKG of 2)	$1.80
	NUT LOCK (PKG of 60)	$13.20
5	EYEBOLT	$0.00	Out of stock.
	NUT (PKG of 20)	$7.40
6	SPRING	$0.00	Out of stock.
7	PIN	$19.50	Out of stock.
	WASHER (PKG of 5)	$10.00
	PIN SPLIT (COTTER) (PKG of 20)	$8.80
8	CHANNEL	$5.23
	BOLT (PKG of 10)	$2.80
	NUT SERRATED (PKG of 25)	$4.50
9	CHANNEL	$0.00	Out of stock.
10	ARM	$0.00	Out of stock.
11	LEVER	$0.00	Out of stock.
	WASHER (PKG of 10)	$32.00
12	BUSHING	$28.50
13	CHANNEL	$77.15
	BOLT SERRATED (PKG of 10)	$15.50
14	GUIDE	$0.00	Out of stock.
	SCREW HEX SOC (PKG of 5)	$18.25
15	SPACER (PKG of 5)	$29.50
16	WASHER (PKG of 5)	$18.00
17	WHEEL, IDLER	$0.00	Out of stock.
	BOLT (PKG of 2)	$10.80
	WASHER LOCK (PKG of 2)	$4.00
	NUT JAM (PKG of 10)	$24.00
	NUT (PKG of 5)	$6.00
18	WASHER (PKG of 10)	$13.20
19	BEARING BALL	$12.40
20	SPACER	$0.00	Out of stock.
21	SUPPORT	$0.00	Out of stock.
22	LINK, CONNECTING	$0.00	Out of stock.
23	STRAP	$11.87
	BOLT CARRIAGE (PKG of 10)	$11.00
	NUT SERRATED (PKG of 50)	$21.50
	WASHER (PKG of 10)	$1.40
	PIN SPLIT (COTTER) (PKG of 50)	$5.00
24	ARM	$104.19
	WASHER (PKG of 10)	$5.20
	PIN SPLIT (COTTER) (PKG of 20)	$2.20
25	BUSHING, DRIVE	$25.19
25	BUSHING	$21.75
26	STRAP	$40.50
27	GUIDE	$0.00	Out of stock.
	SCREW SELF-TAP (PKG of 25)	$28.75
28	V-BELT	$452.70
28	V-BELT	$366.50
29	WASHER (PKG of 5)	$68.75
	BOLT (PKG of 10)	$8.10
	WASHER LOCK (PKG of 25)	$4.75
30	PULLEY	$0.00	Out of stock.
31	BEARING BALL	$40.00	Out of stock.
32	FLANGE	$5.34
	BOLT CARRIAGE (PKG of 10)	$25.00
	WASHER (PKG of 10)	$6.90
33	SPACER	$0.00	Out of stock.
34	SUPPORT	$0.00	Out of stock.
34	SUPPORT	$0.00	Out of stock.
35	SHIELD	$28.76	Out of stock.
	BOLT (PKG of 10)	$6.60
35	SUPPORT	$120.78
36	SPROCKET	$291.20
37	SHIM	$85.25
38	SHAFT	$2,085.00	Out of stock.
39	WASHER (PKG of 5)	$178.50
40	SPROCKET	$89.75
	BOLT (PKG of 10)	$9.90
	NUT LOCK (PKG of 10)	$1.30
41	SPROCKET	$175.20
	KEY WOODRUFF (PKG of 5)	$35.75
	SET SCREW (PKG of 10)	$18.50
	NUT JAM (PKG of 10)	$7.70
	SPROCKET, DRIVING	$63.16	Out of stock.
42	SPROCKET DRIVING	$868.00
43	SUPPORT	$0.00	Out of stock.
	NUT (PKG of 25)	$3.00
44	BUSHING	$61.40
45	SUPPORT	$0.00	Out of stock.
45	SUPPORT	$28.11
46	BEARING ASSY	$0.00	Out of stock.
47	CHAIN	$36.61	Out of stock.
	LINK (PKG of 2)	$8.70
	LINK, CONNECTING (PKG of 10)	$22.90	Out of stock.
	LINK, OFFSET	$2.55	Out of stock.
48	SUPPORT	$0.00	Out of stock.
	BOLT (PKG of 10)	$1.50
48	SUPPORT	$0.00	Out of stock.
48	SUPPORT	$0.00	Out of stock.
49	COLLAR	$18.43
50	IDLER	$260.00	Out of stock.
	BOLT (PKG of 10)	$13.50
	BOLT CARRIAGE (PKG of 8)	$4.24
	SPACER (PKG of 5)	$12.25
	BOLT (PKG of 5)	$4.20
	WASHER (PKG of 5)	$8.00
50	WHEEL, IDLER	$202.00
51	HUB	$15.25
52	007 MAIN FRAME ROLLS & DRIVE	$0.00	Out of stock.
53	FLANGE (PKG of 2)	$6.20	Out of stock.
54	BEARING BALL	$24.00	Out of stock.
55	COLLAR	$11.50
56	WASHER (PKG of 5)	$16.75
57	SPRING	$7.63
58	ARM	$89.04	Out of stock.
	WASHER (PKG of 10)	$11.50
	PIN SPLIT (COTTER) (PKG of 20)	$10.20
59	BUSHING	$16.55
60	SPROCKET	$29.20
	BOLT (PKG of 5)	$12.75
	WASHER LOCK (PKG of 10)	$2.50
	NUT (PKG of 5)	$3.30
61	CHAIN	$0.00	Out of stock.
61	CHAIN	$77.21	Out of stock.
63	SUPPORT	$0.00	Out of stock.
64	DOG (PKG of 2)	$25.58	Out of stock.
65	PIN	$39.50
	PIN SPLIT (COTTER) (PKG of 20)	$5.40
66	CLUTCH	$42.50
	BOLT (PKG of 10)	$30.50
	WASHER LOCK (PKG of 10)	$1.90
67	SPRING (PKG of 10)	$72.50
68	GEAR	$441.00	Out of stock.
	KEY WOODRUFF (PKG of 5)	$56.25
	SET SCREW (PKG of 10)	$30.00
69	SUPPORT	$0.00	Out of stock.
70	SUPPORT	$0.00	Out of stock.
71	SPARE PART	$48.00	Out of stock.
72	SHIELD	$139.45
73	GUIDE	$0.00	Out of stock.
74	GUIDE	$0.00	Out of stock.
75	NOT SERVICED	$0.00	Out of stock.
76	RING	$0.00	Out of stock.
77	ANGLE	$15.00
	BOLT (PKG of 10)	$1.50
	NUT (PKG of 10)	$1.40
78	BRACKET	$0.00	Out of stock.
	BOLT SERRATED (PKG of 5)	$7.00
	PIN SPLIT (COTTER) (PKG of 10)	$4.00
