New Holland 585 Section 02A01 ENGINE, CLUTCH AND THROTTLE

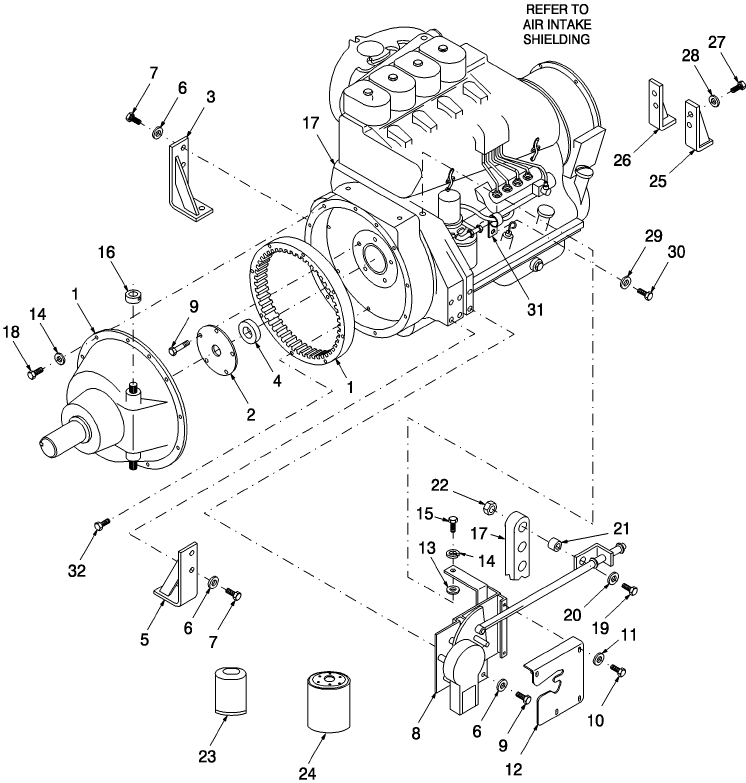

02A01 ENGINE, CLUTCH AND THROTTLE

Double click on above image to view full picture

Key	Product Name	Price	Qty
1	NOT SERVICED	$0.00	Out of stock.
2	SHIELD	$3.02	Out of stock.
3	MOUNT, ENGINE	$138.83
4	BEARING ASSY	$112.13	Out of stock.
5	MOUNT, ENGINE	$138.83
6	WASHER LOCK (PKG of 2)	$2.10
7	BOLT (PKG of 5)	$11.25
9	BOLT (PKG of 10)	$19.50
10	BOLT (PKG of 10)	$3.80
11	WASHER BELLEVILLE (PKG of 100)	$37.00
12	SHIELD	$23.88
13	WASHER (PKG of 50)	$10.00
14	WASHER BELLEVILLE (PKG of 50)	$32.00
15	BOLT (PKG of 10)	$7.50
16	COLLAR	$2.23	Out of stock.
18	BOLT (PKG of 10)	$13.50
19	BOLT (PKG of 10)	$1.50
20	WASHER (PKG of 25)	$1.50
21	SPACER (PKG of 2)	$21.80
22	NUT (PKG of 10)	$1.40
23	FILTER	$0.00	Out of stock.
24	FILTER ENGINE OIL (PKG of 6)	$146.40
25	ANGLE	$54.10
26	ANGLE	$51.96
27	BOLT (PKG of 5)	$49.75
28	WASHER BELLEVILLE (PKG of 10)	$17.00
29	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
31	CLAMP	$7.35
32	BOLT (PKG of 5)	$6.75
30	BOLT (PKG of 10)	$8.90

Add Items to Cart

Clutch Assy., Refer to Component Breakdown

Clutch Assy., Refer to Component Breakdown

Part Number	585-56086
Section	Section
