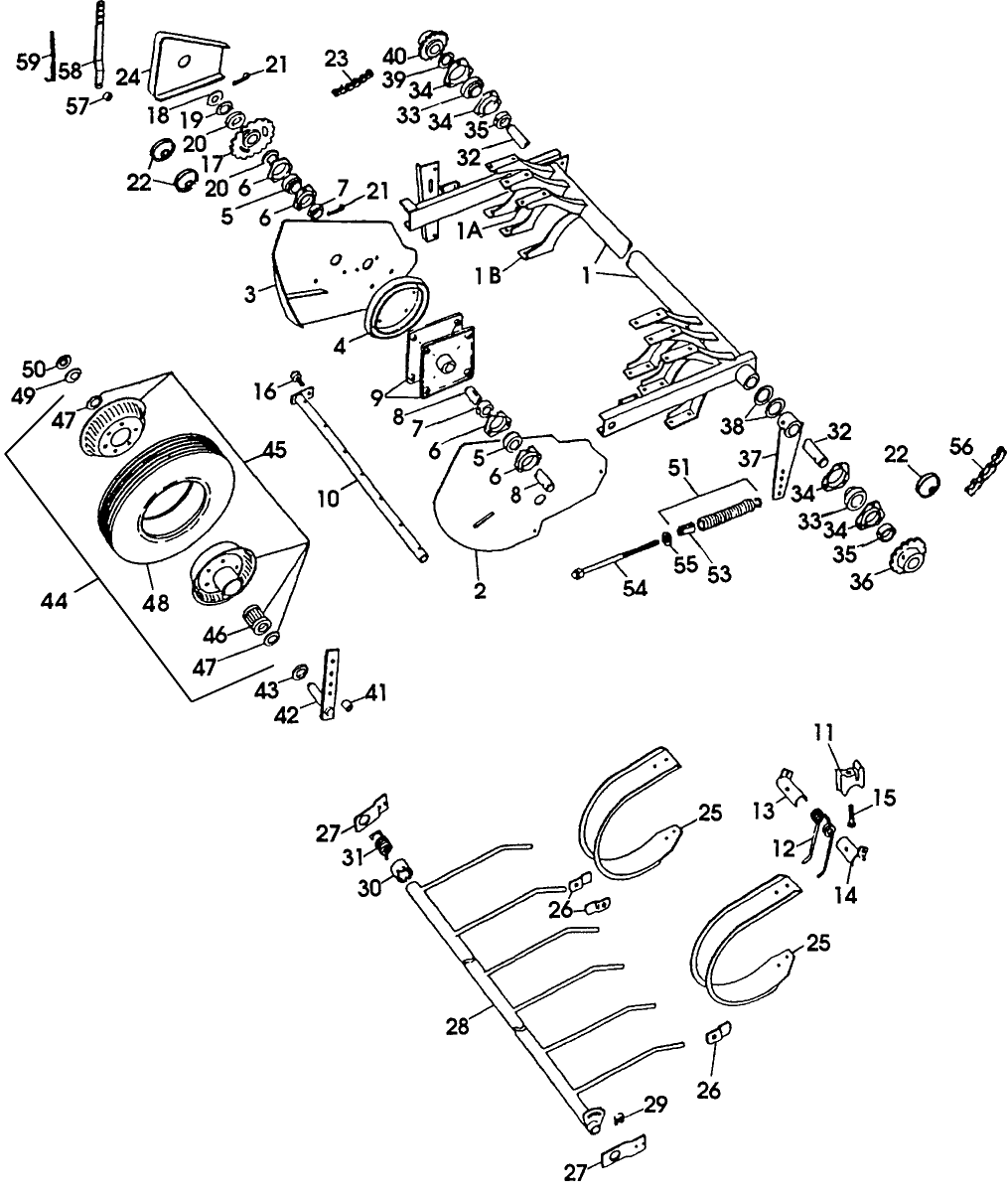

017 PICKUP, STANDARD

Key	Product Name	Price	Qty
1	PIPE	$0.00	Out of stock.
	BOLT (PKG of 10)	$4.90
	NUT LOCK (PKG of 60)	$13.20
1A	SUPPORT	$425.00
1B	SUPPORT	$10.82	Out of stock.
2	PLATE	$0.00	Out of stock.
	BOLT (PKG of 10)	$8.50
	SCREW (PKG of 10)	$32.50
	WASHER LOCK (PKG of 10)	$1.90
	NUT (PKG of 25)	$3.00
3	017 PICKUP, STANDARD	$0.00	Out of stock.
	BOLT (PKG of 10)	$12.50
4	CAM	$1,334.00
	BOLT (PKG of 10)	$1.50
	WASHER (PKG of 50)	$10.00
5	BEARING, BALL	$0.00	Out of stock.
6	FLANGE	$0.00	Out of stock.
	BOLT (PKG of 10)	$8.00
7	CLIP, HOSE	$0.00	Out of stock.
8	SHAFT	$0.00	Out of stock.
9	DISC	$280.00
	KEY WOODRUFF (PKG of 5)	$38.75
10	PIPE	$261.85
	WASHER (PKG of 10)	$55.00
11	SPACER (PKG of 5)	$227.50
12	FINGER (PKG of 5)	$19.50
13	BRACKET (PKG of 5)	$376.50
14	BRACKET (PKG of 5)	$53.75
15	BOLT	$23.00
16	FOLLOWER CAM	$21.13
	NUT LOCK (PKG of 10)	$5.20
17	SPROCKET DRIVEN	$365.00
18	WASHER (PKG of 10)	$17.50
20	WASHER	$7.40
22	WHEEL IDLER	$110.05
	BOLT CARRIAGE (PKG of 5)	$31.00
	BOLT (PKG of 2)	$2.10
	BOLT (PKG of 5)	$14.50
	WASHER (PKG of 10)	$4.20
	WASHER LOCK (PKG of 25)	$4.75
	NUT (PKG of 20)	$7.40
23	CHAIN	$25.87	Out of stock.
	LINK (PKG of 10)	$31.60	Out of stock.
	LINK, OFFSET (PKG of 10)	$57.80	Out of stock.
	LINK (PKG of 10)	$17.20
23	CHAIN	$27.00
24	GUARD	$104.17	Out of stock.
25	GUARD	$143.40
	SCREW SELF-TAP (PKG of 25)	$25.00
26	BRACKET	$0.65
	SCREW (PKG of 10)	$22.00
	WASHER LOCK (PKG of 10)	$1.00
	NUT (PKG of 20)	$2.20
27	BRACKET	$0.00	Out of stock.
28	WINDGUARD	$0.00	Out of stock.
	PIN SPLIT (COTTER) (PKG of 10)	$6.00
29	SPACER	$4.40
	BOLT (PKG of 10)	$5.50
30	HOLDER	$55.50
31	SPRING (PKG of 2)	$152.40
32	SHAFT	$0.00	Out of stock.
33	BEARING BALL	$17.50	Out of stock.
34	BEARING FLANGED	$16.25	Out of stock.
	BOLT (PKG of 10)	$2.80
	BOLT CARRIAGE (PKG of 10)	$5.40
	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
	NUT (PKG of 20)	$5.40
35	COLLAR	$2.23	Out of stock.
36	SPROCKET DRIVEN	$243.05
	KEY WOODRUFF (PKG of 10)	$23.40	Out of stock.
37	LEVER	$0.00	Out of stock.
	SET SCREW	$8.95
	NUT JAM (PKG of 10)	$30.60	Out of stock.
38	WASHER (PKG of 5)	$495.00
39	WASHER (PKG of 5)	$10.00
	WASHER (PKG of 10)	$33.50
40	SPROCKET, DRIVEN	$126.00	Out of stock.
41	SPACER	$89.00	Out of stock.
42	BRACKET	$404.54
	BOLT (PKG of 2)	$7.92	Out of stock.
	WASHER LOCK (PKG of 10)	$2.50
43	WASHER (PKG of 10)	$13.20
44	WHEEL ASSY	$104.93	Out of stock.
	PIN SPLIT (COTTER) (PKG of 20)	$10.20
45	WHEEL ASSY	$52.00	Out of stock.
46	BEARING ROLLER	$21.00	Out of stock.
47	WASHER SEALING (PKG of 5)	$41.00
48	TYRE/TIRE	$0.00	Out of stock.
49	WASHER (PKG of 10)	$16.50
50	WASHER LOCK (PKG of 5)	$36.50
51	SPRING	$0.00	Out of stock.
53	NUT	$0.00	Out of stock.
54	SHAFT	$0.00	Out of stock.
55	WASHER (PKG of 10)	$6.90
56	CHAIN	$28.49	Out of stock.
57	SPACER (PKG of 2)	$28.50
58	LEVER	$0.00	Out of stock.
	WASHER (PKG of 10)	$1.40
59	PIN	$5.10	Out of stock.
	BOLT (PKG of 10)	$1.30
	WASHER (PKG of 25)	$1.50
	PIN SPLIT (COTTER) (PKG of 10)	$4.00

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Pivot Pipe

Product Description

Pivot Pipe

Additional Information

Part Number	276-39431
