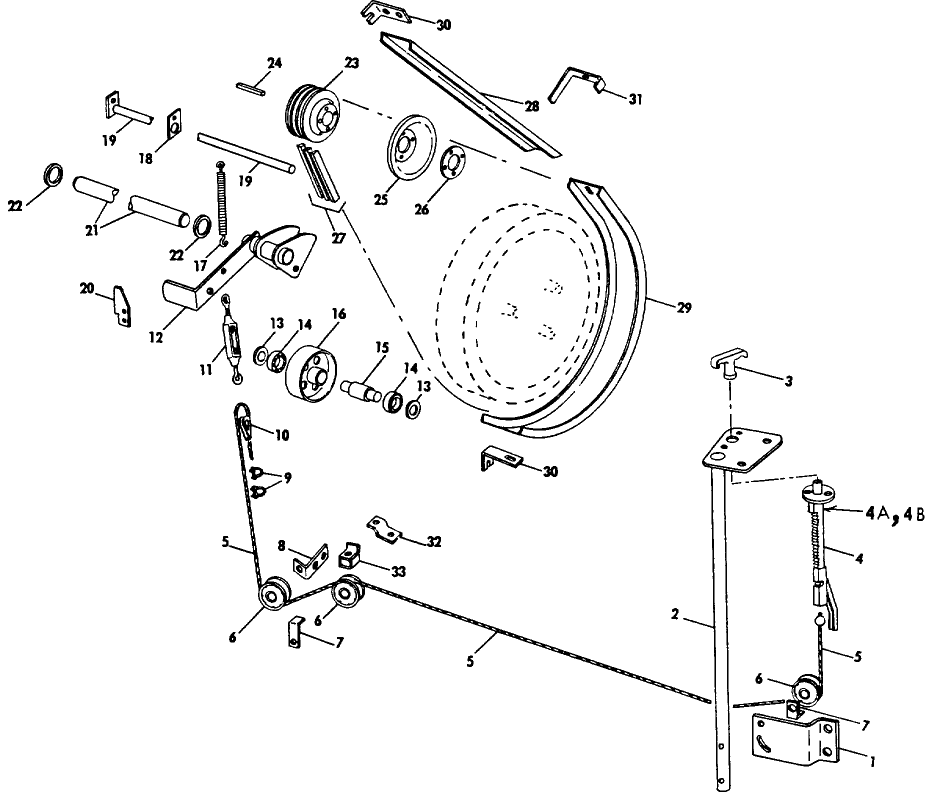

030 ENGINE & V-BELT DRIVE CONTROL, 272

Key	Product Name	Price	Qty
1	BRACKET	$0.00	Out of stock.
	BOLT (PKG of 10)	$8.10
	WASHER LOCK (PKG of 25)	$4.75
	NUT (PKG of 20)	$7.40
2	SUPPORT	$0.00	Out of stock.
	BOLT (PKG of 10)	$12.50
	WASHER (PKG of 50)	$10.00
	WASHER LOCK (PKG of 10)	$1.90
	NUT (PKG of 25)	$3.00
3	HANDLE	$0.00	Out of stock.
	PIN GROOVED (PKG of 10)	$35.50
4	GEAR, RING	$0.00	Out of stock.
	SCREW (PKG of 10)	$36.50
	BOLT (PKG of 20)	$9.80
	WASHER (PKG of 10)	$1.90
	WASHER LOCK (PKG of 10)	$1.00
	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
	NUT (PKG of 20)	$2.20
	NUT (PKG of 20)	$5.40
4A	PAWL	$0.00	Out of stock.
4B	SPRING	$0.00	Out of stock.
5	CABLE	$0.00	Out of stock.
6	PULLEY	$0.00	Out of stock.
	BOLT (PKG of 5)	$4.75
	BOLT (PKG of 5)	$8.25
7	GUARD	$1.57	Out of stock.
8	BRACKET	$0.00	Out of stock.
	BOLT (PKG of 10)	$1.50
9	CLAMP	$3.81	Out of stock.
10	GUIDE	$0.00	Out of stock.
11	BUCKLE	$22.19
	BOLT (PKG of 10)	$5.40
12	No Longer Serviced	$0.00	Out of stock.
13	WASHER (PKG of 2)	$12.30
14	BEARING BALL	$16.15
15	SLEEVE	$26.79
	BOLT (PKG of 5)	$8.75
16	PULLEY	$0.00	Out of stock.
17	SPRING (PKG of 5)	$16.83
18	TAB, LOCKING	$0.00	Out of stock.
19	GUIDE	$0.00	Out of stock.
	BOLT (PKG of 10)	$5.50
	WASHER LOCK (PKG of 5)	$5.50
20	LATCH	$0.00	Out of stock.
21	SHAFT	$0.00	Out of stock.
22	WASHER (PKG of 5)	$10.00
23	PULLEY	$0.00	Out of stock.
	PULLEY	$0.00	Out of stock.
	SET SCREW (PKG of 10)	$27.50
25	WHEEL	$0.00	Out of stock.
26	REINFORCEMENT	$7.81
	BOLT (PKG of 10)	$2.80
27	V-BELT	$99.90
	SET OF BELTS	$66.16
	V-BELT	$37.00
28	SHIELD	$0.00	Out of stock.
29	GUARD	$0.00	Out of stock.
30	SUPPORT	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$10.00
	WASHER (PKG of 10)	$0.55
31	BRACKET	$0.00	Out of stock.
32	BRACKET	$0.00	Out of stock.
33	GUARD	$0.00	Out of stock.
	BOLT (PKG of 5)	$7.00
	PIN SPLIT (COTTER) (PKG of 10)	$4.00

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Bracket

Product Description

Bracket

Additional Information

Part Number	272-9099
