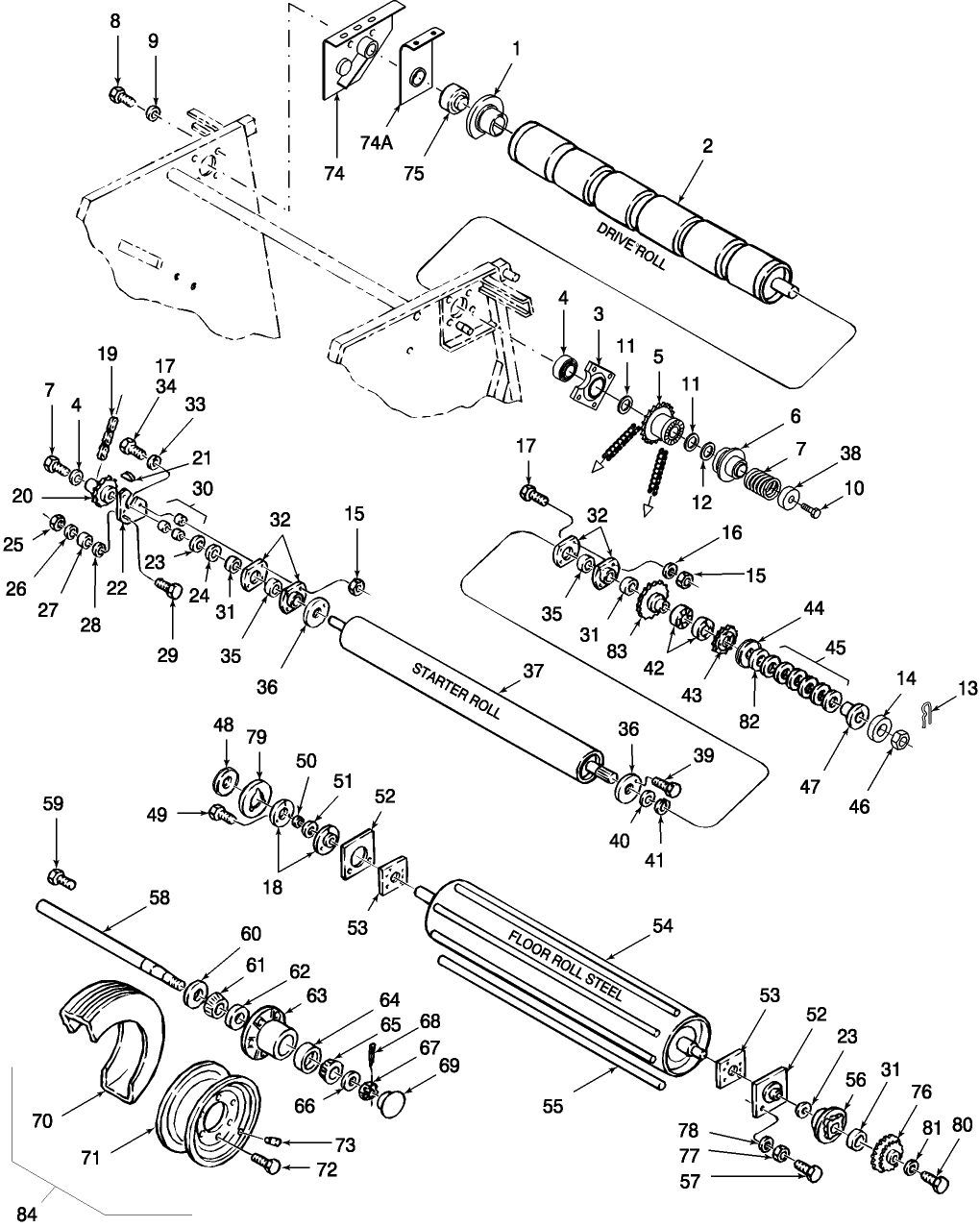

004 MAIN FRAME DRIVE, STARTER & FLOOR ROLLER

Key	Product Name	Price	Qty
1	SUPPORT	$233.00
1	SUPPORT	$571.20
2	ROLLER	$638.51	Out of stock.
3	FLANGE	$375.80
	NIPPLE LUBE (PKG of 5)	$16.25
	BOLT CARRIAGE (PKG of 5)	$4.30
	BOLT SERRATED (PKG of 10)	$35.00
	NUT (PKG of 20)	$11.60
	BOLT CARRIAGE (PKG of 20)	$64.00
4	BEARING	$334.52
5	CLUTCH	$0.00	Out of stock.
	BUSHING	$57.40
5	CLUTCH	$0.00	Out of stock.
	BUSHING	$12.85	Out of stock.
6	CLUTCH	$84.21	Out of stock.
7	SPRING	$36.50
8	BOLT (PKG of 10)	$7.50
9	WASHER (PKG of 10)	$48.50
10	BOLT	$61.26
	NIPPLE LUBE (PKG of 10)	$12.50
11	WASHER (PKG of 5)	$21.75
12	RING SNAP (PKG of 2)	$12.60
14	COLLAR	$107.00
15	NUT (PKG of 10)	$4.80
16	WASHER (PKG of 10)	$6.90
17	BOLT (PKG of 10)	$19.50
18	FLANGE	$0.00	Out of stock.
19	CHAIN	$43.00
	LINK, OFFSET	$2.55	Out of stock.
20	SPROCKET, DRIVEN	$0.00	Out of stock.
21	KEY WOODRUFF (PKG of 5)	$56.25
22	SUPPORT	$205.00	Out of stock.
23	WASHER (PKG of 5)	$3.20
24	WASHER (PKG of 5)	$18.50
25	NUT LOCK (PKG of 10)	$4.10
26	WASHER (PKG of 10)	$4.20
27	WHEEL IDLER	$28.00
28	WASHER (PKG of 5)	$12.75
29	BOLT CARRIAGE (PKG of 5)	$32.50
30	SPACER	$109.00
31	COLLAR	$6.73	Out of stock.
32	BEARING FLANGED	$9.34
33	WASHER LOCK (PKG of 25)	$4.75
34	BOLT (PKG of 5)	$18.50
35	BEARING BALL	$39.50	Out of stock.
36	RING	$12.94	Out of stock.
37	ROLLER	$694.29	Out of stock.
38	CAP	$133.30
39	BOLT SERRATED (PKG of 10)	$50.00
40	WASHER	$12.90
41	SHIM (PKG of 2)	$11.20
42	CLUTCH	$40.50	Out of stock.
43	SPROCKET	$206.60
44	WASHER (PKG of 2)	$64.50
45	WASHER BELLEVILLE (PKG of 2)	$45.60
46	NUT SLOTTED	$3.95
47	HUB	$199.00
48	RING	$15.00
49	BOLT (PKG of 5)	$38.10
50	BEARING BALL	$38.85
51	COLLAR RETAINER	$8.31	Out of stock.
52	PLATE	$87.20
53	PLATE	$41.25
54	ROLLER	$801.88	Out of stock.
55	KIT	$60.00
56	HOUSING, BEARING	$0.00	Out of stock.
57	BOLT (PKG of 5)	$11.25
58	SPINDLE	$940.80
59	BOLT	$28.85
60	SEAL	$9.45	Out of stock.
61	BEARING ROLLER	$24.05
62	BEARING CUP	$9.85
63	HUB	$350.00
	BOLT (PKG of 5)	$45.50
	WASHER (PKG of 10)	$41.50
	SPACER	$24.90
	NUT LOCK (PKG of 5)	$14.50
64	BEARING CUP	$7.25
65	BEARING CONE	$11.00	Out of stock.
66	WASHER (PKG of 5)	$38.00
67	NUT SLOTTED (PKG of 2)	$14.70
68	PIN SPLIT (COTTER) (PKG of 20)	$10.20
69	HUB CAP	$8.75
70	TYRE/TIRE	$377.60	Out of stock.
71	WHEEL	$393.80
72	WHEEL BOLT (PKG of 2)	$6.70
73	VALVE STEM (PKG of 5)	$60.00
74	SUPPORT	$174.37
74A	SUPPORT	$36.35
75	BEARING BALL	$175.85
76	SPROCKET, DRIVING	$128.12	Out of stock.
78	NUT LOCK (PKG of 5)	$4.80
79	RING	$103.90
80	BOLT (PKG of 10)	$11.00
81	WASHER (PKG of 5)	$76.25
82	WASHER (PKG of 2)	$34.00
83	SPROCKET, DRIVING	$84.53	Out of stock.
84	16.00(1) ADAPTER KIT, 360N4, 360N6 & 360W5, MODEL YEAR 2003 AND LATER, FX HARVESTERS	$0.00	Out of stock.
13	PIN SPLIT (COTTER) (PKG of 10)	$4.60
