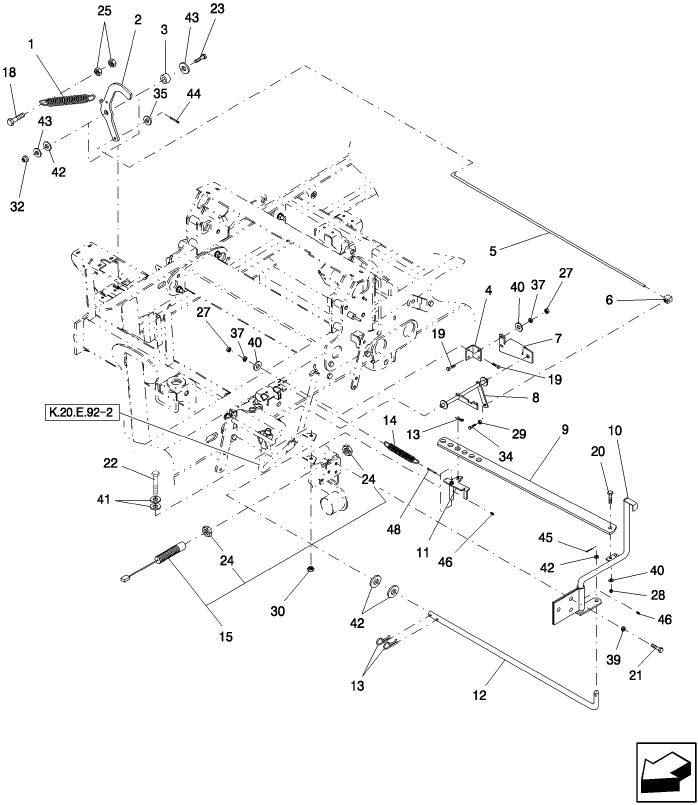

New Holland BW28 General K.20.E.92(5) BALE TRIP, LH, BW28

K.20.E.92(5) BALE TRIP, LH, BW28

Double click on above image to view full picture

Key	Product Name	Price	Qty
1	SPRING	$36.00
2	ARM	$21.03	Out of stock.
3	SPACER	$4.28	Out of stock.
4	ANGLE	$33.50
5	ROD	$112.25
6	CLAMP	$117.75
7	PLATE	$65.00
8	LATCH ASSY.	$67.20
9	PLATE	$113.15
10	ARM TRIP	$650.35
11	CRANK	$214.20
12	ROD	$90.85
13	PIN SPLIT (COTTER) (PKG of 4)	$8.60
14	SPRING	$76.90
15	SENSOR	$103.70
18	BOLT (PKG of 10)	$13.00
19	BOLT FLANGE (PKG of 5)	$3.35
20	BOLT (PKG of 10)	$5.60
21	BOLT (PKG of 10)	$8.30
22	BOLT (PKG of 5)	$20.50
23	BOLT (PKG of 5)	$30.00
24	NOT SERVICED SEPARATELY	$0.00	Out of stock.
25	NUT FLANGE (PKG of 10)	$4.20
27	NUT (PKG of 20)	$5.60
28	NUT LOCK (PKG of 60)	$13.20
29	NUT (PKG of 25)	$3.00
30	NUT LOCK (PKG of 10)	$4.20
32	NUT LOCK (PKG of 10)	$9.10
34	SET SCREW (PKG of 10)	$19.00
35	WASHER (PKG of 50)	$10.00
36	WASHER LOCK (PKG of 10)	$1.00
37	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
39	WASHER LOCK (PKG of 25)	$4.75
40	WASHER (PKG of 10)	$1.20
41	WASHER (PKG of 10)	$4.30
42	WASHER (PKG of 10)	$5.30
43	WASHER (PKG of 5)	$26.50
44	PIN SPLIT (COTTER) (PKG of 10)	$33.50
45	PIN SPLIT (COTTER) (PKG of 10)	$4.10
46	NIPPLE LUBE (PKG of 10)	$12.50
48	PIN SPLIT (COTTER) (PKG of 10)	$49.50
49	CONNECTOR ELEC (PKG of 2)	$31.20
50	TERMINAL	$0.00	Out of stock.

Add Items to Cart

Part Number	BW28-414310
Section	General
