• 033 HYDRAULIC CYLINDER, LOAD RACK, ASN 3017

Double click on above image to view full picture

More Views

•

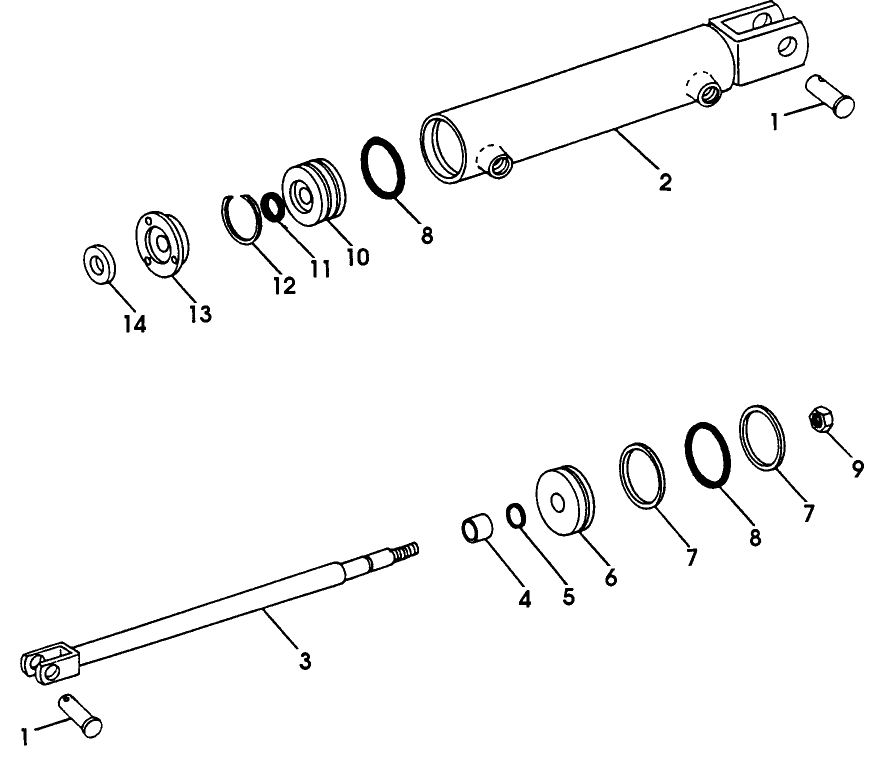

033 HYDRAULIC CYLINDER, LOAD RACK, ASN 3017

Key	Product Name	Price	Qty
	HYDRAULIC CYLINDER	$0.00	Out of stock.
1	PIN	$17.55
2	BARREL	$0.00	Out of stock.
3	ROD	$99.61	Out of stock.
4	SPACER	$83.50
5	O-RING (PKG of 50)	$48.50
6	PISTON	$182.00
7	WASHER	$4.95	Out of stock.
8	O-RING (PKG of 4)	$29.80
9	NUT LOCK	$23.65
10	TABLE	$50.25
11	O-RING (PKG of 5)	$10.00
12	RING SNAP	$1.75
13	CAP	$139.00
	BOLT (PKG of 10)	$1.30
14	SEAL	$16.50
15	KIT	$0.00	Out of stock.
	PIN SPLIT (COTTER) (PKG of 10)	$4.00

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Load Rack

Product Description

Load Rack

Additional Information

Part Number	1033-38575
