• 001 MAIN FRAME

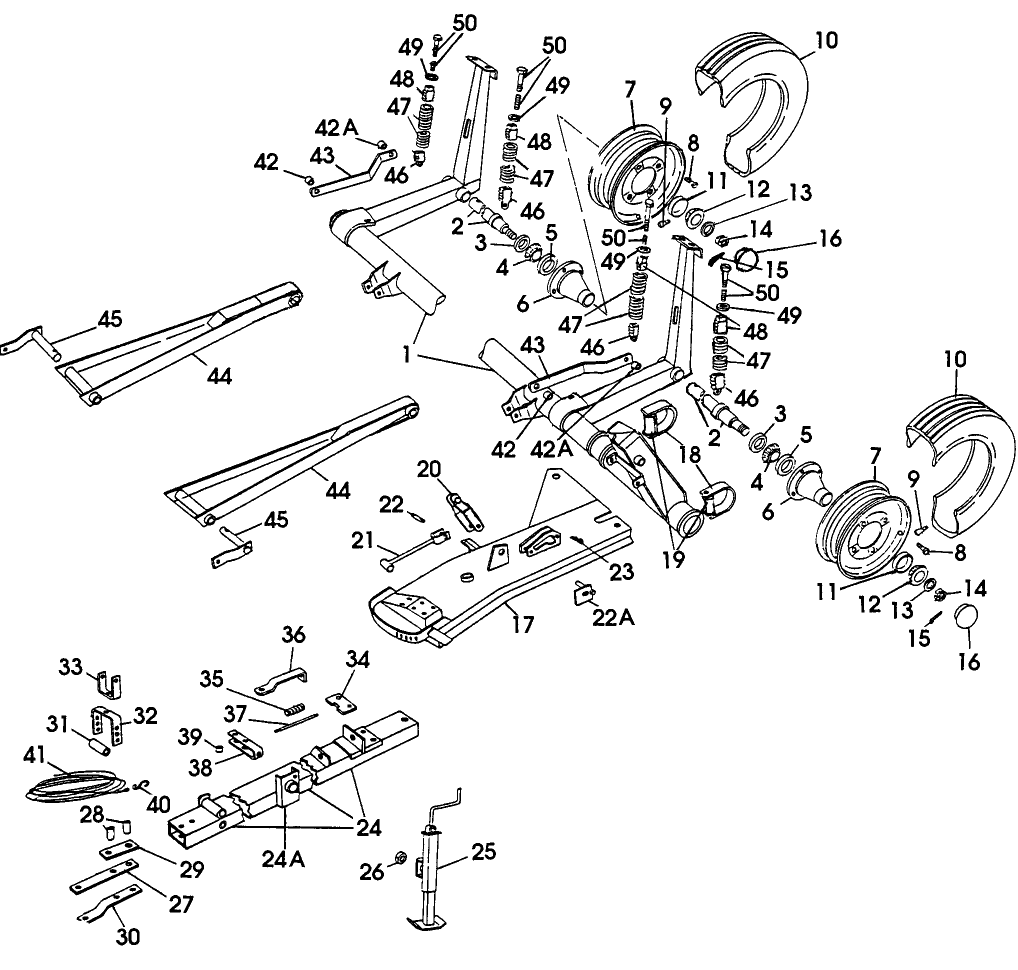

Double click on above image to view full picture

More Views

•

001 MAIN FRAME

Key	Product Name	Price	Qty
1	FRAME	$0.00	Out of stock.
2	SPINDLE	$0.00	Out of stock.
2	SPINDLE	$109.00
	BOLT (PKG of 10)	$8.50
	NUT LOCK (PKG of 60)	$13.20
3	SEAL OIL	$8.55
4	BEARING CONE	$9.75	Out of stock.
5	BEARING CUP	$5.55	Out of stock.
6	HUB	$190.50
7	SCREW	$0.00	Out of stock.
7	RIM	$209.45
8	BOLT (PKG of 10)	$43.50
9	VALVE STEM	$8.25
10	PROCURE LOCALLY	$0.00	Out of stock.
10	TYRE/TIRE	$155.00
11	BEARING CUP	$10.50	Out of stock.
11	BEARING CUP	$12.83
12	BEARING CONE	$7.55	Out of stock.
12	BEARING CONE	$18.55
13	WASHER (PKG of 2)	$5.80
14	NUT SLOTTED (PKG of 2)	$6.90
15	PIN SPLIT (COTTER) (PKG of 20)	$10.20
16	HUB CAP (PKG of 2)	$33.50
17	CAP	$0.00	Out of stock.
18	PLATE	$73.75
19	PIVOTING ARM	$29.70
19	BOLT CARRIAGE	$31.65
19	WASHER (PKG of 5)	$4.35	Out of stock.
19	NUT (PKG of 10)	$15.00
20	SUPPORT	$109.00	Out of stock.
20	BOLT (PKG of 5)	$20.25
20	NUT LOCK (PKG of 10)	$4.10
21	LINK CONNECTING	$535.00
22	PIN	$3.15
22A	PIN	$0.00	Out of stock.
22A	BOLT (PKG of 10)	$4.10
22A	WASHER (PKG of 10)	$0.55
22A	NUT LOCK (PKG of 10)	$1.30
23	PIN, SPLIT (COTTER)	$0.00	Out of stock.
24	DRAWBAR	$678.94	Out of stock.
24	BOLT	$9.40
24	WASHER (PKG of 10)	$5.60
24	NUT (PKG of 5)	$6.00
24A	BRACKET	$234.50
25	JACK	$0.00	Out of stock.
26	COLLAR	$78.40
26	PIN GROOVED (PKG of 10)	$89.00
27	BAR	$170.00
27	CLEVIS	$0.00	Out of stock.
28	SPACER	$18.00
29	SPACER	$52.00
30	BAR	$140.00
30	BOLT (PKG of 5)	$43.50
30	WASHER LOCK (PKG of 10)	$2.50
30	NUT (PKG of 5)	$3.30
30	CLEVIS	$0.00	Out of stock.
31	SPINDLE	$2.30
32	YOKE	$0.00	Out of stock.
32	BOLT (PKG of 5)	$20.00
32	WASHER LOCK (PKG of 25)	$4.75
32	NUT (PKG of 20)	$7.40
33	YOKE	$107.00
33	BOLT (PKG of 5)	$8.25
33	WASHER (PKG of 10)	$36.50
34	PLATE	$7.05	Out of stock.
34	SCREW HEX SOC (PKG of 10)	$21.00
34	SHIELD	$24.75
35	SPRING	$1.62
36	BRACKET	$31.10
37	PIN	$195.00
38	LATCH	$33.15
38	BOLT (PKG of 20)	$9.80
39	SPACER	$17.00
39	BOLT (PKG of 25)	$13.50
40	SPRING	$1.75
41	ROPE	$18.20
42	SPACER	$10.89
42A	SPACER	$20.75
43	LINK CONNECTING	$192.65
43	BOLT (PKG of 5)	$14.50
43	BOLT (PKG of 10)	$13.50
44	LINK CONNECTING	$218.30
44	BOLT (PKG of 2)	$15.40
44	WASHER LOCK (PKG of 10)	$4.40
45	PIN	$83.75
45	BOLT (PKG of 10)	$1.50
46	NUT SPRING	$84.45
46	BOLT (PKG of 2)	$7.92	Out of stock.
46	NUT LOCK (PKG of 10)	$8.90
47	SPRING	$588.00
48	NUT SPRING	$310.00
50	BOLT	$32.50
50	NUT JAM (PKG of 10)	$10.56
22	PIN SPLIT (COTTER) (PKG of 10)	$4.00

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Frame Weld Assy., Main

Product Description

Frame Weld Assy., Main

Additional Information

Part Number	479-37986
