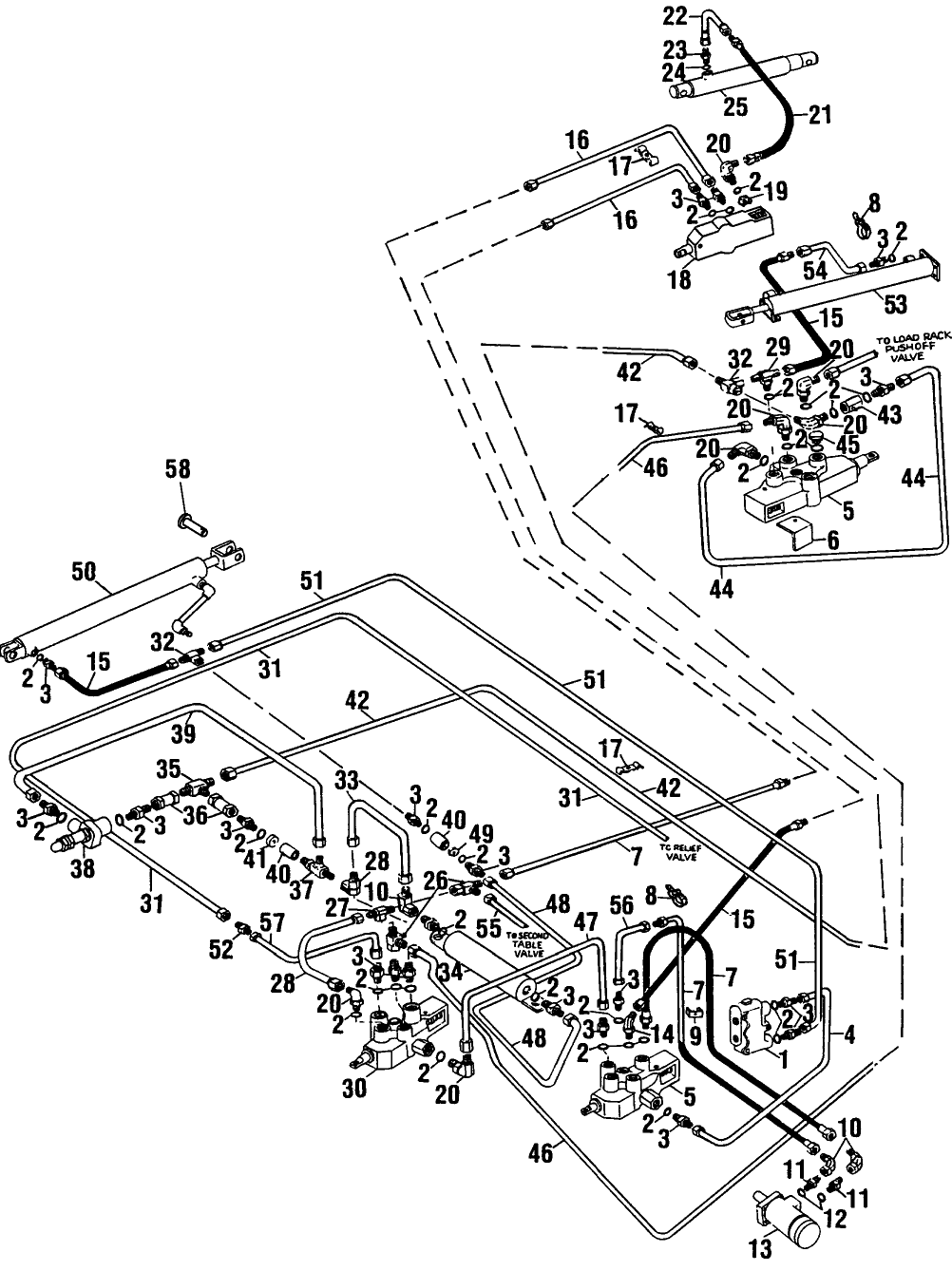

023 HYDRAULIC SYSTEM, ROLLING RACK, SECOND TABLE & UNLOADER, BTWN S/NS 11516 & 11626

Key	Product Name	Price	Qty
1	VALVE HYDRAULIC	$940.00
	BOLT (PKG of 10)	$5.70
	NUT LOCK (PKG of 10)	$1.30
2	O-RING (PKG of 10)	$20.00
3	HYD CONNECTOR	$25.00
4	SPACER	$0.00	Out of stock.
	FERRULE (PKG of 5)	$14.75
	NUT TUBE (PKG of 5)	$27.00
5	VALVE CONTROL	$700.00	Out of stock.
	BOLT (PKG of 10)	$9.90
	WASHER (PKG of 10)	$1.20
	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
	NUT (PKG of 20)	$5.40
6	COVER	$6.51
7	HOSE, FLEXIBLE	$0.00	Out of stock.
8	TIE CABLE (PKG of 10)	$7.00
9	CLAMP	$0.00	Out of stock.
	BOLT (PKG of 20)	$9.80
10	CONNECTOR, HYD.	$0.00	Out of stock.
11	HYD CONNECTOR	$37.20
12	O-RING (PKG of 10)	$15.50
13	MOTOR, HYDRAULIC	$0.00	Out of stock.
	BOLT (PKG of 10)	$8.00
	WASHER LOCK (PKG of 10)	$1.90
14	CONNECTOR, HYD.	$0.00	Out of stock.
15	HOSE	$121.00
	NUT (PKG of 25)	$3.00
16	TUBE, HYD	$0.00	Out of stock.
17	CLIP	$28.00
	BOLT (PKG of 10)	$3.50
	NUT (PKG of 10)	$1.40
18	VALVE, CONTROL	$0.00	Out of stock.
19	ORIFICE	$0.00	Out of stock.
20	ELBOW	$13.38	Out of stock.
21	HOSE	$174.75
22	TUBE, HYD	$0.00	Out of stock.
23	HYD CONNECTOR	$13.50
25	CYLINDER	$0.00	Out of stock.
26	CONNECTION 3 WAY	$35.00
27	CONNECTION, 3 WAY	$27.69	Out of stock.
28	TUBE ASSY.	$0.00	Out of stock.
29	PAD	$0.00	Out of stock.
30	VALVE, CONTROL	$0.00	Out of stock.
31	CUP	$0.00	Out of stock.
32	CONNECTION, 3 WAY	$46.52	Out of stock.
33	TUBE ASSY.	$0.00	Out of stock.
34	CYLINDER	$0.00	Out of stock.
	BOLT (PKG of 10)	$5.50
	BOLT (PKG of 10)	$1.50
	WASHER (PKG of 50)	$10.00
35	CONNECTION 3 WAY	$20.00
36	TUBE, HYD	$0.00	Out of stock.
37	FITTING	$76.20
38	VALVE, HYDRAULIC	$0.00	Out of stock.
39	TUBE, HYD	$0.00	Out of stock.
40	COUPLING	$0.00	Out of stock.
41	ORIFICE	$0.00	Out of stock.
42	SPRING	$0.00	Out of stock.
43	VALVE HYDRAULIC	$1,322.00
44	ROD	$0.00	Out of stock.
45	PLUG HEX	$11.25
46	WASHER	$0.00	Out of stock.
47	TUBE	$0.00	Out of stock.
48	TUBE, HYD	$0.00	Out of stock.
49	ORIFICE	$0.00	Out of stock.
50	HYDRAULIC CYLINDER	$0.00	Out of stock.
50	CYLINDER ASSY.	$638.52	Out of stock.
51	SUPPORT	$0.00	Out of stock.
52	ADAPTER	$31.65
53	HANDLE	$0.00	Out of stock.
54	TUBE, RIGID	$0.00	Out of stock.
55	SPARE PART	$0.00	Out of stock.
56	TUBE, HYD	$0.00	Out of stock.
57	TUBE, HYD	$0.00	Out of stock.
58	PIN	$17.55
24	O-RING (PKG of 50)	$92.50
	PIN SPLIT (COTTER) (PKG of 10)	$4.00

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Valve Assy., Lock-Out, Refer to Fig. 29 'Valve Assy., Lock-Out' for Components

Product Description

Valve Assy., Lock-Out, Refer to Fig. 29 'Valve Assy., Lock-Out' for Components

Additional Information

Part Number	1038-20880
