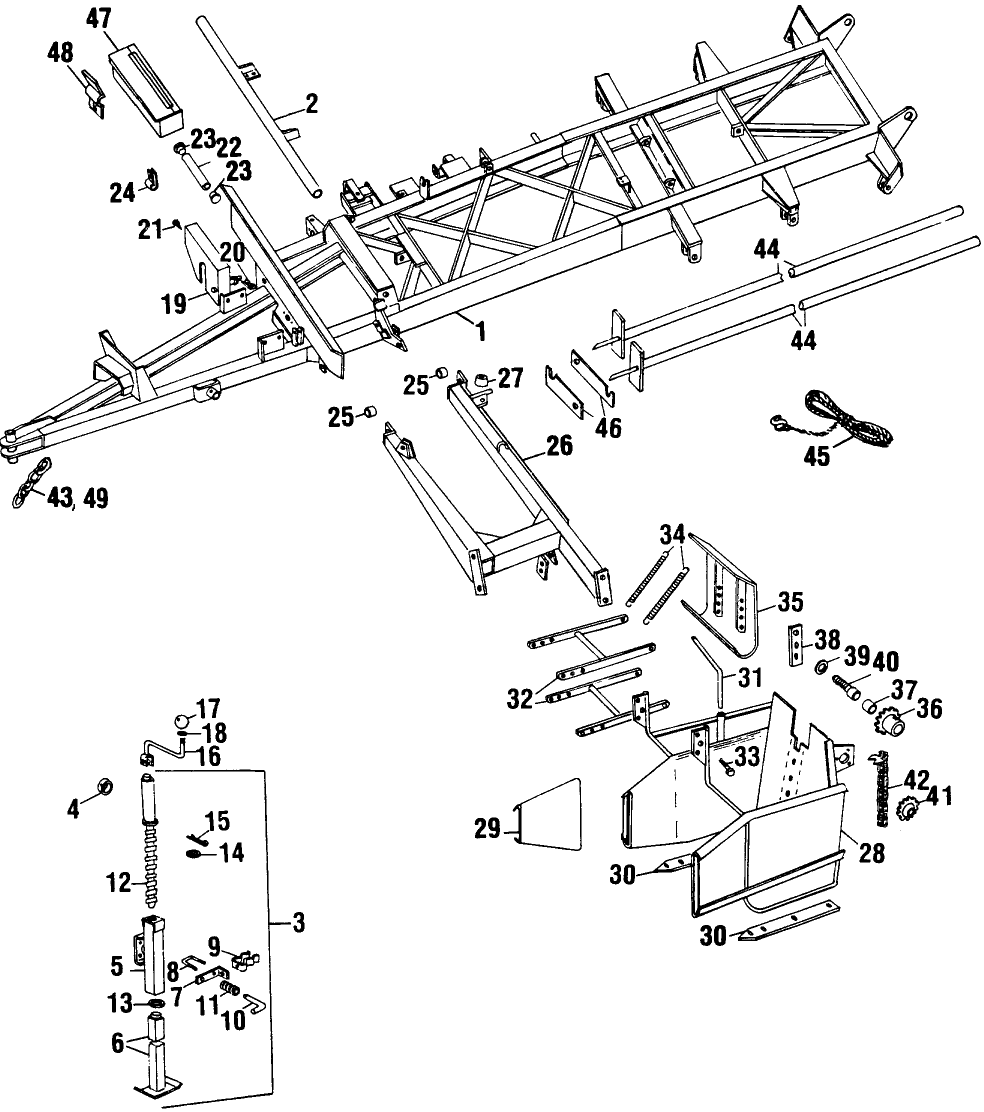

002 MAIN FRAME & BALE LOADER

Key	Product Name	Price	Qty
1	FRAME	$0.00	Out of stock.
	DECAL DANGER	$4.45
	DECAL CAUTION	$5.20
	DECAL DANGER	$3.65
	DECAL WARNING	$25.50
2	GUIDE	$0.00	Out of stock.
	BOLT (PKG of 10)	$1.50
	WASHER (PKG of 10)	$1.40
	WASHER LOCK (PKG of 10)	$1.90
	NUT (PKG of 25)	$3.00
3	JACK	$0.00	Out of stock.
4	COLLAR	$78.40
	PIN GROOVED (PKG of 10)	$89.00
5	BODY	$0.00	Out of stock.
	NIPPLE LUBE (PKG of 10)	$12.00
6	TUBE	$56.28	Out of stock.
7	BRACKET	$39.33
8	U-BOLT (PKG of 5)	$8.45
	NUT (PKG of 10)	$1.40
9	CLIP, SPRING (PKG of 5)	$5.85	Out of stock.
	BOLT (PKG of 10)	$3.80
10	PIN	$4.62	Out of stock.
	PIN SLOTTED (PKG of 20)	$4.62
11	SPRING (PKG of 5)	$2.65
12	JACK SCREW	$255.00	Out of stock.
	PIN (PKG of 10)	$1.50
13	BEARING THRUST	$70.25
14	WASHER (PKG of 10)	$5.60
15	PIN SPLIT (COTTER) (PKG of 20)	$10.20
16	STOP	$146.00
	BOLT (PKG of 10)	$12.50
	WASHER (PKG of 50)	$10.00
17	KNOB	$56.25
18	RING SNAP	$3.50
19	GUARD	$0.00	Out of stock.
20	PIN SPLIT (COTTER) (PKG of 10)	$9.10
21	SCREW (PKG of 5)	$20.00
22	TUBE	$19.25
23	COVER CAP	$1.40
24	CLAMP WIRE	$33.60
	BOLT CARRIAGE (PKG of 10)	$4.60
	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
	NUT (PKG of 20)	$5.40
25	BUSHING (PKG of 5)	$60.00
26	ARM	$3,160.00	Out of stock.
	BOLT (PKG of 5)	$19.25
	WASHER (PKG of 5)	$4.35	Out of stock.
	NUT (PKG of 10)	$15.00
	NUT JAM (PKG of 10)	$24.00
27	BUMPER	$52.75
28	BOX	$9,710.31	Out of stock.
	BOLT (PKG of 10)	$6.60
	BOLT (PKG of 10)	$5.50
	WASHER (PKG of 10)	$4.20
	NUT LOCK (PKG of 10)	$4.10
29	PANEL	$134.00
30	PLATE SKID	$56.50
	BOLT CARRIAGE (PKG of 10)	$6.50
31	ROD	$159.05
	SET SCREW (PKG of 10)	$18.50
32	SUPPORT	$150.00	Out of stock.
	BOLT (PKG of 10)	$5.40
34	SPRING (PKG of 2)	$52.40
35	TRACK SHOE	$71.50	Out of stock.
	BOLT (PKG of 10)	$4.90
36	SPROCKET	$137.96	Out of stock.
	PIN LOCK (PKG of 10)	$55.00
	SET SCREW (PKG of 10)	$37.00
37	BUSHING	$12.40
38	BRACKET	$148.80
39	WASHER (PKG of 10)	$7.80
40	SHAFT	$81.25
	WASHER LOCK (PKG of 10)	$2.50
	NUT (PKG of 5)	$3.30
41	SPROCKET	$131.55
	BOLT (PKG of 5)	$19.25
	WASHER (PKG of 10)	$5.20
	WASHER (PKG of 5)	$29.75
42	CHAIN	$174.00
	LINK CONNECTING (PKG of 2)	$41.00
	LINK CONNECTING	$108.20
	LINK OFFSET (PKG of 5)	$26.00
	LINK CONNECTING	$1.92	Out of stock.
43	SHAFT, ROLLER	$0.00	Out of stock.
	SCREW	$0.00	Out of stock.
	BOLT (PKG of 5)	$3.75
	WASHER (PKG of 10)	$1.70
	NUT LOCK (PKG of 60)	$13.20
	NUT (PKG of 5)	$1.10
44	SPARE PART	$712.75
45	ROPE	$20.01
46	RING, SNAP	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$25.50
	BOLT (PKG of 10)	$1.50
	WASHER (PKG of 25)	$1.50
	NUT WING (PKG of 10)	$6.00
47	BOX TOOL	$113.70
	BOLT CARRIAGE (PKG of 10)	$11.00
48	LATCH	$35.25
	SCREW (PKG of 10)	$7.80
	WASHER (PKG of 20)	$8.20
	WASHER LOCK (PKG of 10)	$2.00
	NUT (PKG of 25)	$20.75
49	CHAIN	$320.35
	KIT	$77.00
	NUT (PKG of 20)	$7.40
	WASHER LOCK (PKG of 25)	$4.75

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Main Frame Weld Assy.

Product Description

Main Frame Weld Assy.

Additional Information

Part Number	1038-20791
