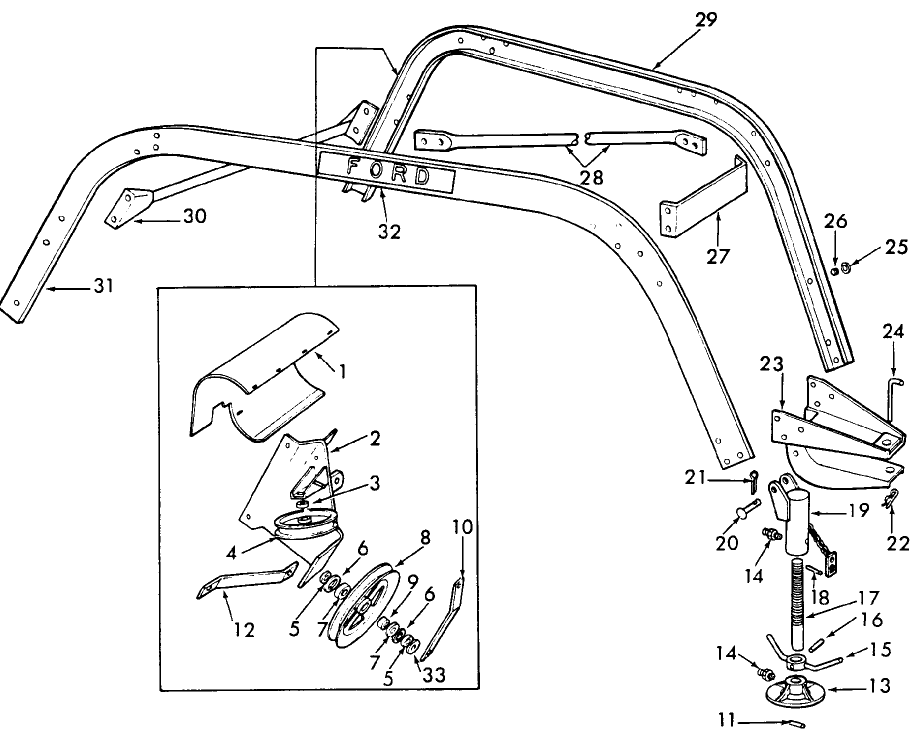

001 MAIN FRAME, IDLER BRACKET & SHEAVES

Key	Product Name	Price	Qty
1	SHIELD	$0.00	Out of stock.
	NOT SERVICED SEPARATELY	$0.00	Out of stock.
	DECAL	$2.79
2	BRACKET	$0.00	Out of stock.
3	SPACER	$0.00	Out of stock.
4	PULLEY	$0.00	Out of stock.
5	SPACER	$0.00	Out of stock.
6	RING	$0.00	Out of stock.
7	BEARING ASSY	$21.25
8	PULLEY	$0.00	Out of stock.
9	SPACER	$0.00	Out of stock.
10	BRACKET	$0.00	Out of stock.
12	SUPPORT	$0.00	Out of stock.
13	BASE	$0.00	Out of stock.
15	HANDLE	$0.00	Out of stock.
17	SCREW	$0.00	Out of stock.
19	001 MAIN FRAME, IDLER BRACKET & SHEAVES	$0.00	Out of stock.
20	RIVET	$0.00	Out of stock.
22	PIN	$0.69
23	HITCH	$0.00	Out of stock.
23	HITCH	$0.00	Out of stock.
	SPACER	$0.00	Out of stock.
24	PIN	$0.00	Out of stock.
26	SPACER	$0.00	Out of stock.
27	SUPPORT	$0.00	Out of stock.
28	SUPPORT	$0.00	Out of stock.
29	FRAME	$0.00	Out of stock.
29	FRAME	$0.00	Out of stock.
30	SUPPORT	$0.00	Out of stock.
31	FRAME	$0.00	Out of stock.
31	FRAME	$0.00	Out of stock.
32	DECAL	$23.00
	DECAL	$0.00	Out of stock.

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Shield, Belt

Product Description

Shield, Belt

Additional Information

Part Number	513-SERIES-20162
