• 004 BALE LOADER, CROSS CONVEYOR & FIRST TABLE

Double click on above image to view full picture

More Views

•

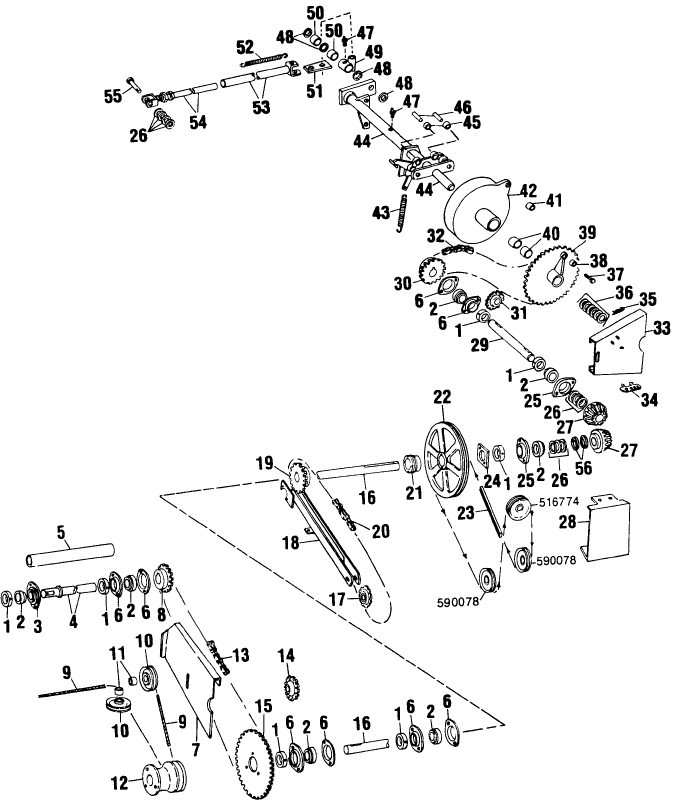

004 BALE LOADER, CROSS CONVEYOR & FIRST TABLE

Key	Product Name	Price	Qty
1	COLLAR	$2.23	Out of stock.
2	BEARING BALL	$17.50	Out of stock.
3	BEARING ASSY	$115.30
	BOLT CARRIAGE (PKG of 10)	$7.80
	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
	NUT (PKG of 20)	$5.60
4	SHAFT	$0.00	Out of stock.
5	SHIELD	$0.00	Out of stock.
6	FLANGE (PKG of 2)	$4.88	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$4.70
7	GUARD	$0.00	Out of stock.
	BOLT (PKG of 10)	$1.50
	WASHER (PKG of 10)	$1.90
	WASHER LOCK (PKG of 10)	$1.00
	NUT (PKG of 20)	$2.20
8	SPROCKET	$115.95
	KEY WOODRUFF (PKG of 10)	$23.40	Out of stock.
	SET SCREW (PKG of 10)	$161.00
9	ROPE	$38.75
10	WHEEL IDLER	$283.40
	WASHER (PKG of 10)	$8.00
	PIN SPLIT (COTTER) (PKG of 20)	$2.20
11	BUSHING	$54.30
12	PULLEY	$468.15	Out of stock.
	KEY	$4.25
	SET SCREW (PKG of 10)	$43.00
13	CHAIN	$43.50
	LINK (PKG of 10)	$14.50	Out of stock.
	LINK (PKG of 5)	$8.25
14	SPROCKET	$43.10
	BOLT (PKG of 5)	$23.25
	WASHER LOCK (PKG of 10)	$2.60
	NUT (PKG of 5)	$3.35
15	SPROCKET	$0.00	Out of stock.
	BOLT (PKG of 10)	$1.50
	WASHER LOCK (PKG of 10)	$1.90
16	SHAFT	$0.00	Out of stock.
17	SPROCKET DRIVEN	$161.60
	BOLT (PKG of 5)	$15.00
	WASHER (PKG of 10)	$6.70
18	CONVEYOR	$0.00	Out of stock.
	BOLT (PKG of 10)	$2.90
	BOLT (PKG of 25)	$13.75
	WASHER (PKG of 10)	$0.55
	NUT LOCK (PKG of 10)	$1.30
19	SPROCKET	$157.00	Out of stock.
20	CHAIN	$0.00	Out of stock.
	LINK (PKG of 2)	$4.22
	LINK CHAIN	$23.25
	LINK OFFSET	$1.30
	LINK CONNECTING (PKG of 2)	$20.50
21	BUSHING, DRIVE	$0.00	Out of stock.
	SCREW	$1.98	Out of stock.
22	PULLEY	$143.75	Out of stock.
23	BELT	$0.00	Out of stock.
24	PLATE	$8.10
25	HOUSING, BEARING	$107.08	Out of stock.
	BOLT CARRIAGE (PKG of 5)	$9.75
26	WASHER (PKG of 10)	$33.00
27	GEAR BEVEL	$327.45
28	GUARD	$0.00	Out of stock.
	BOLT SERRATED (PKG of 10)	$6.30
29	SHAFT	$0.00	Out of stock.
30	SPROCKET, DRIVING	$0.00	Out of stock.
	SET SCREW (PKG of 10)	$36.50
31	SPROCKET	$27.40
	BOLT PLOW (PKG of 5)	$26.25
32	CHAIN	$0.00	Out of stock.
	LINK CHAIN (PKG of 10)	$37.00	Out of stock.
	LINK, OFFSET	$0.00	Out of stock.
	LINK, CONNECTING (PKG of 5)	$25.85	Out of stock.
33	GUARD	$0.00	Out of stock.
	WASHER (PKG of 10)	$1.40
	NUT (PKG of 25)	$3.00
34	HOLDER	$15.35
	BOLT AND NUT (PKG of 10)	$34.00
36	WASHER (PKG of 5)	$47.75
	NUT SPRING (PKG of 10)	$58.00
38	BUSHING SHEAR BOLT	$27.05
39	SPROCKET, DRIVING	$0.00	Out of stock.
	NIPPLE LUBE (PKG of 10)	$12.50
40	BUSHING	$86.30
41	SLEEVE	$4.84	Out of stock.
42	RING	$590.00	Out of stock.
43	SPRING	$27.80
44	GUARD	$0.00	Out of stock.
	BOLT (PKG of 10)	$5.60
	BOLT (PKG of 10)	$8.30
45	ROLLER	$30.95
46	RIVET (PKG of 5)	$28.50
48	WASHER (PKG of 5)	$36.75
49	TUBE	$0.00	Out of stock.
	BOLT (PKG of 5)	$27.25
50	SPACER	$101.00
51	LINK, CONNECTING	$0.00	Out of stock.
52	SPRING (PKG of 2)	$53.50
53	ROD	$0.00	Out of stock.
	BOLT (PKG of 10)	$11.50
54	CLUTCH, PLATE	$0.00	Out of stock.
55	PIN, CLEVIS	$25.74	Out of stock.
56	WASHER (PKG of 5)	$10.25
35	PIN SPLIT (COTTER) (PKG of 10)	$4.70
	PIN SPLIT (COTTER) (PKG of 10)	$4.10
	NUT LOCK (PKG of 60)	$13.20
	NUT (PKG of 20)	$7.60
	WASHER LOCK (PKG of 25)	$4.75
