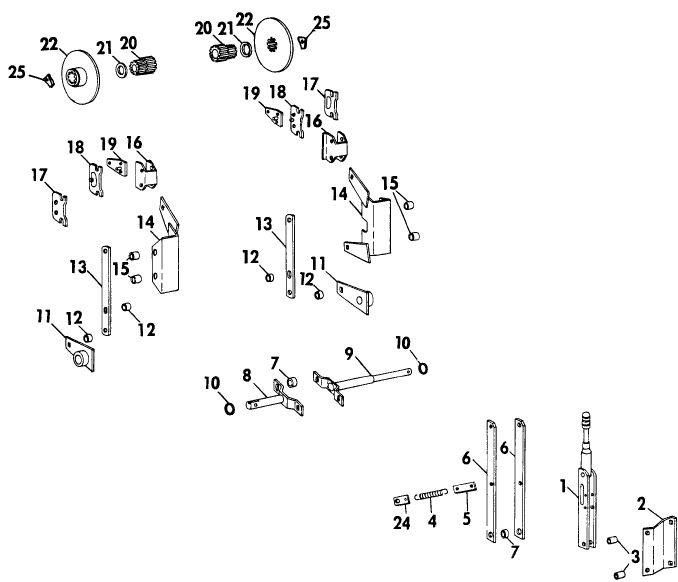

009 PARKING BRAKE GROUP

Key	Product Name	Price	Qty
1	LEVER	$0.00	Out of stock.
2	BRACKET	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$4.60
	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
	NUT (PKG of 20)	$5.40
3	SPACER	$4.34
	BOLT (PKG of 10)	$9.00
4	SPRING	$35.25
5	STRAP	$0.00	Out of stock.
	BOLT (PKG of 10)	$1.50
	WASHER LOCK (PKG of 10)	$1.00
	NUT (PKG of 20)	$2.20
6	LINK, CONNECTING	$0.00	Out of stock.
7	BUSHING (PKG of 5)	$61.75
8	SHAFT	$0.00	Out of stock.
	SCREW	$0.00	Out of stock.
	WASHER (PKG of 10)	$1.40
	WASHER LOCK (PKG of 10)	$1.90
	NUT (PKG of 25)	$3.00
9	SHAFT	$0.00	Out of stock.
10	O-RING (PKG of 10)	$12.00
11	ARM	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$4.10
	WASHER (PKG of 25)	$1.50
	KEY WOODRUFF (PKG of 10)	$25.50
	PIN SPLIT (COTTER) (PKG of 20)	$2.20
12	SPACER (PKG of 5)	$100.00
13	No Longer Serviced	$0.00	Out of stock.
	BOLT (PKG of 10)	$1.30
14	SUPPORT	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$11.50
	WASHER LOCK (PKG of 10)	$20.00
15	SPACER	$8.70
16	BRACKET	$8.85
	SCREW HEX SOC (PKG of 2)	$28.50
	NUT LOCK (PKG of 60)	$13.20
17	BRAKE PAD	$22.86	Out of stock.
18	BRAKE, PAD	$0.00	Out of stock.
	WASHER LOCK (PKG of 10)	$4.70
	NUT	$0.00	Out of stock.
20	PINION DRIVE	$319.20
	PINION DRIVE	$445.00
21	WASHER (PKG of 5)	$49.00
22	BRAKE DISC	$0.00	Out of stock.
	BRAKE DISC	$352.00	Out of stock.
	BOLT (PKG of 10)	$5.50
	PROCURE LOCALLY	$0.00	Out of stock.
24	CLIP	$0.00	Out of stock.
25	WASHER LOCK	$12.50

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Lever Assy.

Product Description

Lever Assy.

Additional Information

Part Number	L778-33170
