• 02B01 MOUNTING PLATE ASSEMBLY

Double click on above image to view full picture

More Views

•

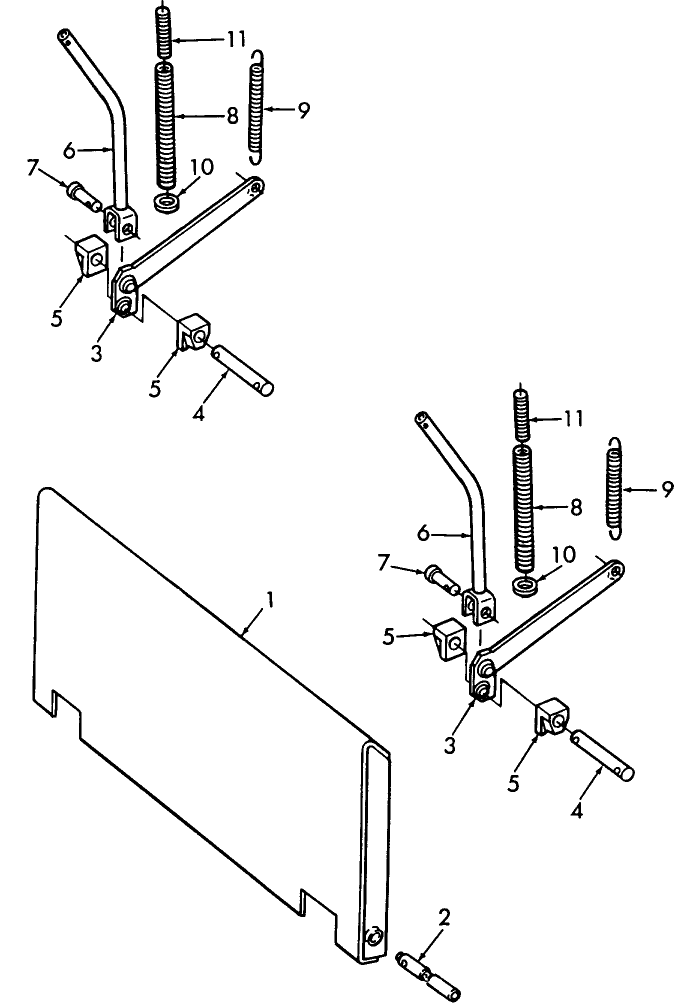

02B01 MOUNTING PLATE ASSEMBLY

Key	Product Name	Price	Qty
1	SUPPORT	$1,409.97	Out of stock.
2	PIN	$98.92
	BOLT (PKG of 5)	$7.00
	NIPPLE LUBE (PKG of 10)	$12.50
	NIPPLE LUBE (PKG of 10)	$13.00
3	HANDLE	$313.60
4	PIN CLEVIS	$89.25
	WASHER (PKG of 10)	$13.50
	PIN SPLIT (COTTER) (PKG of 20)	$10.40
5	BUSHING (PKG of 2)	$52.30
6	STUD	$72.00	Out of stock.
6	YOKE	$128.80
	PIN GROOVED (PKG of 5)	$25.50
7	PIN CLEVIS (PKG of 2)	$25.80
	PIN SPLIT (COTTER) (PKG of 20)	$2.20
8	SPRING	$95.45
	SPRING (PKG of 2)	$204.50
9	SPRING (PKG of 5)	$193.75
11	SPRING (PKG of 2)	$224.00
	NUT LOCK (PKG of 60)	$13.20

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Mount Plate Weld Assy.

Product Description

Mount Plate Weld Assy.

Additional Information

Part Number	L784-18717
Section	Section
