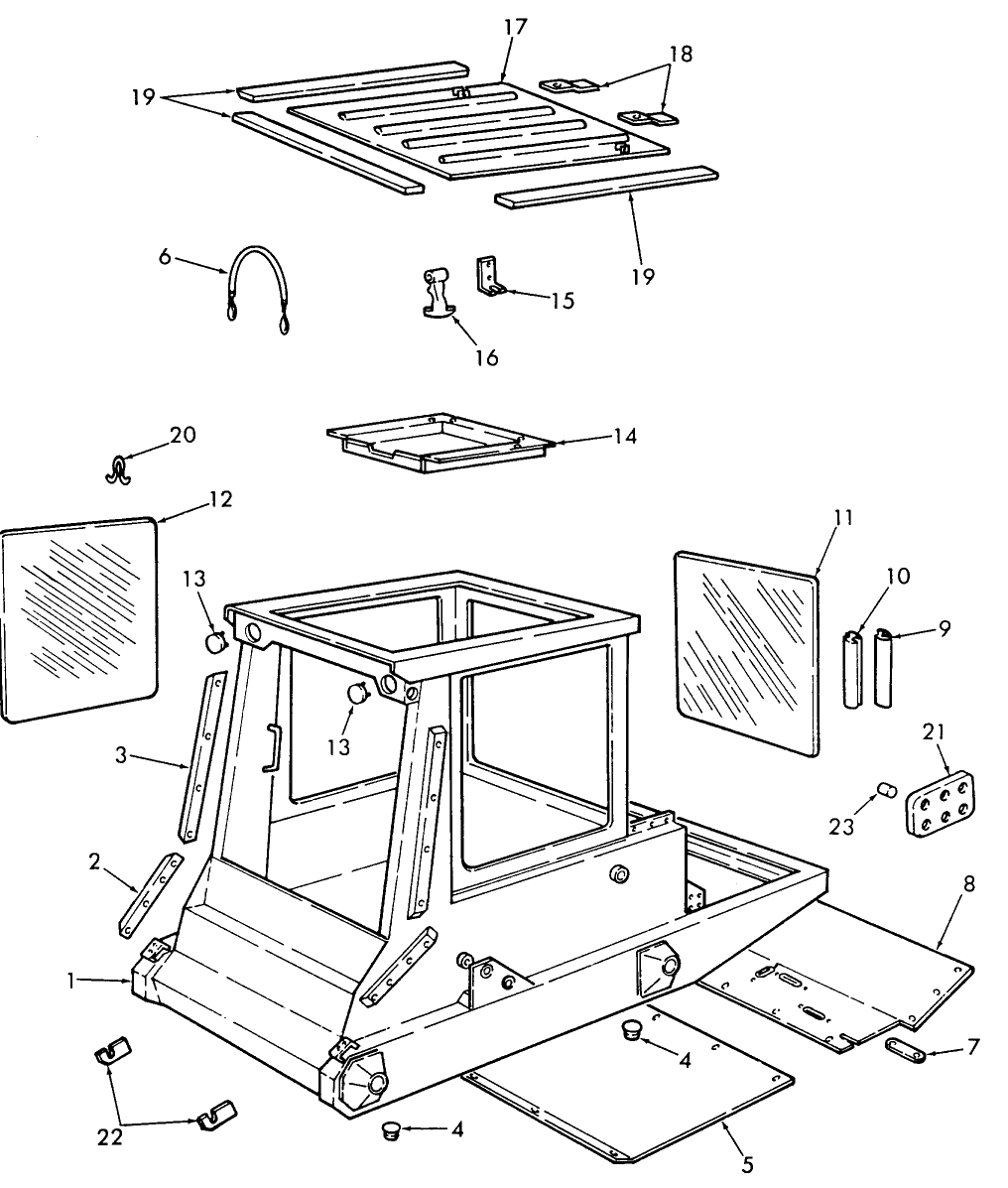

01A01 FRAME & RELATED PARTS

Key	Product Name	Price	Qty
1	PIN, ROLL	$0.00	Out of stock.
2	WEAR STRIP	$89.25
	SCREW SELF-TAP (PKG of 20)	$21.00
3	WEAR STRIP	$151.00
4	PLUG	$66.15
5	GUARD	$263.09	Out of stock.
6	WIRE, RETAINING	$0.00	Out of stock.
	BOLT (PKG of 10)	$6.60
	WASHER (PKG of 10)	$6.90
7	STRAP	$0.00	Out of stock.
	BOLT SERRATED (PKG of 10)	$23.00
8	SHIELD	$0.00	Out of stock.
9	STRIP FILLING	$26.82	Out of stock.
10	MOLDING	$89.50	Out of stock.
11	NOT SERVICED	$0.00	Out of stock.
12	SCREEN	$64.16	Out of stock.
13	PLUG	$0.00	Out of stock.
14	TRAY	$57.00
15	CLIP	$18.50
	SCREW	$0.00	Out of stock.
	WASHER LOCK (PKG of 10)	$4.80
	NUT (PKG of 10)	$4.60
16	LATCH (PKG of 5)	$132.50
	PIN SPLIT (COTTER) (PKG of 20)	$9.40
17	STOP	$503.99	Out of stock.
18	STRAP	$31.00
	BOLT CARRIAGE (PKG of 10)	$4.60
	NUT SERRATED (PKG of 25)	$4.50
19	STRIP SEALING	$196.30
20	WIRE, RETAINING	$0.00	Out of stock.
	WASHER (PKG of 10)	$0.55
	NUT LOCK (PKG of 10)	$1.30
21	WEIGHT	$0.00	Out of stock.
	BOLT (PKG of 5)	$6.50
	BOLT	$17.10
	WASHER LOCK (PKG of 10)	$2.50
	NUT (PKG of 5)	$3.30
22	PAD	$0.00	Out of stock.
23	SPACER	$45.45
	DECAL	$209.36	Out of stock.

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Frame Assy.

Product Description

Frame Assy.

Additional Information

Part Number	L784-18708
