• 067 MAIN FRAME, DIPPER STICK, BOOM AND BUCKET GROUP

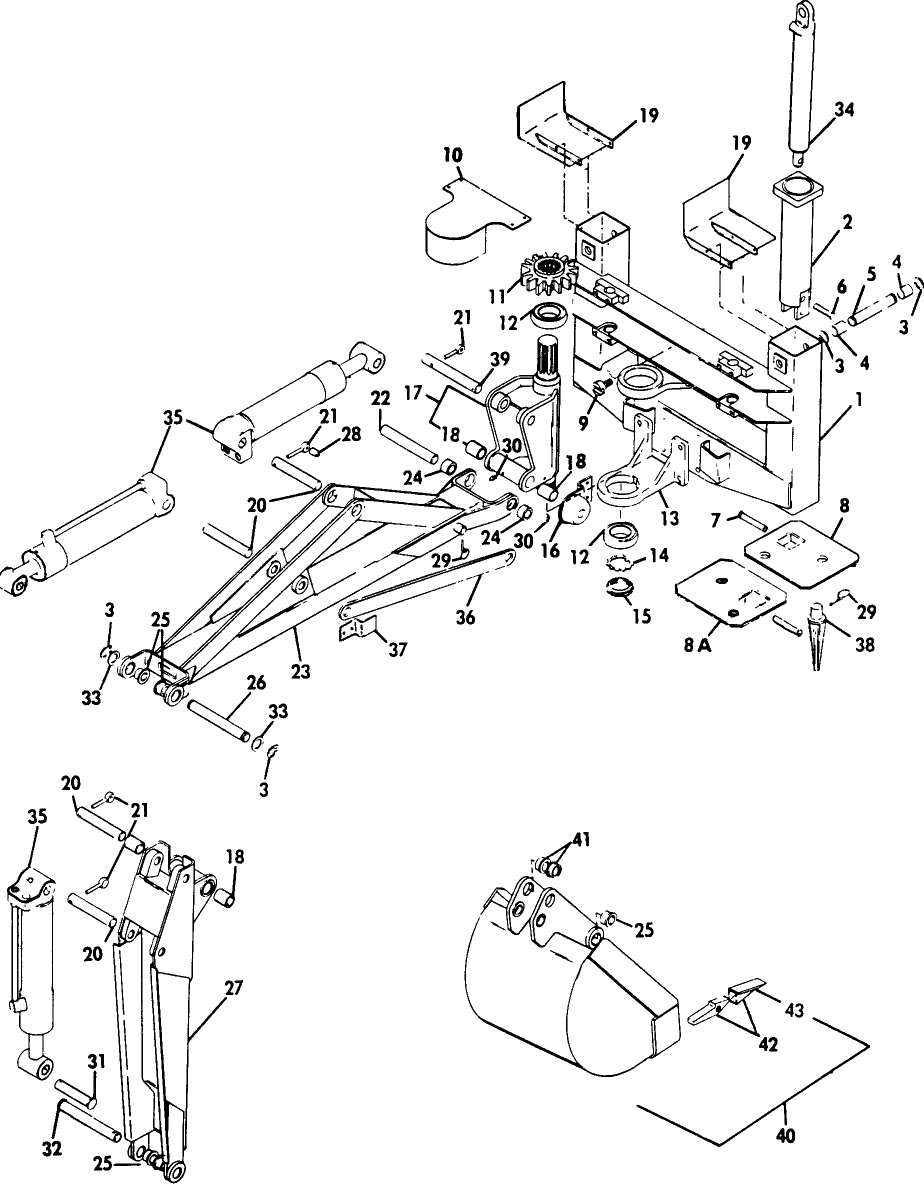

Double click on above image to view full picture

More Views

•

067 MAIN FRAME, DIPPER STICK, BOOM AND BUCKET GROUP

Key	Product Name	Price	Qty
1	FRAME	$0.00	Out of stock.
	BOLT (PKG of 5)	$5.23
	NUT LOCK (PKG of 60)	$14.52
2	STABILIZER	$0.00	Out of stock.
3	RING SNAP (PKG of 5)	$10.45
4	SPACER	$0.00	Out of stock.
5	PIN	$67.41	Out of stock.
6	PIN CLEVIS	$45.10
	PIN SPLIT (COTTER) (PKG of 20)	$2.42
7	PIN CLEVIS	$19.42
8	PAD SET	$0.00	Out of stock.
8A	PAD SET	$0.00	Out of stock.
9	GUIDE	$0.00	Out of stock.
	WASHER (PKG of 10)	$8.58
	NUT LOCK (PKG of 10)	$87.00
10	COVER	$0.00	Out of stock.
11	GEAR	$0.00	Out of stock.
	SET SCREW (PKG of 10)	$30.25
12	BEARING ASSY	$264.88
13	PLATE/DRIVE ASY	$63.47
	BOLT (PKG of 5)	$47.85
	BOLT (PKG of 5)	$14.03
	NUT LOCK (PKG of 10)	$9.79
14	WASHER, LOCK	$1.16	Out of stock.
15	NUT LOCK	$590.43
16	BUMPER	$56.43
	BOLT (PKG of 10)	$7.37
	WASHER LOCK (PKG of 25)	$5.23
17	SUPPORT	$0.00	Out of stock.
18	BUSHING	$33.50
19	No Longer Serviced	$0.00	Out of stock.
	SCREW SELF-TAP (PKG of 10)	$34.10
	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
20	PIN	$0.00	Out of stock.
21	PIN	$35.89
	BOLT (PKG of 10)	$5.39
	BOLT (PKG of 10)	$5.94
	BOLT (PKG of 10)	$6.05
	WASHER (PKG of 50)	$11.00
	WASHER LOCK (PKG of 10)	$2.09
22	PIN	$0.00	Out of stock.
23	BOOM	$0.00	Out of stock.
24	ROD/FLAIL	$28.44
25	BUSHING, DRIVE	$0.00	Out of stock.
26	PIN	$4.30	Out of stock.
27	DIPSTICK	$0.00	Out of stock.
28	SPACER (PKG of 4)	$125.84
29	PIN LINCH	$3.47
30	NIPPLE LUBE (PKG of 10)	$10.89
31	PIN	$0.00	Out of stock.
	PIN SPLIT (COTTER) (PKG of 10)	$6.60
32	PIN	$0.00	Out of stock.
	PIN SPLIT (COTTER) (PKG of 10)	$37.95
33	WASHER (PKG of 10)	$90.75
34	HYDRAULIC CYLINDER	$0.00	Out of stock.
35	ACTUATOR	$0.00	Out of stock.
36	LINK BLOCK	$0.00	Out of stock.
37	CLIP	$0.00	Out of stock.
38	SPARE PART	$7.31
39	PIN	$0.00	Out of stock.
40	067 MAIN FRAME, DIPPER STICK, BOOM AND BUCKET GROUP	$0.00	Out of stock.
40	O-RING	$0.00	Out of stock.
40	INSERT	$0.00	Out of stock.
40	FLANGE	$0.00	Out of stock.
41	BUSHING, DRIVE	$0.00	Out of stock.
42	TOOTH, BUCKET	$12.00
43	LUG (PKG of 2)	$7.64	Out of stock.
43	POINT, BUCKET TOOTH	$0.00	Out of stock.

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Frame Weld Assy., Main

Product Description

Frame Weld Assy., Main, D-100

Additional Information

Part Number	D-100-33228
Section	Section
