• 001 MAIN FRAME, FUEL TANK & ENGINE SHROUDING

Double click on above image to view full picture

More Views

•

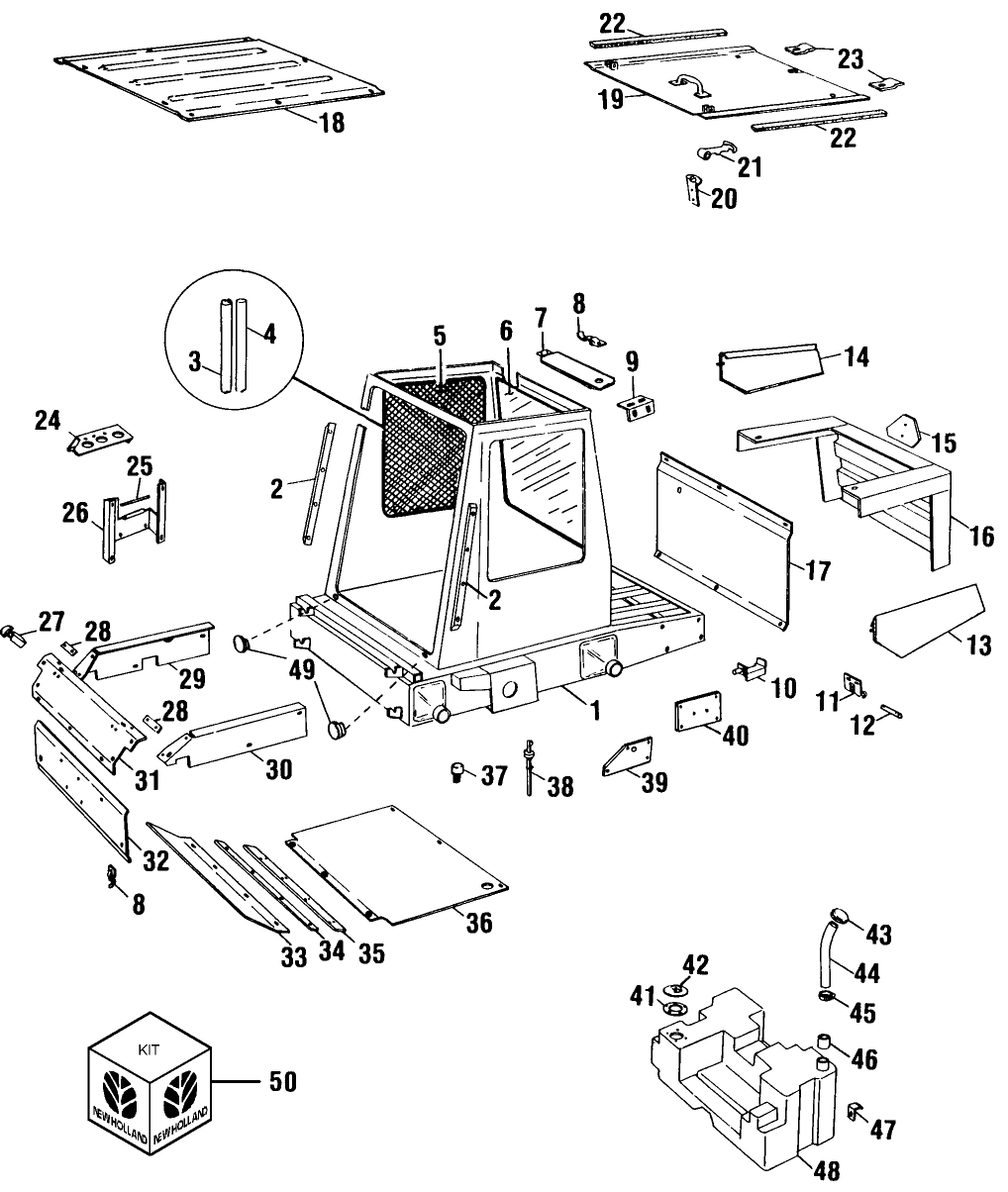

001 MAIN FRAME, FUEL TANK & ENGINE SHROUDING

Key	Product Name	Price	Qty
1	FRAME	$0.00	Out of stock.
1	NOT SERVICED	$0.00	Out of stock.
2	WEAR STRIP	$151.00
	SCREW SELF-TAP (PKG of 25)	$32.50
3	MOLDING	$89.50	Out of stock.
4	STRIP FILLING	$26.82	Out of stock.
5	SCREEN	$64.16	Out of stock.
6	PROCURE LOCALLY	$0.00	Out of stock.
7	LID	$0.00	Out of stock.
	BOLT (PKG of 10)	$1.50
	WASHER (PKG of 25)	$1.50
	WASHER LOCK (PKG of 10)	$1.00
	NUT (PKG of 20)	$2.20
8	CLIP (PKG of 3)	$13.50
	SCREW (PKG of 20)	$10.40
	WASHER (PKG of 10)	$1.10
	WASHER LOCK (PKG of 10)	$2.00
	NUT (PKG of 25)	$20.75
9	BRACKET	$0.00	Out of stock.
	SCREW (PKG of 10)	$30.00
	WASHER (PKG of 10)	$1.20
	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
	NUT (PKG of 20)	$5.40
10	STRAP	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$4.60
11	HINGE	$41.50
	BOLT (PKG of 10)	$5.50
	WASHER (PKG of 50)	$10.00
	WASHER LOCK (PKG of 10)	$1.90
	NUT (PKG of 25)	$3.00
12	PIN	$0.00	Out of stock.
	PIN SPLIT (COTTER) (PKG of 50)	$5.00
	BOLT (PKG of 5)	$10.50
	NUT LOCK (PKG of 10)	$4.10
13	SHIELD	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 5)	$56.00
14	SHIELD	$0.00	Out of stock.
	BOLT (PKG of 10)	$1.50
15	EMBLEM	$31.60
	SPACER	$0.00	Out of stock.
	SCREW (PKG of 10)	$7.80
	SCREW (PKG of 10)	$11.00
15A	DECAL	$28.00
16	COVER	$0.00	Out of stock.
	WASHER (PKG of 10)	$59.00
17	PANEL	$0.00	Out of stock.
17	SHEET	$0.00	Out of stock.
	BOLT (PKG of 10)	$3.80
18	ROOF	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$8.00
19	PLATE	$0.00	Out of stock.
20	CLIP	$18.50
	SCREW	$0.00	Out of stock.
	WASHER LOCK (PKG of 10)	$4.80
	NUT (PKG of 10)	$4.60
21	LATCH (PKG of 5)	$132.50
	PIN SPLIT (COTTER) (PKG of 20)	$5.40
22	STRIP SEALING	$196.30
23	STRAP	$0.00	Out of stock.
24	PANEL, INSTRUMENTS	$0.00	Out of stock.
24	PANEL, INSTRUMENTS	$0.00	Out of stock.
25	PIN	$0.00	Out of stock.
25	ROD	$0.00	Out of stock.
26	SUPPORT	$0.00	Out of stock.
26	PANEL	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$36.00
	PLUG	$0.00	Out of stock.
27	LATCH	$16.00
	SCREW HEX SOC (PKG of 5)	$24.50
28	SUPPORT	$39.21	Out of stock.
29	COVER	$0.00	Out of stock.
30	COVER	$0.00	Out of stock.
31	SHIELD	$0.00	Out of stock.
31	SHIELD	$0.00	Out of stock.
	BOLT FLANGE (PKG of 10)	$26.00
32	SHIELD	$0.00	Out of stock.
33	COVER	$0.00	Out of stock.
	BOLT (PKG of 10)	$4.10
34	GASKET	$0.00	Out of stock.
35	No Longer Serviced	$0.00	Out of stock.
36	PLATE	$146.43
37	BREATHER	$0.00	Out of stock.
38	DIPSTICK	$35.84	Out of stock.
38	DIPSTICK	$52.25
39	COVER	$0.00	Out of stock.
39	COVER	$0.00	Out of stock.
40	PLATE	$0.00	Out of stock.
	BOLT (PKG of 10)	$8.10
	WASHER LOCK (PKG of 25)	$4.75
	WASHER (PKG of 10)	$4.20
41	SENDER UNIT	$300.00
	SCREW (PKG of 10)	$28.60
	SCREW (PKG of 10)	$0.70
	WASHER (PKG of 10)	$16.00
42	GASKET	$11.00
43	CAP	$51.95
44	PIPE	$0.00	Out of stock.
45	COLLAR (PKG of 5)	$13.25
46	HOSE FUEL	$28.00
47	ANGLE	$0.00	Out of stock.
48	FUEL TANK	$0.00	Out of stock.
	PLUG (PKG of 5)	$4.40	Out of stock.
	BUSHING	$0.40
	COLLAR	$18.69
49	GROMMET	$17.91	Out of stock.
50	DECAL	$0.00	Out of stock.

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Frame, Main, Gas

Product Description

Frame, Main, Gas

Additional Information

Part Number	L445-12519
