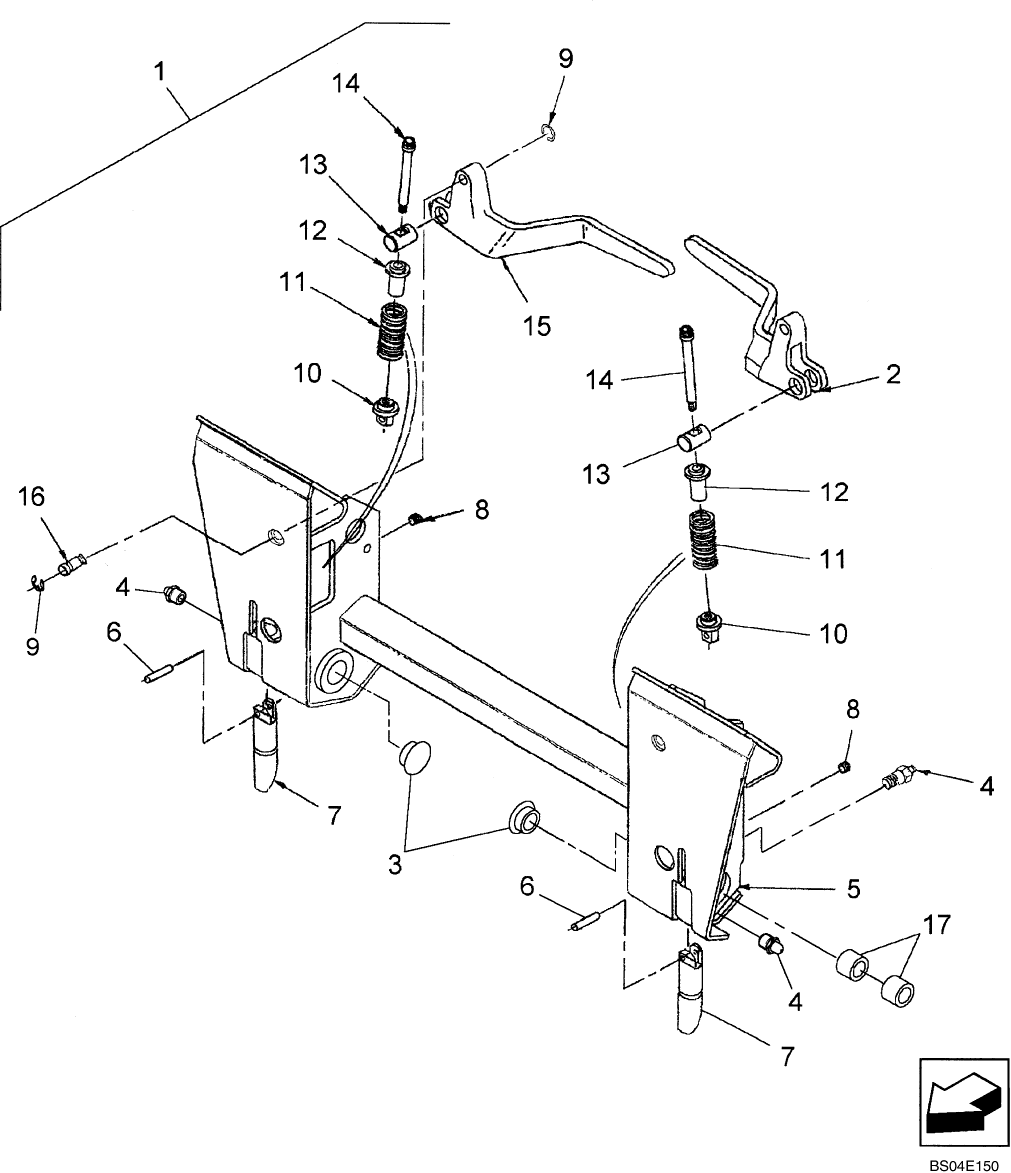

09-03 MOUNTING PLATE

Key	Product Name	Price	Qty
1	PLATE, MOUNTING	$1,420.00	Out of stock.
2	HANDLE	$153.20
3	DUST CAP	$11.00
4	NIPPLE LUBE (PKG of 10)	$12.00
5	PLATE MOUNTING	$1,650.25	Out of stock.
6	PIN LOCK	$3.45
7	PIN	$15.65	Out of stock.
8	PLUG (PKG of 10)	$21.00
9	RING SNAP (PKG of 5)	$20.75
10	PIN	$22.00	Out of stock.
10	PIN	$20.17
11	SPRING	$14.85
12	GUIDE	$13.95
13	PIN	$39.00
14	SCREW 12 PT (PKG of 2)	$29.20
14	SCREW 12 PT	$7.60
15	HANDLE	$147.75
16	PIN	$18.50
17	BUSHING (PKG of 10)	$70.00	Out of stock.

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Incl. Ref. 2 - 17

Product Description

Incl. Ref. 2 - 17

Additional Information

Part Number	L185-524101
Section	Chassis/Attachments
