• 03A04 FRONT AXLE W/2WD

Double click on above image to view full picture

More Views

•

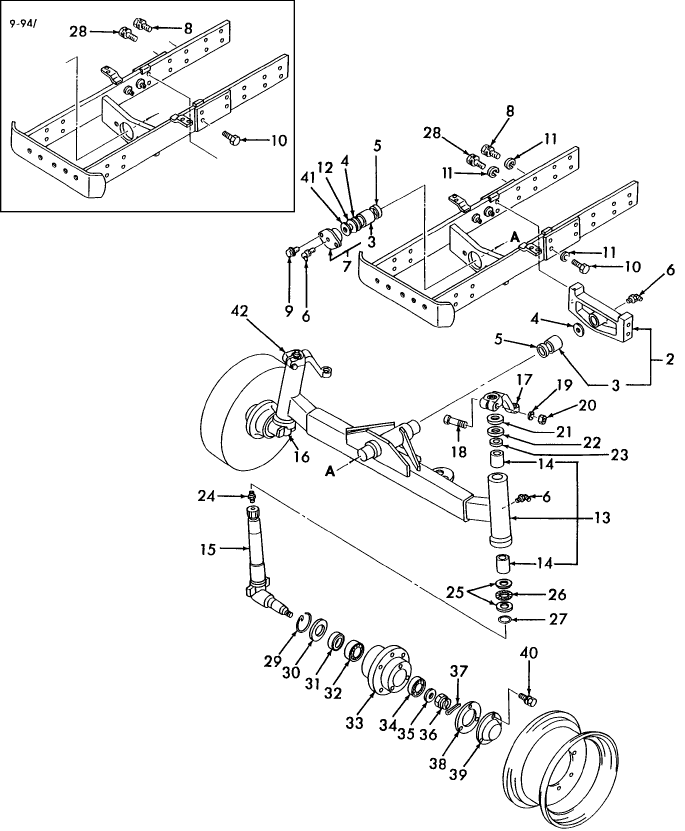

03A04 FRONT AXLE W/2WD

Key	Product Name	Price	Qty
1	SUPPORT	$530.00
1	SUPPORT	$373.33
2	HOUSING	$139.79
3	BUSHING DRIVE	$33.60
4	WASHER THRUST	$10.15
5	SEAL	$20.75
6	NIPPLE LUBE (PKG of 5)	$16.25
7	HOUSING	$69.30
8	BOLT (PKG of 5)	$29.75
9	SCREW CAPTIVE WASHE (PKG of 5)	$25.25
10	BOLT	$9.05
11	WASHER, LOCK	$0.00	Out of stock.
12	SHIM (PKG of 10)	$7.60
13	SPINDLE	$1,285.00
14	BUSHING DRIVE	$33.00
15	SPINDLE	$326.00	Out of stock.
16	PIN	$447.72	Out of stock.
17	ARM	$510.00
17	ARM	$98.81	Out of stock.
18	BOLT (PKG of 5)	$18.50
19	WASHER LOCK (PKG of 50)	$21.50
20	NUT (PKG of 30)	$36.00
21	SPACER	$6.70
22	SHIM	$6.20
23	SEAL	$17.50
24	NIPPLE LUBE	$5.50
25	WASHER THRUST (PKG of 5)	$36.75
26	BEARING NEEDLE	$24.75
27	O-RING (PKG of 5)	$36.25
29	RING SNAP (PKG of 10)	$73.00
30	SPACER (PKG of 5)	$61.25
31	KIT SEALS	$69.25
32	BEARING ASSY	$26.00	Out of stock.
33	HUB	$171.48	Out of stock.
34	TAPERED BEARING	$37.51
35	SPACER	$14.00
36	NUT SLOTTED (PKG of 5)	$30.50
37	PIN SPLIT (COTTER) (PKG of 10)	$6.70
38	GASKET	$8.70
39	COVER	$17.50	Out of stock.
40	BOLT (PKG of 10)	$9.90	Out of stock.
41	SHIM (PKG of 10)	$20.00

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Support, Axle, Front, 1320, Start Year: 01/01/1987

Product Description

Support, Axle, Front, 1320, Start Year: 01/01/1987

Additional Information

Part Number	1715-42023
Section	Front Axle/Steering
