• 01.05 TIMING GEAR CASE

Double click on above image to view full picture

More Views

•

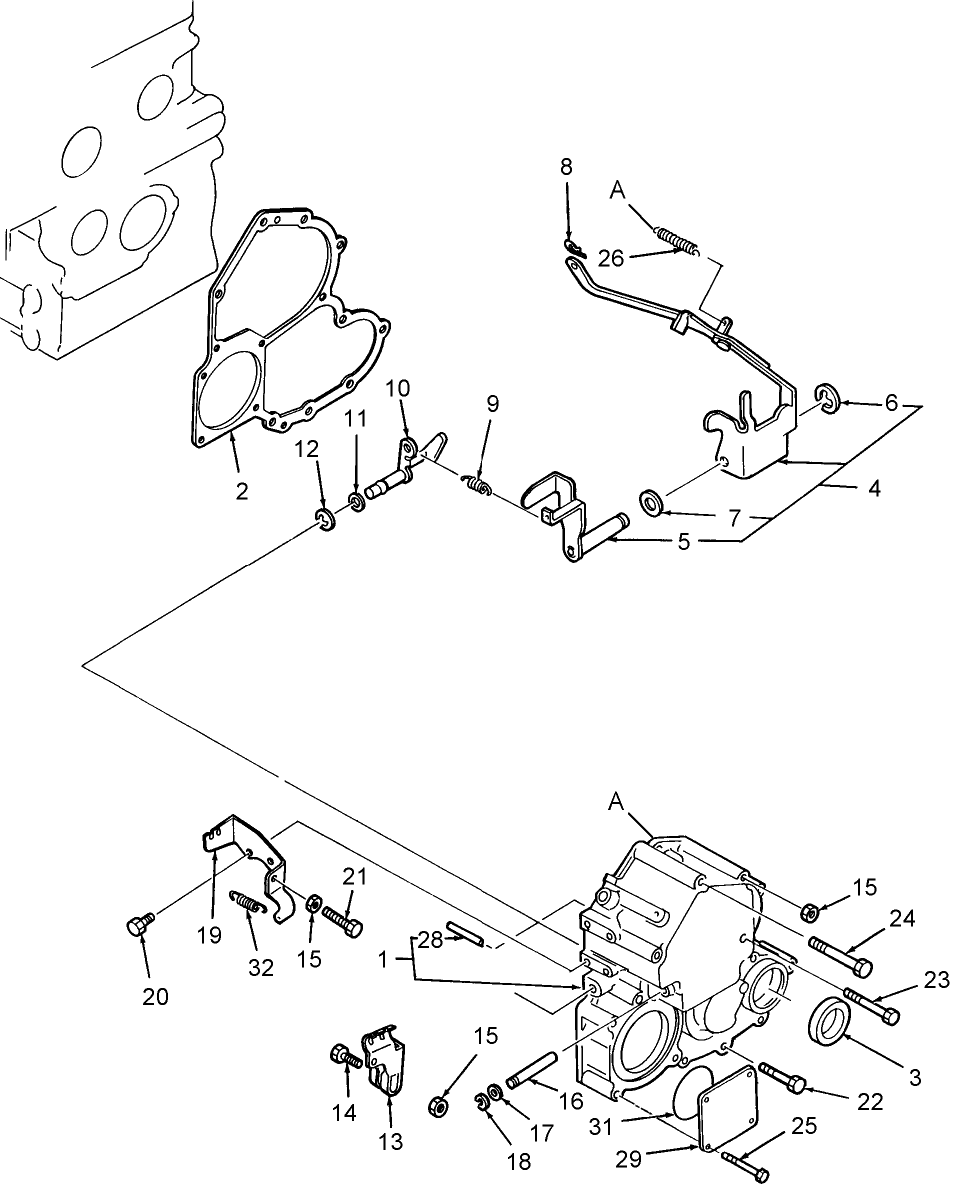

01.05 TIMING GEAR CASE

Key	Product Name	Price	Qty
1	HOUSING	$154.50
2	GASKET	$36.00
3	SEAL OIL	$38.55
4	LEVER	$86.85
5	LEVER	$5.65
6	RING SNAP (PKG of 10)	$12.50
7	WASHER (PKG of 10)	$9.35
8	SPRING (PKG of 10)	$19.00
9	SPRING	$15.25
10	ARM	$28.71
11	O-RING (PKG of 10)	$34.00
13	LEVER	$12.35
14	SCREW (PKG of 10)	$7.40	Out of stock.
15	NUT FLANGE (PKG of 20)	$6.20
16	SHAFT	$11.95
17	O-RING (PKG of 10)	$13.00
18	RING SNAP (PKG of 10)	$7.10
19	BRACKET	$24.75
20	BOLT (PKG of 10)	$9.90	Out of stock.
21	BOLT (PKG of 10)	$41.00
22	SCREW CAPTIVE WASHE (PKG of 5)	$20.75
23	BOLT (PKG of 5)	$16.50
24	BOLT (PKG of 10)	$28.50
25	BOLT (PKG of 5)	$11.50
26	SPRING	$11.80
28	PIN (PKG of 10)	$16.00
29	COVER	$6.51
31	O-RING	$8.20
32	SPRING	$7.85

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Timing Gear Includes: Ref. 28

Product Description

Timing Gear Includes: Ref. 28

Additional Information

Part Number	TZ22DA-476322
Section	Engine
