• 05.09 702C - HYDRAULIC CYLINDER, LIFT & ANGLE

Double click on above image to view full picture

More Views

•

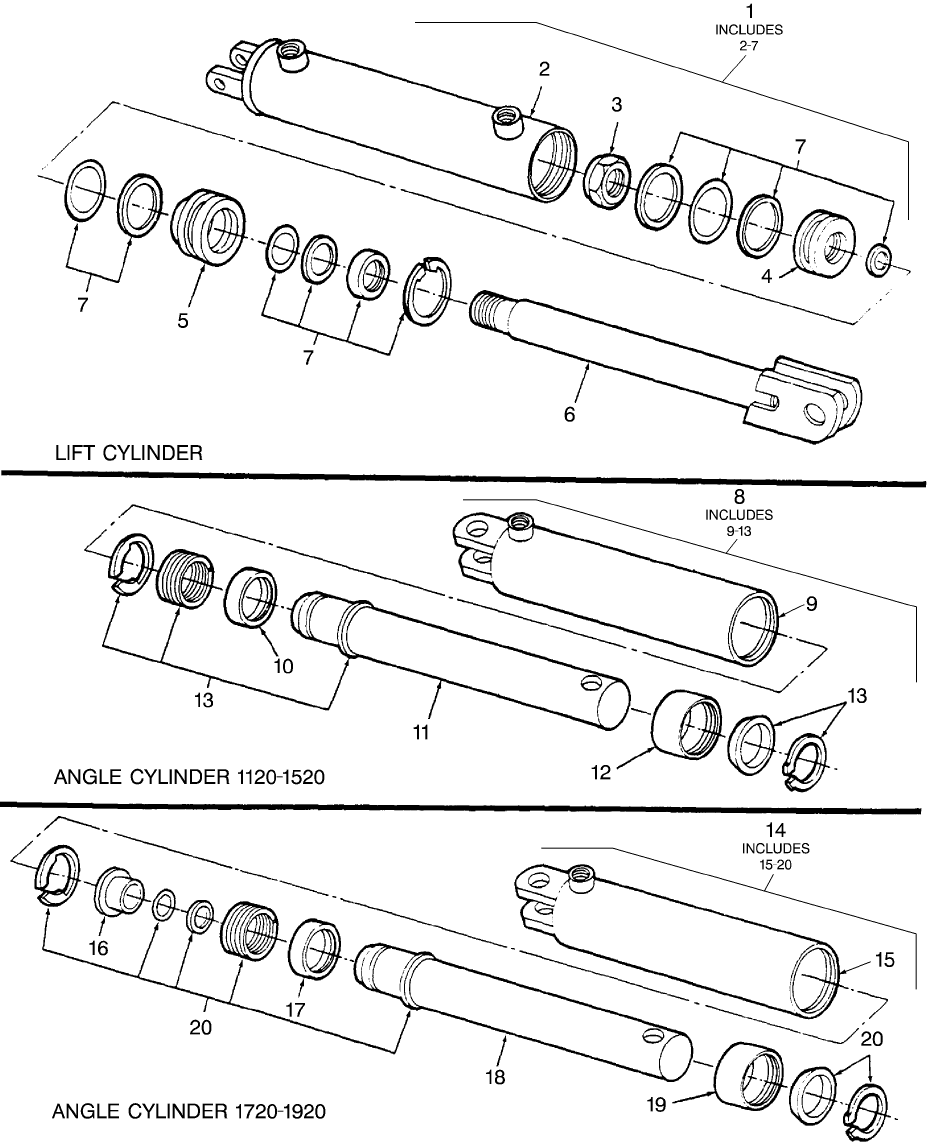

05.09 702C - HYDRAULIC CYLINDER, LIFT & ANGLE

Key	Product Name	Price	Qty
1	CYLINDER	$1,898.00
2	TUBE, RIGID	$138.90
3	NUT	$11.25
4	PISTON	$24.76
5	CYLINDER HEAD	$51.50
6	ROD	$57.15
7	KIT SEALS	$322.35
8	HYDRAULIC CYLINDER	$959.65
9	TUBE	$1,485.00
10	PISTON	$147.40
11	ROD	$149.82	Out of stock.
12	CYLINDER HEAD	$87.96
13	KIT SEALS	$113.00
14	CYLINDER HEAD	$1,015.15
15	TUBE, RIGID	$382.96
16	SPACER	$101.00
17	HYDRAULIC CYLINDER	$157.14
18	ROD	$154.55
19	GLAND	$113.00
20	KIT SEALS	$135.00	Out of stock.

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Cylinder Assy., Lift - JA, Includes: Ref. 2 thru 7

Product Description

Cylinder Assy., Lift - JA, Includes: Ref. 2 thru 7, 702C

Additional Information

Part Number	702C-54732
