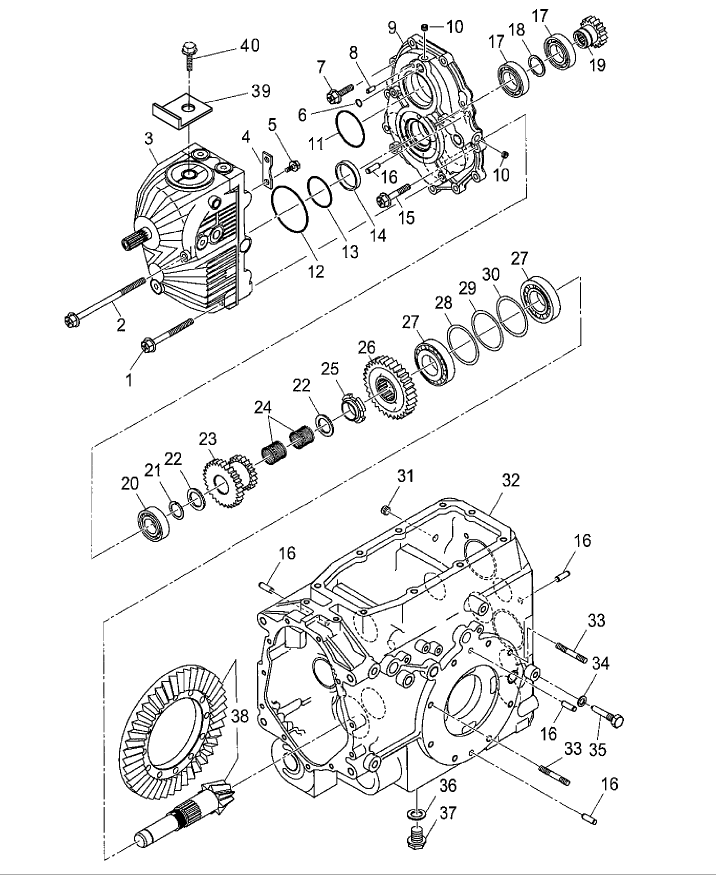

03.05 HST DRIVE

Key	Product Name	Price	Qty
1	BOLT (PKG of 5)	$13.10
2	BOLT	$6.65
3	TRANSMISSION, HYDROSTATIC	$0.00	Out of stock.
3	TRANSMISSION, HYDROSTATIC	$0.00	Out of stock.
4	WASHER	$3.28
5	SCREW CAPTIVE WASHE (PKG of 5)	$16.50	Out of stock.
6	O-RING	$5.60
7	BOLT (PKG of 5)	$7.25
8	DOWEL (PKG of 5)	$20.50
9	COVER	$580.00
10	PLUG	$41.00
11	O-RING	$8.40
12	O-RING	$7.45
13	O-RING	$8.80
14	SEALING RING COLLAR	$32.20
15	BOLT (PKG of 5)	$7.25
16	DOWEL	$11.25
17	BEARING BALL	$24.60
18	RING SNAP (PKG of 10)	$20.50
19	GEAR	$88.50
20	BEARING BALL	$18.43	Out of stock.
21	CIRCLIP (PKG of 10)	$19.50
22	WASHER THRUST	$19.90
23	GEAR	$165.00
24	NEEDLE	$46.20
25	NUT	$30.30
26	GEAR	$73.81
27	BEARING ASSY	$75.50	Out of stock.
28	SHIM	$6.40
29	SHIM (PKG of 10)	$47.50
30	SHIM	$6.35
31	PLUG	$3.23	Out of stock.
32	CASING	$0.00	Out of stock.
32	CASING	$1,405.93	Out of stock.
33	SCREW (PKG of 5)	$17.90
34	WASHER SEALING (PKG of 5)	$30.25
35	BOLT	$9.95
36	WASHER SEALING	$8.20
37	PLUG	$15.80
38	DRIVE	$861.00
39	PLATE	$27.00
40	BOLT	$10.10

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Product Description

Additional Information

Part Number	TZ24DA-419941
Section	Transmission/PTO
