• 13A02 SEAT ASSEMBLY - 3415

Double click on above image to view full picture

More Views

•

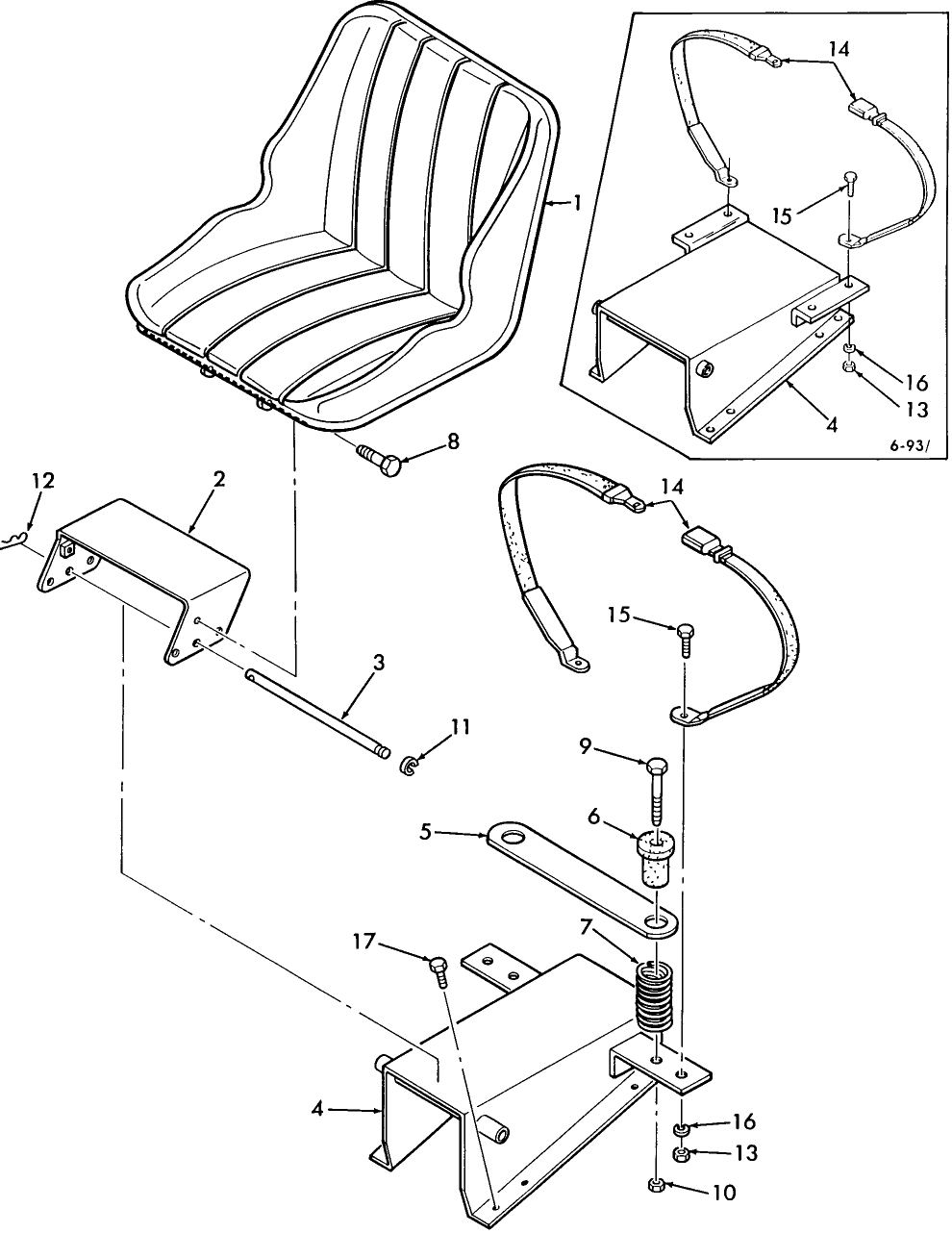

13A02 SEAT ASSEMBLY - 3415

Key	Product Name	Price	Qty
1	SEAT DRIVER	$726.00
2	BRACKET	$72.25	Out of stock.
3	PIN	$11.42	Out of stock.
4	SUPPORT	$0.00	Out of stock.
4	SUPPORT	$197.83
5	PLATE	$17.04	Out of stock.
6	BUSHING	$29.35
7	SPRING	$81.00
8	BOLT (PKG of 5)	$25.25
9	BOLT	$1.66	Out of stock.
10	NUT (PKG of 5)	$20.00
11	RING SNAP (PKG of 10)	$12.50
12	PIN SPLIT (COTTER) (PKG of 10)	$28.50
13	NUT (PKG of 20)	$11.60
14	SEAT BELT	$56.15	Out of stock.
15	BOLT (PKG of 10)	$7.50
16	WASHER LOCK (PKG of 25)	$6.50
17	SCREW CAPTIVE WASHE (PKG of 5)	$16.50	Out of stock.

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Seat, Start Year: 01/01/1993

Product Description

Seat, Start Year: 01/01/1993

Additional Information

Part Number	3415-5687
Section	Seats
