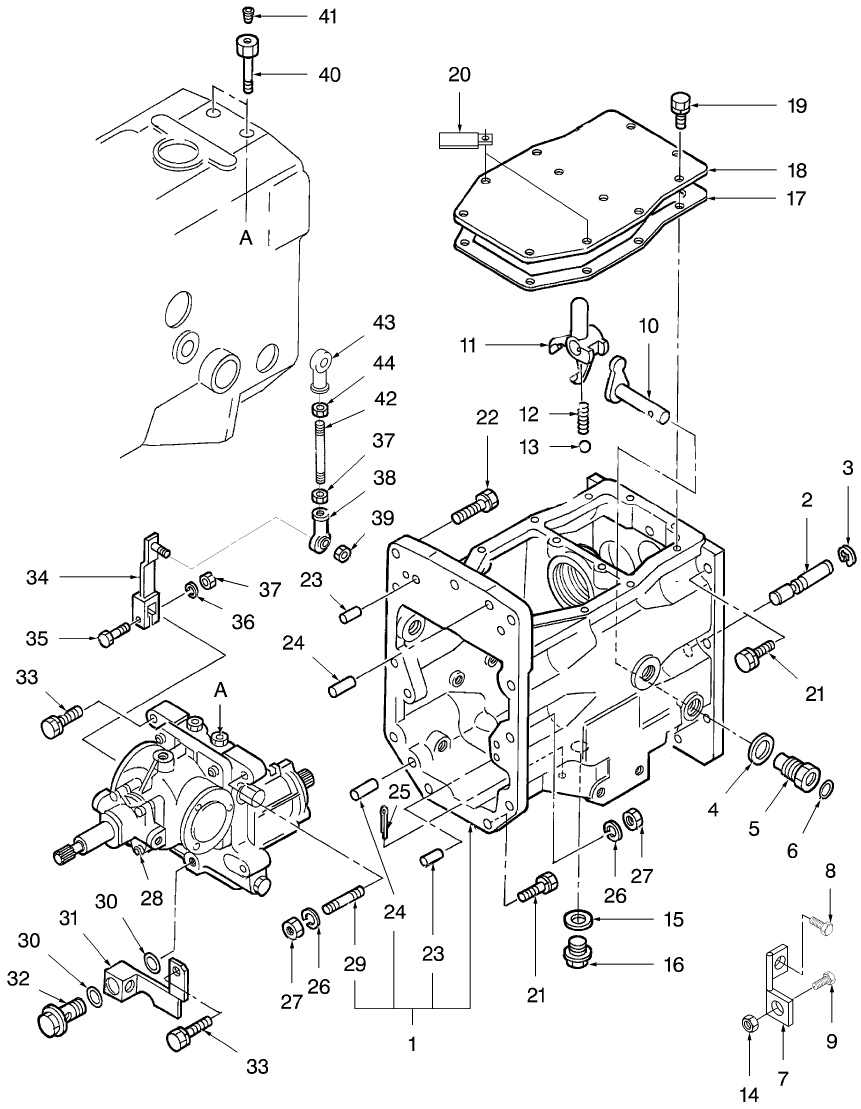

07C02 FRONT TRANSMISSION CASE & SHIFTER, W/HST

Key	Product Name	Price	Qty
1	SUMP	$534.00	Out of stock.
2	ROD	$43.25
3	RING SNAP (PKG of 5)	$4.65
4	WASHER SEALING	$9.85
5	GUIDE	$73.25
6	O-RING	$6.20
7	BRACKET	$153.75
8	BOLT FLANGE (PKG of 10)	$38.50
9	SCREW (PKG of 10)	$7.40	Out of stock.
10	ARM	$36.25
11	FORK SHIFTER	$141.00
12	SPRING	$7.45
13	BALL (PKG of 10)	$39.30
14	NUT FLANGE (PKG of 20)	$6.20
15	WASHER SEALING	$8.00
16	PLUG	$15.45
17	GASKET	$60.25
18	COVER	$57.45
19	SCREW CAPTIVE WASHE (PKG of 5)	$16.50	Out of stock.
20	CLAMP	$2.80
21	SCREW CAPTIVE WASHE (PKG of 5)	$29.50
22	BOLT (PKG of 5)	$30.00
23	PIN (PKG of 2)	$19.60
24	PIN BALL (PKG of 2)	$22.50
25	PIN (PKG of 10)	$9.70
26	WASHER LOCK (PKG of 25)	$6.50
27	NUT (PKG of 10)	$23.00
28	TRANSMISSION HYDROS	$7,554.40	Out of stock.
29	STUD (PKG of 5)	$55.00
30	O-RING (PKG of 5)	$23.50
31	ADAPTER	$89.05
32	BOLT BANJO	$43.25
33	BOLT (PKG of 10)	$59.50
34	LEVER	$63.25
34	LEVER	$54.00
35	BOLT (PKG of 5)	$8.25
35	BOLT (PKG of 10)	$8.80
36	WASHER, LOCK (PKG of 20)	$3.00	Out of stock.
36	WASHER (PKG of 25)	$35.50	Out of stock.
37	NUT	$0.00	Out of stock.
37	NUT (PKG of 5)	$20.00
38	ROD	$76.50
39	NUT (PKG of 5)	$18.25
40	ADAPTER	$33.50
41	PLUG	$15.25
42	ROD	$5.95
43	END ASSY TRACK ROD	$112.50
44	NUT (PKG of 5)	$19.75

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Case Assy. Includes: Ref. 23, 24, & 29, Start Year: 09/01/1998

Product Description

Case Assy. Includes: Ref. 23, 24, & 29, Start Year: 09/01/1998

Additional Information

Part Number	TC25D-209224
Section	Transmission/PTO
