• 001 BOOM & SIDE FRAME ASSY.

Double click on above image to view full picture

More Views

•

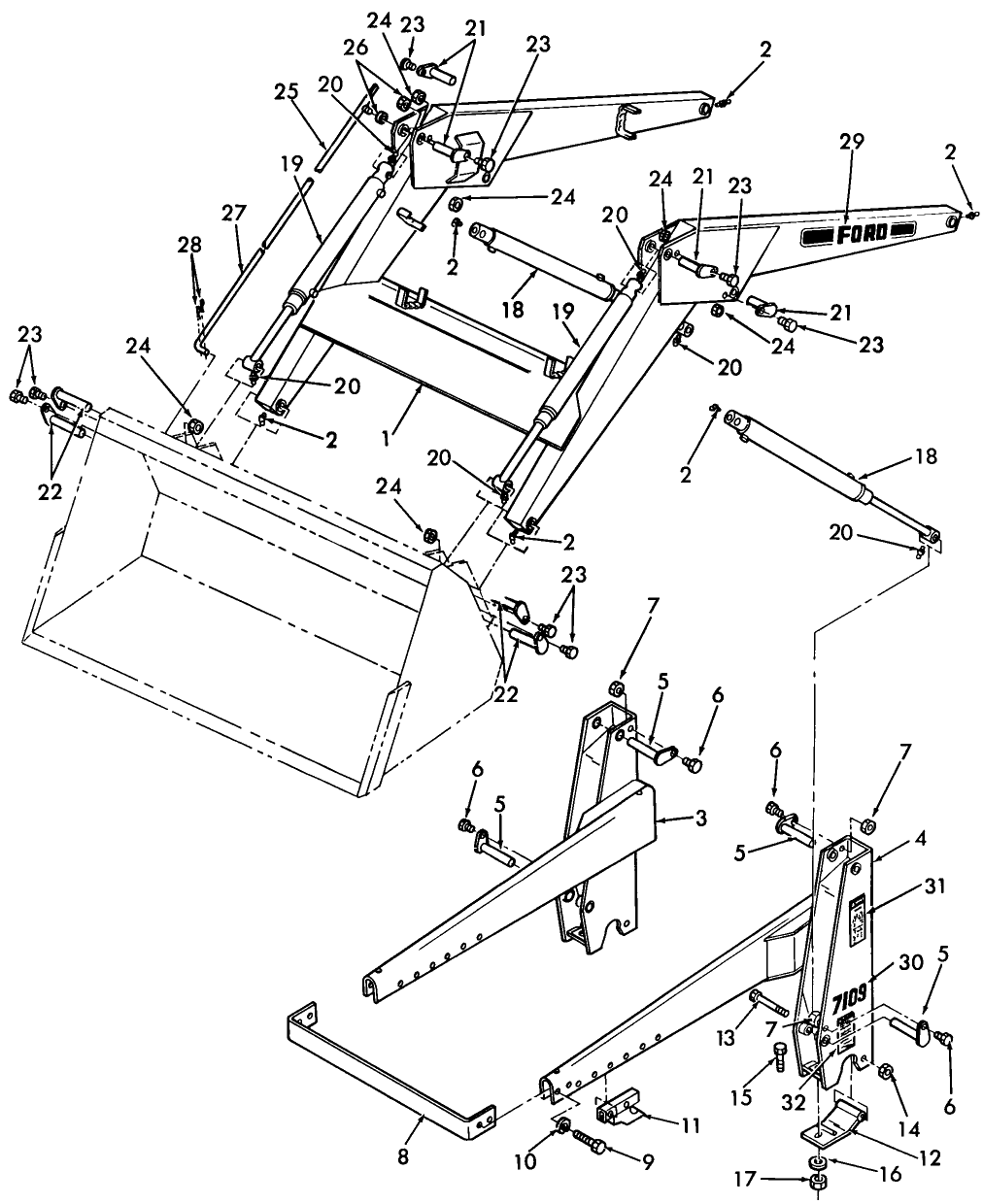

001 BOOM & SIDE FRAME ASSY.

Key	Product Name	Price	Qty
1	BOOM	$2,888.89	Out of stock.
2	PROCURE LOCALLY	$0.00	Out of stock.
3	FRAME	$0.00	Out of stock.
4	FRAME	$2,116.53	Out of stock.
5	PIN	$202.07
6	BOLT (PKG of 5)	$28.60	Out of stock.
8	BUMPER	$0.00	Out of stock.
11	HOOK	$72.66
12	HINGE	$35.50
17	NUT (PKG of 5)	$21.45
18	CYLINDER	$0.00	Out of stock.
19	HYDRAULIC CYLINDER	$1,350.00	Out of stock.
21	PIN	$27.75	Out of stock.
25	TUBE	$29.75
27	ROD	$179.30
29	DECAL	$0.00	Out of stock.
29	DECAL	$57.75
30	DECAL	$9.80
31	DECAL	$22.25
32	DECAL	$5.30

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Boom Assy., Lift

Product Description

Boom Assy., Lift, 7109-SERIES

Additional Information

Part Number	7109-SERIES-4867
Section	Section
