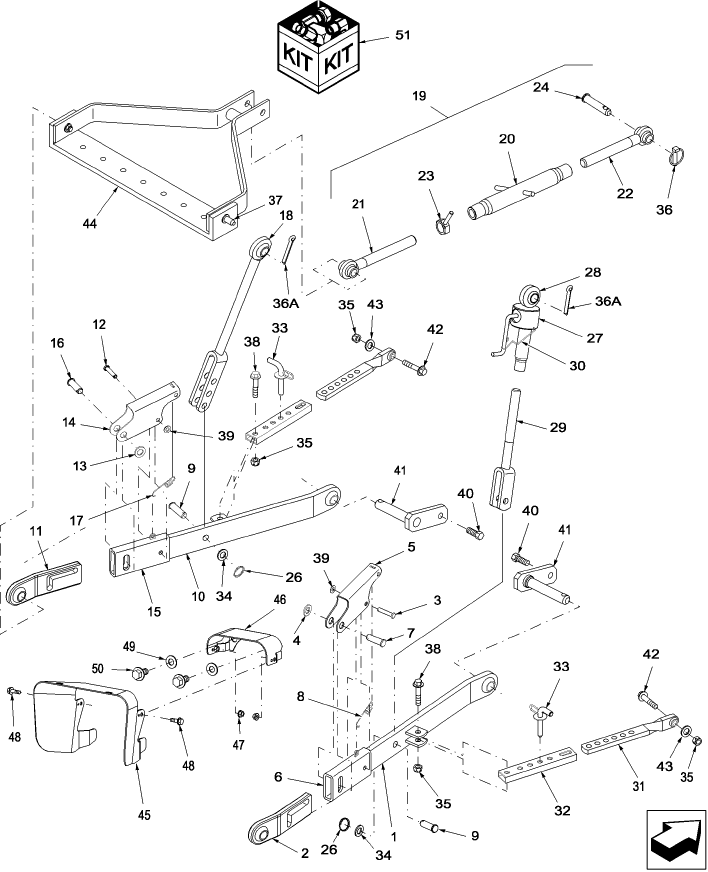

New Holland TC35A Implement Lift 09.02 DELUXE 3PT HITCH, PTO SHIELD & DELUXE 3PT HITCH KIT

09.02 DELUXE 3PT HITCH, PTO SHIELD & DELUXE 3PT HITCH KIT - 710902076

Double click on above image to view full picture

Key	Product Name	Price	Qty
1	LINK LIFT	$590.00
2	END ASSY, LIFT LINK	$54.49	Out of stock.
3	PIN LOCK (PKG of 2)	$8.50
4	WASHER (PKG of 2)	$5.60
5	COVER	$68.10
6	LINK LIFT	$435.00
7	PIN CLEVIS	$15.50
8	SPRING	$38.30
10	LINK LIFT	$839.05
11	LINK, LIFT	$86.63	Out of stock.
18	LINK, LIFT	$152.00	Out of stock.
19	LINK TOP	$225.50
20	HOUSING	$181.60
21	BALL JOINT	$112.00
22	BALL JOINT	$127.35
23	NUT JAM	$20.65
24	PIN	$54.45
26	RING	$31.20
27	LEVELING DEVICE	$649.60
28	GEAR	$260.00	Out of stock.
29	LINK LIFT	$109.75
30	LOCK	$26.45
31	STABILIZER	$156.45
32	STABILIZER	$138.65
33	PIN	$26.05
35	NUT LOCK (PKG of 5)	$4.90
36	PIN LINCH	$3.68
36A	PIN SPLIT (COTTER) (PKG of 10)	$35.50
37	PIN	$16.50
38	BOLT FLANGE	$15.10
39	WASHER (PKG of 30)	$4.80
40	BOLT	$3.80
41	PIN	$74.85
42	BOLT (PKG of 2)	$9.20
43	WASHER (PKG of 10)	$7.00
44	KIT	$114.67	Out of stock.
45	SHIELD	$213.20
46	BRACKET	$131.60
47	NUT FLANGE (PKG of 5)	$12.25
48	BOLT FLANGE (PKG of 5)	$19.50
49	WASHER BELLEVILLE (PKG of 10)	$17.50
50	BOLT FLANGE (PKG of 5)	$32.50
51	ORDER WHOLEGOODS	$0.00	Out of stock.

Add Items to Cart

Lower Assy., RH, Includes: Ref. 2 Thru 8

Lower Assy., RH, Includes: Ref. 2 Thru 8

Part Number	TC35A-421313
Section	Implement Lift
