• 03D01 FRONT DIFFERENTIAL, 4WD, 1100 & 1200

Double click on above image to view full picture

More Views

•

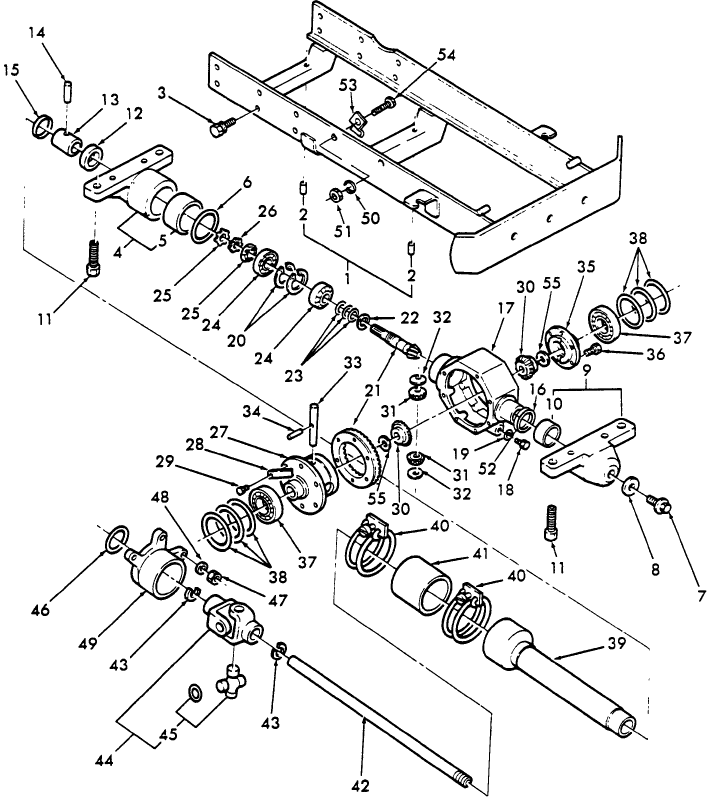

03D01 FRONT DIFFERENTIAL, 4WD, 1100 & 1200

Key	Product Name	Price	Qty
1	SUPPORT	$0.00	Out of stock.
1	SPINDLE	$0.00	Out of stock.
2	PIN BALL (PKG of 2)	$22.50
3	BOLT	$11.25
4	ENVELOPE	$0.00	Out of stock.
5	RING	$77.00
6	O-RING	$6.00
7	PLUG	$15.45
8	WASHER SEALING	$8.00
9	ENVELOPE	$0.00	Out of stock.
9	SUMP	$0.00	Out of stock.
10	BUSHING	$47.40
11	BOLT (PKG of 10)	$72.50
12	SEAL	$20.75
13	COUPLING	$40.75
14	PIN SLOTTED (PKG of 5)	$31.00
15	O-RING (PKG of 5)	$20.00
16	O-RING (PKG of 5)	$30.50
17	CASE	$0.00	Out of stock.
18	PLUG	$14.25	Out of stock.
19	WASHER (PKG of 5)	$24.75
20	RING SNAP (PKG of 5)	$55.00
21	PINION, DRIVE	$0.00	Out of stock.
22	WASHER THRUST (PKG of 5)	$241.00
23	SHIM	$47.47
23	SHIM	$23.25
23	SHIM (PKG of 10)	$142.50
24	TAPERED BEARING	$37.51
25	NUT (PKG of 2)	$48.60
26	WASHER LOCK (PKG of 5)	$39.25
27	WASHER, THRUST	$0.00	Out of stock.
27	HOUSING	$92.43	Out of stock.
28	WASHER LOCK (PKG of 2)	$12.10
29	SCREW CAPTIVE WASHE (PKG of 5)	$16.50	Out of stock.
30	GEAR	$219.00
31	PINION DRIVE	$198.00
32	WASHER, THRUST	$7.28	Out of stock.
33	SHAFT	$43.00
34	SPINDLE (PKG of 5)	$19.50
35	WASHER, THRUST	$0.00	Out of stock.
35	SUMP	$37.69
37	BEARING, BALL	$33.86	Out of stock.
38	SHIM	$9.90
38	SHIM	$9.90
38	SHIM	$12.50
39	TUBE, RIGID	$0.00	Out of stock.
40	COLLAR	$2.35
41	TUBE, RIGID	$0.00	Out of stock.
42	SHAFT	$0.00	Out of stock.
43	RING SNAP (PKG of 10)	$2.80
44	JOINT, UNIVERSAL	$201.24	Out of stock.
45	SPIDER	$152.35
46	O-RING	$1.25	Out of stock.
47	NUT	$0.00	Out of stock.
48	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
49	COVER	$0.00	Out of stock.
50	PROCURE LOCALLY	$0.00	Out of stock.
51	NUT (PKG of 10)	$1.90
52	SHIM	$10.25
52	SHIM	$6.20
53	CLAMP (PKG of 5)	$5.70	Out of stock.
54	BOLT	$0.00	Out of stock.
55	WASHER THRUST	$14.00

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Support Assy., 1100 Includes: Ref. 2, Start Year: 01/01/1979

Product Description

Support Assy., 1100 Includes: Ref. 2, Start Year: 01/01/1979

Additional Information

Part Number	1100-34458
Section	Front Axle/Steering
