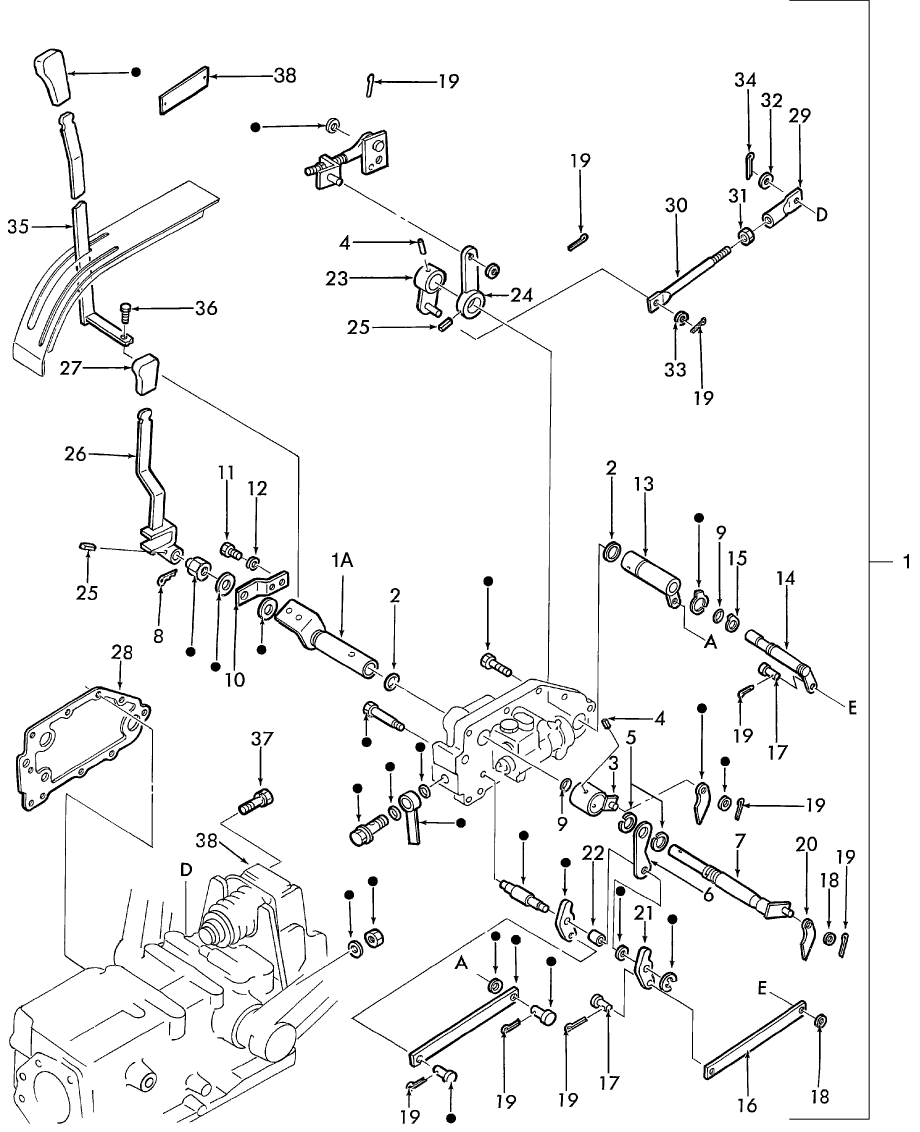

• 05M01 DRAFT CONTROL KIT

Double click on above image to view full picture

More Views

•

05M01 DRAFT CONTROL KIT

Key	Product Name	Price	Qty
1	KIT	$795.29	Out of stock.
1A	SHAFT	$42.20	Out of stock.
2	O-RING (PKG of 5)	$24.25
3	LEVER	$66.50
4	PIN LOCK (PKG of 10)	$29.00
5	SHIM (PKG of 10)	$36.00
6	PLATE	$9.95
7	SHAFT	$115.40
8	PROCURE LOCALLY	$0.00	Out of stock.
9	O-RING (PKG of 10)	$47.00
10	PLATE	$61.25
11	BOLT (PKG of 10)	$9.50
12	WASHER (PKG of 25)	$2.25
13	SHAFT	$28.65
14	SHAFT CONTROL	$409.51
15	RING SNAP (PKG of 15)	$9.75
16	PLATE	$12.00
17	PIN	$7.50
19	PIN, SPLIT (COTTER) (PKG of 10)	$4.30	Out of stock.
20	CAM	$119.00
21	CAM	$14.00
22	COLLAR	$4.50
23	LEVER	$51.25	Out of stock.
24	LEVER	$15.75	Out of stock.
25	PIN (PKG of 10)	$13.50
26	LEVER	$25.37	Out of stock.
27	HANDLE GRIP	$15.60
28	GASKET	$19.00
29	ROD	$20.35	Out of stock.
30	ROD	$23.00
31	NUT (PKG of 20)	$11.60
32	WASHER (PKG of 20)	$3.60	Out of stock.
33	WASHER (PKG of 25)	$35.50	Out of stock.
34	PIN SPLIT (COTTER) (PKG of 10)	$8.90
35	LEVER	$26.16	Out of stock.
36	BOLT (PKG of 10)	$9.90	Out of stock.
37	BOLT (PKG of 5)	$80.00
38	DECAL	$3.27

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Kit, Draft Control, Converts Single Lever Hydraulic Life to 2-Lever Hydraulic Control, Includes: Ref. 1A thru 39, Start Year: 01/01/1987

Product Description

Kit, Draft Control, Converts Single Lever Hydraulic Life to 2-Lever Hydraulic Control, Includes: Ref. 1A thru 39, Start Year: 01/01/1987

Additional Information

Part Number	1620-10869
Section	Hydraulic System
