• 001 CUTTING & LIFT COMPONENTS MODELS 22AB5300/22AB5301/22AB5302

Double click on above image to view full picture

More Views

•

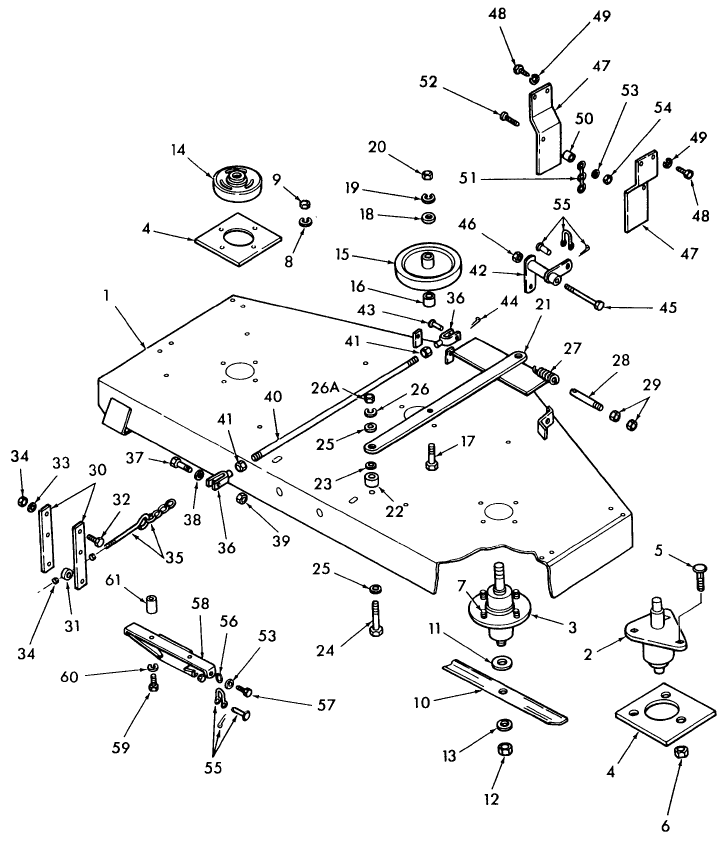

001 CUTTING & LIFT COMPONENTS MODELS 22AB5300/22AB5301/22AB5302

Key	Product Name	Price	Qty
1	DECK, MOWER	$0.00	Out of stock.
1	DECK, MOWER	$0.00	Out of stock.
2	SPINDLE	$0.00	Out of stock.
2	SPINDLE	$0.00	Out of stock.
3	SPINDLE	$0.00	Out of stock.
3	SPINDLE	$0.00	Out of stock.
3	SPINDLE	$0.00	Out of stock.
3	SPINDLE	$0.00	Out of stock.
4	PLATE	$0.00	Out of stock.
4	PLATE	$0.00	Out of stock.
5	PROCURE LOCALLY	$0.00	Out of stock.
7	STUD (PKG of 5)	$76.45
10	KIT	$140.02	Out of stock.
10	KIT	$0.00	Out of stock.
10	KIT	$129.00	Out of stock.
10	KIT	$0.00	Out of stock.
11	WASHER (PKG of 5)	$30.53
12	NUT	$7.59
14	PULLEY	$118.80
14	PULLEY	$0.00	Out of stock.
14	PULLEY	$86.75
15	PULLEY	$73.98
16	SPACER	$17.00
21	ARM	$0.00	Out of stock.
22	SPACER	$0.00	Out of stock.
23	SPACER	$28.60
27	SPRING	$13.25	Out of stock.
28	ROD	$3.30
30	BRACKET	$0.00	Out of stock.
31	BUSHING, DRIVE	$0.00	Out of stock.
35	EYEBOLT	$0.00	Out of stock.
36	CLEVIS	$0.00	Out of stock.
40	ROD	$0.00	Out of stock.
42	TUBE	$0.00	Out of stock.
47	PLATE	$0.00	Out of stock.
48	BOLT	$0.00	Out of stock.
49	WASHER LOCK (PKG of 5)	$11.50
50	SPACER	$0.00	Out of stock.
55	KIT	$0.00	Out of stock.
56	LINK, CONNECTING	$0.00	Out of stock.
58	PLATE	$0.00	Out of stock.
60	WASHER LOCK (PKG of 25)	$7.15
61	SPACER	$0.00	Out of stock.
59	BOLT (PKG of 5)	$13.48

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Deck Assy., 48" Mower

Product Description

Deck Assy., 48" Mower, 916B-SERIES

Additional Information

Part Number	916B-SERIES-32706
