• 03A02 AXLE, FRONT, 2WD, 1300 & 1500

Double click on above image to view full picture

More Views

•

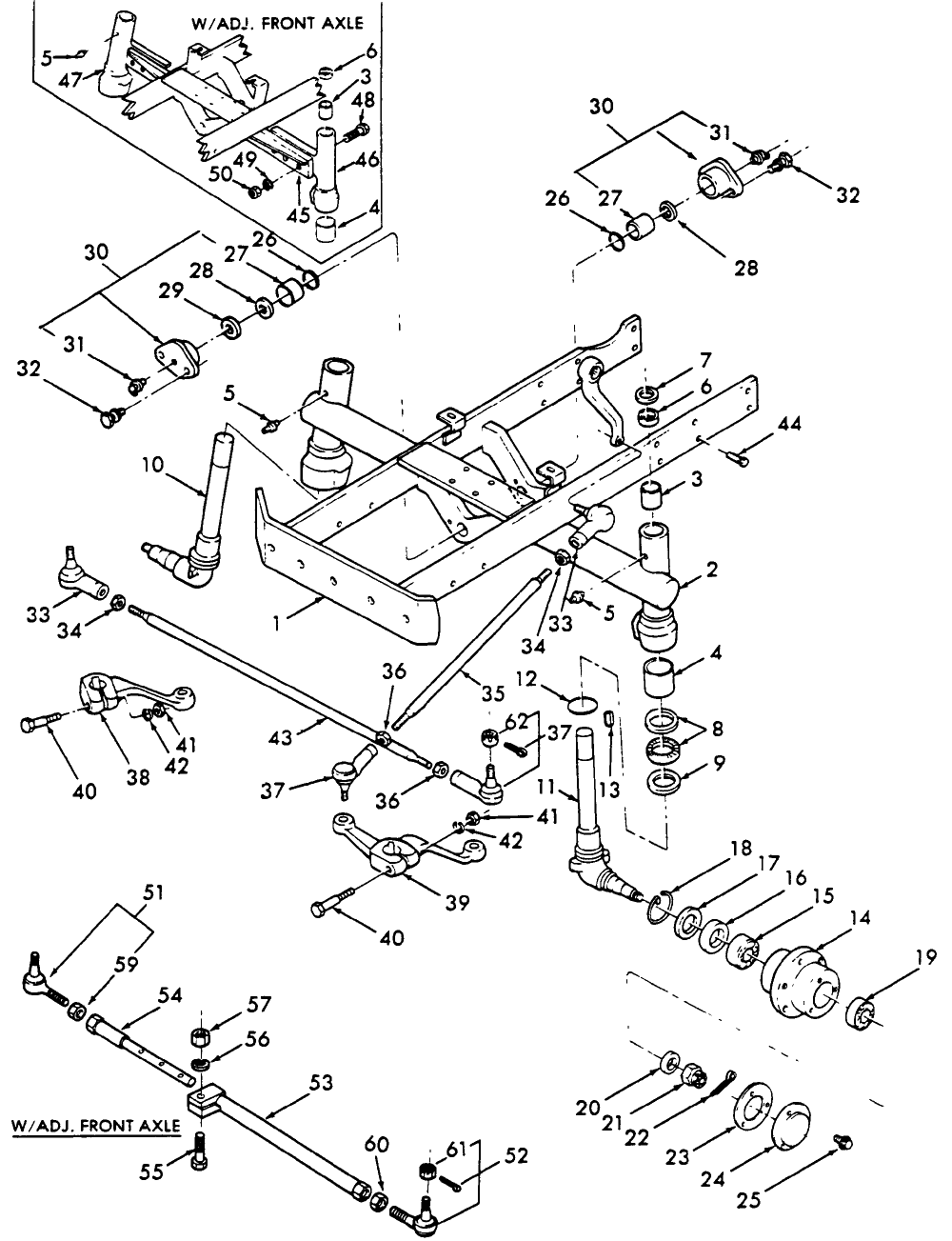

03A02 AXLE, FRONT, 2WD, 1300 & 1500

Key	Product Name	Price	Qty
1	SPINDLE	$0.00	Out of stock.
1	AXLE, FRONT	$0.00	Out of stock.
2	SHAFT	$0.00	Out of stock.
3	BUSHING DRIVE	$33.60
4	BUSHING DRIVE	$33.00
5	NIPPLE LUBE	$5.50
5	NIPPLE LUBE (PKG of 5)	$37.00
6	SEAL	$0.00	Out of stock.
7	SHIM	$7.65
8	BEARING ASSY	$45.75
9	WASHER	$18.25
10	PIN	$182.76	Out of stock.
11	PIN	$90.70
12	O-RING (PKG of 5)	$36.25
13	KEY (PKG of 5)	$6.80
14	HUB	$171.48	Out of stock.
15	BEARING ASSY	$26.00	Out of stock.
16	KIT SEALS	$69.25
17	SPACER (PKG of 5)	$61.25
18	RING SNAP (PKG of 10)	$73.00
19	TAPERED BEARING	$37.51
20	SPACER	$14.00
21	NUT SLOTTED (PKG of 5)	$30.50
22	PROCURE LOCALLY	$0.00	Out of stock.
23	GASKET	$8.70
24	COVER	$17.50	Out of stock.
25	BOLT (PKG of 10)	$9.50
26	O-RING (PKG of 5)	$23.50
28	WASHER THRUST	$10.15
29	SHIM (PKG of 10)	$7.60
30	SUMP	$0.00	Out of stock.
31	NIPPLE LUBE (PKG of 5)	$16.25
32	SCREW CAPTIVE WASHE (PKG of 5)	$25.25
33	END ASSY TRACK ROD	$172.80
34	NUT (PKG of 5)	$32.50
35	SPINDLE	$0.00	Out of stock.
35	ROD	$0.00	Out of stock.
36	NUT (PKG of 5)	$37.25
37	END ASSY, TRACK ROD	$0.00	Out of stock.
38	ARM	$0.00	Out of stock.
38	ARM	$0.00	Out of stock.
39	NUT	$0.00	Out of stock.
39	ARM	$28.50	Out of stock.
40	BOLT (PKG of 5)	$18.50
41	NUT (PKG of 30)	$36.00
42	WASHER LOCK (PKG of 50)	$21.50
43	ROD	$25.50
44	BOLT (PKG of 10)	$72.50
45	SHAFT	$0.00	Out of stock.
46	SHAFT	$0.00	Out of stock.
47	SHAFT	$0.00	Out of stock.
48	BOLT (PKG of 2)	$15.20
49	WASHER LOCK (PKG of 10)	$2.50
50	NUT (PKG of 10)	$17.50
51	BALL JOINT	$61.75	Out of stock.
52	END ASSY TRACK ROD	$59.75	Out of stock.
53	LINK, CONNECTING	$0.00	Out of stock.
54	LINK, CONNECTING	$0.00	Out of stock.
55	BOLT	$5.05
56	WASHER LOCK (PKG of 25)	$6.50
57	NUT (PKG of 20)	$11.60
58	PLUG (PKG of 2)	$9.00
59	NUT (PKG of 5)	$59.50
60	NUT (PKG of 5)	$38.75
61	NUT SLOTTED (PKG of 5)	$19.75
62	NUT (PKG of 5)	$20.00

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Support, 1300, Start Year: 01/01/1979

Product Description

Support, 1300, Start Year: 01/01/1979

Additional Information

Part Number	1500-34447
Section	Front Axle/Steering
