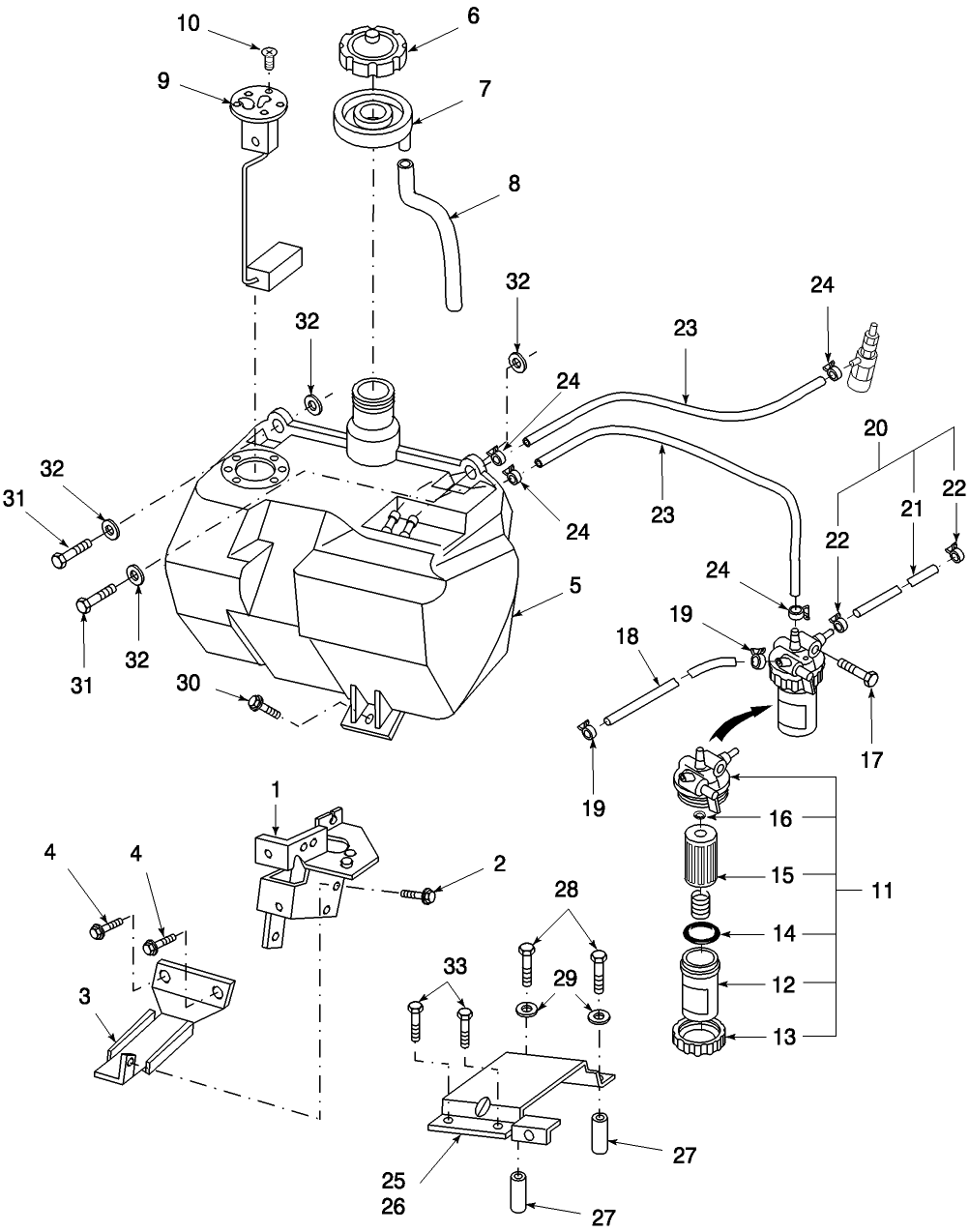

09A01 FUEL TANK & RELATED PARTS

Key	Product Name	Price	Qty
1	BRACKET	$119.00
2	BOLT (PKG of 10)	$8.10
3	SUPPORT	$46.75
4	BOLT (PKG of 10)	$6.70
5	TANK	$0.00	Out of stock.
5	TANK	$260.34	Out of stock.
6	CAP	$44.25
7	COVER	$41.00
8	TUBE	$14.58
9	GAUGE	$138.00
10	SCREW (PKG of 10)	$8.90
11	FILTER ASSY	$18.57	Out of stock.
12	CUP	$17.00	Out of stock.
13	NUT	$9.91	Out of stock.
14	O-RING (PKG of 5)	$14.00
15	FILTER, FUEL	$8.07	Out of stock.
16	O-RING (PKG of 10)	$5.30
17	BOLT (PKG of 10)	$33.50
18	PIPE	$19.60
19	CLIP	$0.00	Out of stock.
20	TUBE	$35.75
21	HOSE	$52.25
22	CLAMP (PKG of 5)	$20.25
23	HOSE	$42.90
24	CLAMP HOSE (PKG of 5)	$19.75
25	HOLDER	$33.18
26	SUPPORT	$25.00
27	SPACER	$3.65
28	BOLT (PKG of 5)	$29.75
29	WASHER (PKG of 25)	$35.50	Out of stock.
30	BOLT (PKG of 5)	$25.50
31	BOLT (PKG of 5)	$17.00
32	WASHER	$0.90
33	BOLT (PKG of 5)	$28.00

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Bracket

Product Description

Bracket

Additional Information

Part Number	TC21D-386226
Section	Fuel System
